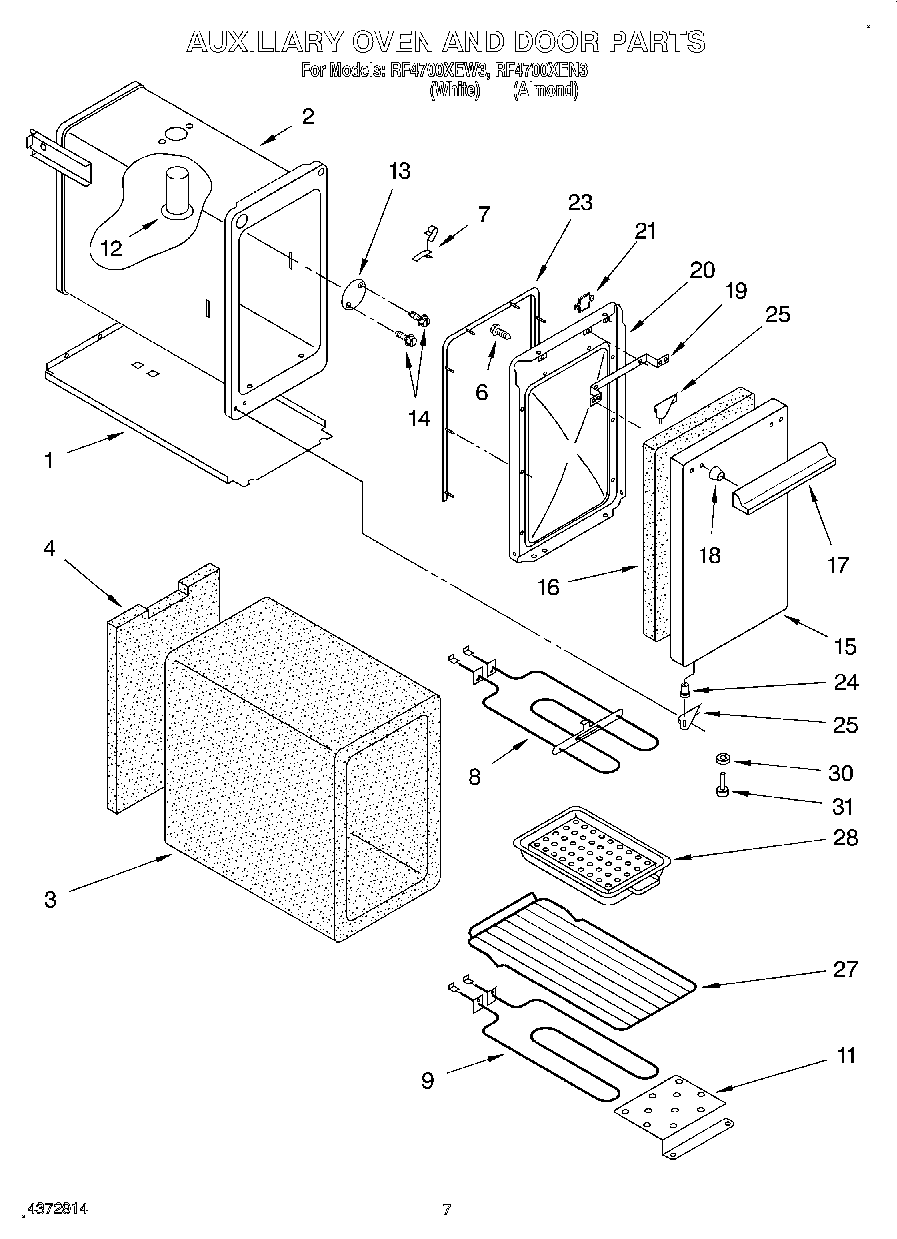

RF4700XEW3 04 – AUXILIARY OVEN AND DOOR

Products

Position	Product
1	Panel, Bottom
1	WPL 834649
2	Liner, Auxiliary Oven
2	Screw, 10-24 x 1/2 (3)
3	Insulation, Oven Wrap
4	Insulation, Oven Back
6	Screw (2)
7	Clip, Thermo Bulb
8	Element, Broil
9	Element, Bake
11	Shield, Bake Unit
11	Unit Bake (Screw, 10-24 x 1/2 (2))
12	Vent Tube
13	Plate, Cover
14	Screw, 10-24 x 3/8 (2)
15	Panel, Oven Door (Auxiliary) (Almond)
15	Panel, Oven Door (Auxiliary) (White)
16	Insulation, Aux. Oven Door
17	Screw
17	Handle, Door
18	Spacer, Handle (2)
19	Spacer, Door
20	Liner, Door
21	Latch, Door Magnetic
23	Gasket, Door
24	Spacer, Hinge (2) Pin
25	Screw 10-24 x 1/2
25	Hinge, Oven Door (Auxiliary) (Bottom)
25	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
25	Hinge, Oven Door (Auxiliary) (Top)
27	Rack, Oven Regular
28	Kit, Broiler Pan And Grid
30	Washer, Rubber
31	Rivet (2)
