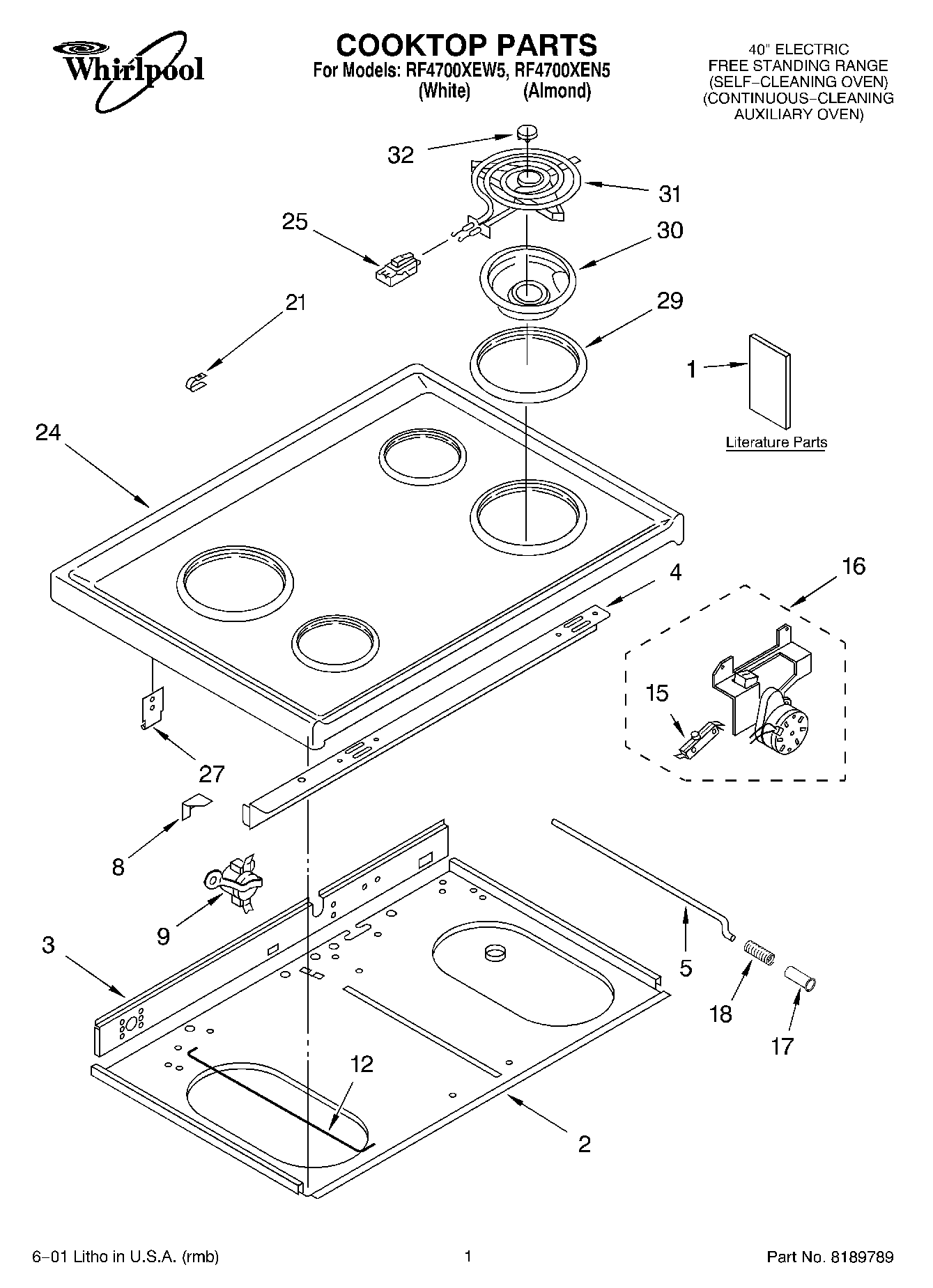

RF4700XEW5 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Use & Care Guide)
2	Panel, Sub Top
2	Washer (2)
3	Shield, Wiring
4	Bracket, Cooktop
4	Screw 10-24 x 1/2
5	Rod, Latch
8	Bracket, Filler
9	Thermostat, Safety
12	Rod, Support
15	Switch, Latch
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
16	Motor, Latch (Complete)
17	Bushing, Latch
18	Spring, Latch
21	WPL 868136
24	Cooktop
24	Cooktop (Almond)
25	Support (4)
25	BURNER RECEPTACLE KIT
27	Bracket, Hinge Pin ((RH))
27	Bracket, Hinge Pin ((LH))
27	Screw, 10-24 x 1/2 (3)
29	Ring, Trim (8“ (2))
29	Ring, Trim (6“ (2))
30	Pan, Surface (8“ (2))
30	Pan, Surface (6“ (2))
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	Medallion
