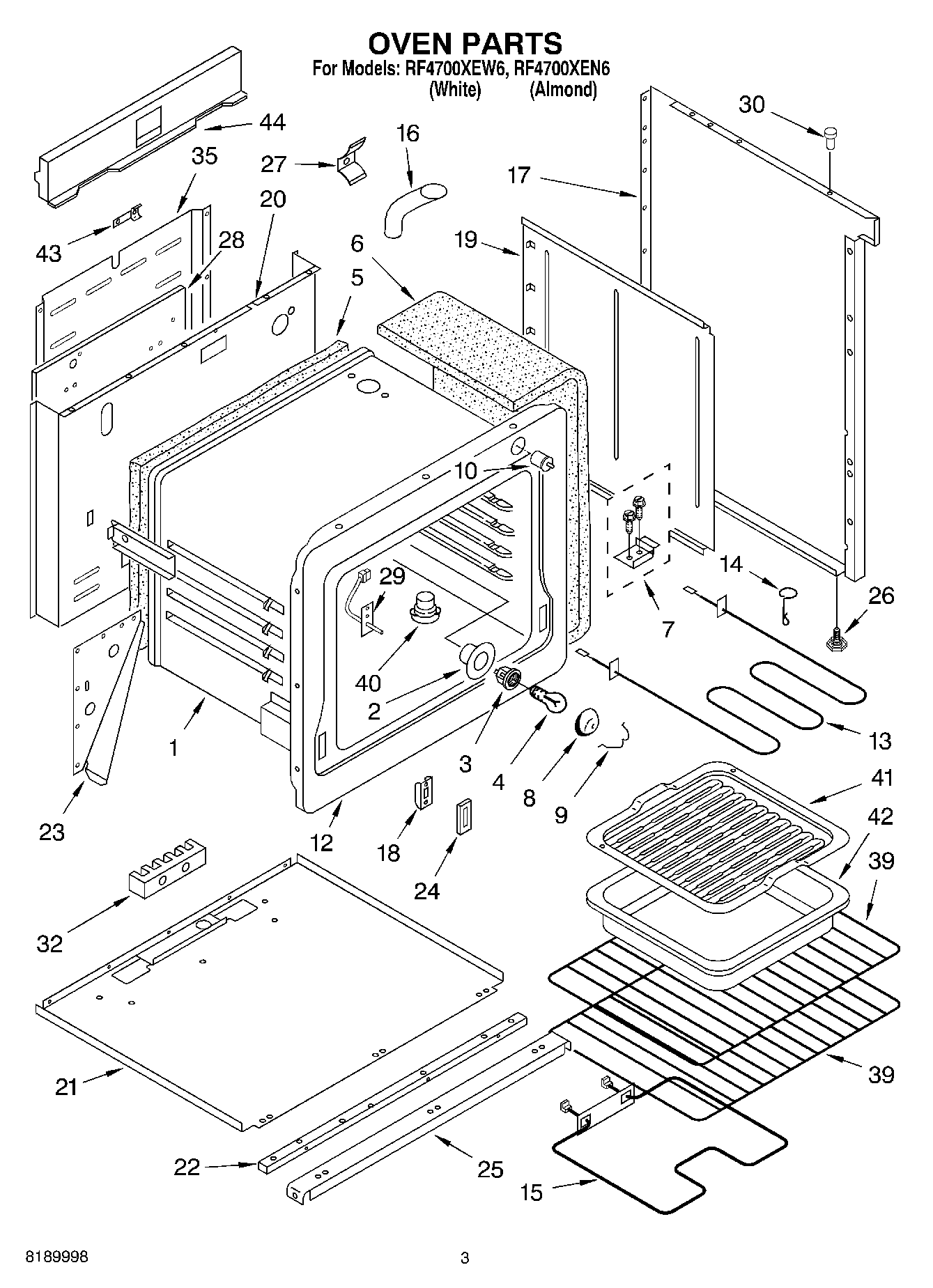

| 1 | Oven Body |
| 2 | Housing, Light |
| 3 | W10856866 Whirlpool Light Socket |
| 4 | RANGE ONLY 40W 120V APPL BULB |
| 5 | Insulation, Oven Back |
| 6 | Insulation, Oven Wrap |
| 7 | Kit, Anti-Tip |
| 8 | Lens, Light |
| 9 | Retainer, Lens |
| 10 | WPL 4372841 |
| 12 | Frame, Front |
| 13 | Element, Broil |
| 14 | Support, Broiler Element |
| 15 | Element, Bake |
| 16 | Vent Tube |
| 16 | Unit Bake (Screw, 10-24 x 1/2 (2)) |
| 17 | Panel, Body-Side (White L.H.) |
| 17 | Panel, Body-Side (Almond R.H.) |
| 17 | Panel, Body-Side (Almond L.H.) |
| 17 | Panel, Body-Side (White R.H.) |
| 18 | Channel, Hinge (2) |
| 19 | Retainer, Insulation |
| 20 | Back, Range |
| 21 | Panel, Bottom |
| 22 | Support, Oven |
| 23 | Gusset, Rear (L.H.) |
| 23 | Gusset, Rear (R.H.) |
| 24 | Cover, Hinge |
| 25 | Channel, Support |
| 26 | Screw, Leveling (4) |
| 27 | Spring, Oven |
| 28 | Panel, Back |
| 29 | Probe, Oven Temp |
| 30 | Bumper, Cooktop (5) |
| 32 | Hex Nut, 10-32 (6) |
| 32 | WP8203546 Whirlpool Terminal Block |
| 32 | WPL 834649 |
| 35 | Cover, Back |
| 35 | Screw, 10-24 x 1/2 (3) |
| 39 | Rack, Oven |
| 40 | Offset |
| 40 | Tube, Adaptor |
| 41 | Grid, Broiler Pan |
| 42 | Pan, Broiler |
| 43 | Strap, Ground |
| 43 | Screw,10-24 x 1/2 |
| 44 | Deflector, Air |
