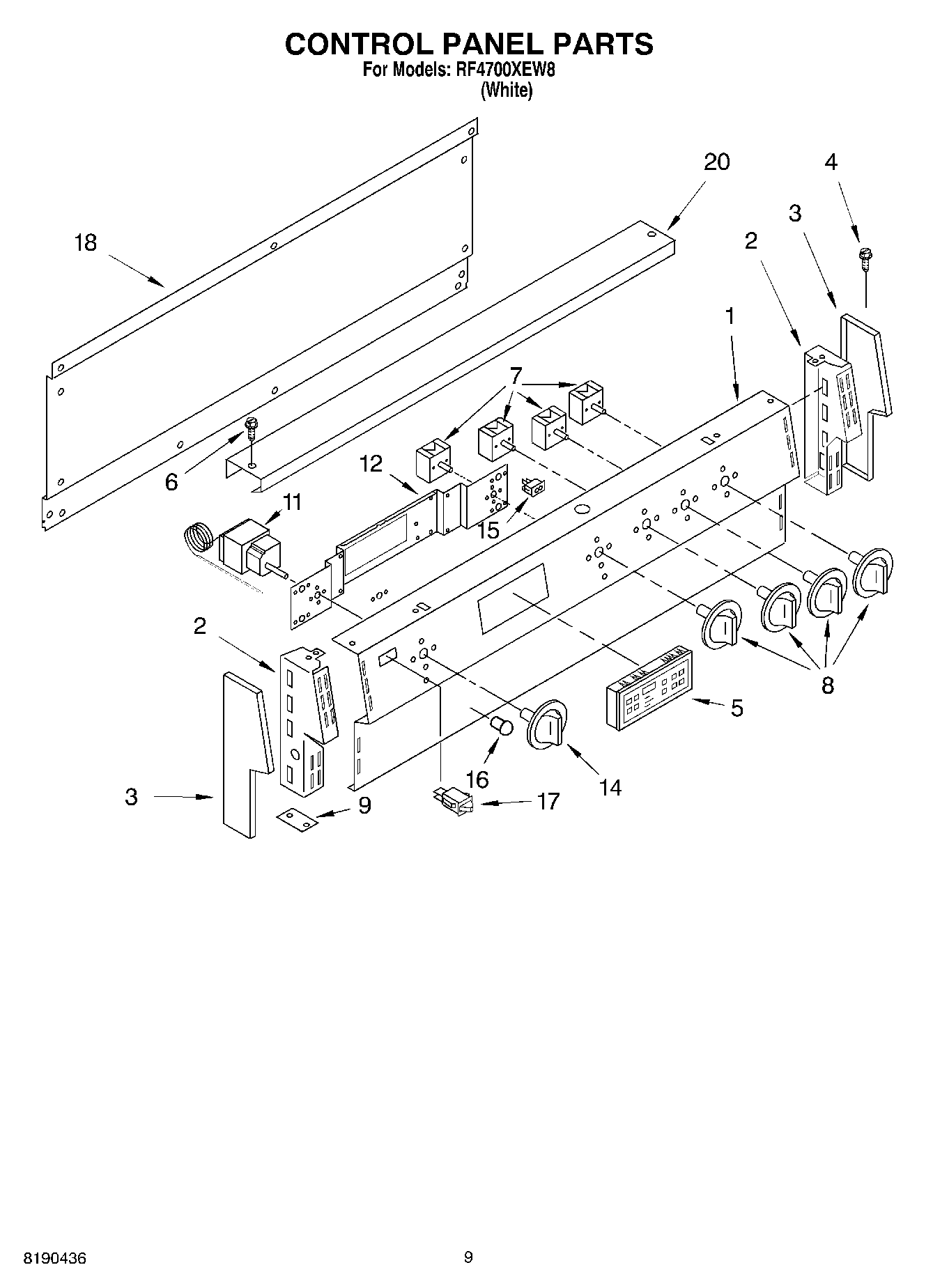

RF4700XEW8 05 – CONTROL PANEL PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	1
	Grease
	WPL 8316781
	WPL ARI123240A
	WPL ARI123239A
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	350942 Whirlpool Spray Paint
	WPL 799832
	WPW10208653 Whirlpool Insulation
	WPL ARI123241A
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
1	Panel, Backguard (White)
2	Bracket, Endcap (L.H.)
2	Bracket, Endcap (R.H.)
3	End Cap (R.H. White)
3	End Cap (L.H. White)
4	Screw, Endcap 8-18 x 1/2 (4)
5	Overlay, Clock
5	Clock, Timer
6	Screw
7	Switch, Infin. (Use W/8“ Element)
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infin. (Use W/6“ Element)
8	Knob, Control (4)
9	Spacer, End Cap Mtg
11	Thermostat, Oven (Auxiliary Oven)
11	Screw, 8-32 x 3/16 (2)
12	Bracket, Clock Mtg
12	Screw
14	Knob, Control Auxiliary Oven
14	Screw Auxiliary Oven
15	Light, Indicator (Indicator, Oven (2))
16	Lens, Indicator
17	Switch, Rocker
18	Cover, Backguard
20	Trim, Backguard
