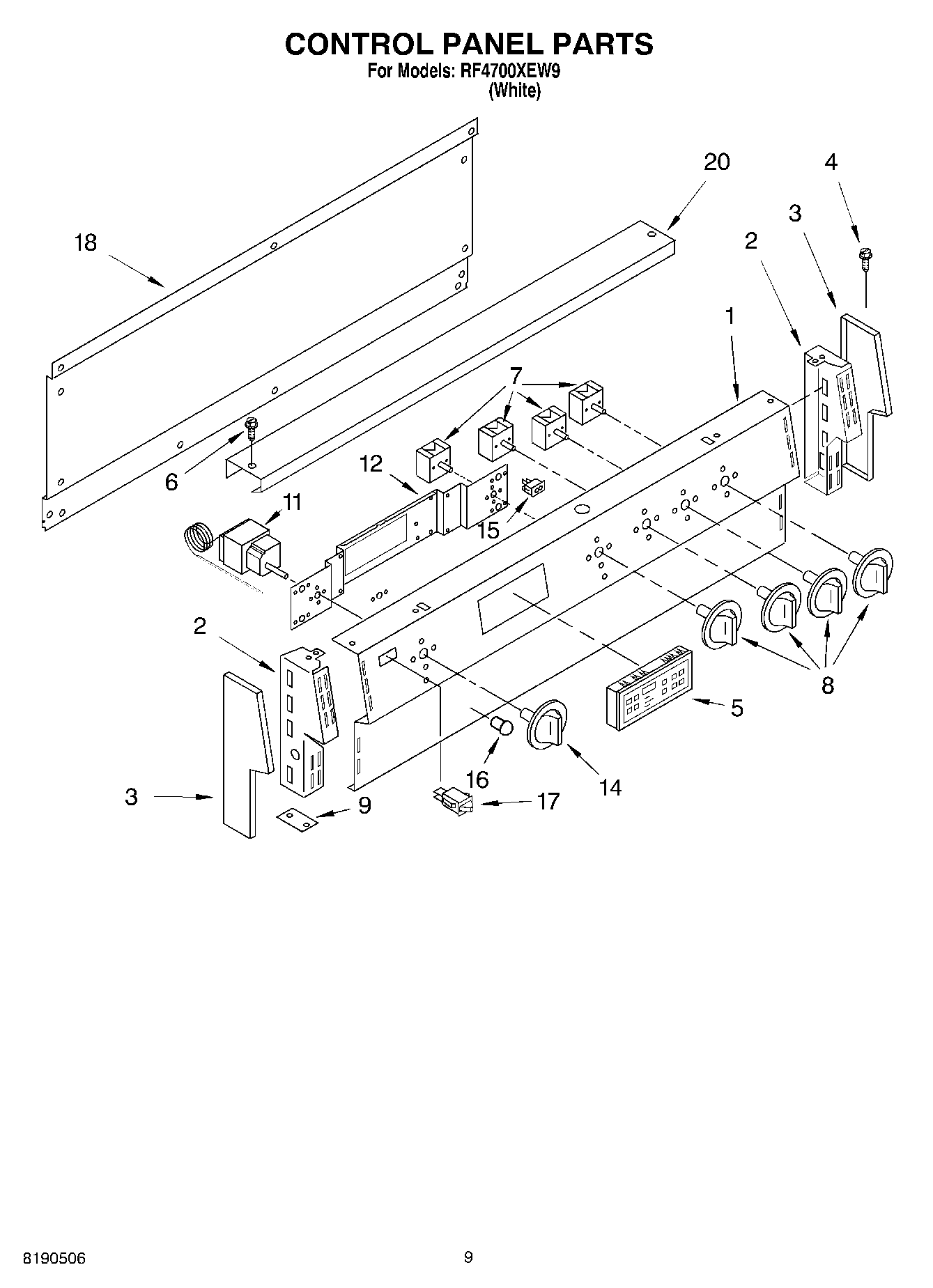

RF4700XEW9 05 – CONTROL PANEL PARTS, OPTIONAL PARTS

RF4700XEW9 05 – CONTROL PANEL PARTS, OPTIONAL PARTS

Written by

in

RF4700XEW9 05 – CONTROL PANEL PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
1
Grease
WPL 8316781
WPL ARI123244A
WPL ARI123243A
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
350942 Whirlpool Spray Paint
WPL 799832
WPW10208653 Whirlpool Insulation
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
WPL ARI123242A
1Panel, Backguard
2Bracket, Endcap (R.H.)
2Bracket, Endcap (L.H.)
3End Cap (R.H. White)
3End Cap (L.H. White)
4Screw, Endcap 8-18 x 1/2 (4)
5Overlay, Clock
5Clock, Timer
6Screw
7Switch, Infin. (Use W/8“ Element)
7Switch, Infin. (Use W/6“ Element)
7WP486579 Whirlpool Air Conditioner Screw
8Knob, Control (4)
9Spacer, End Cap Mtg
11Thermostat, Oven (Auxiliary Oven)
11Screw, 8-32 x 3/16 (2)
12Screw
12Bracket, Clock Mtg
14Screw Auxiliary Oven
14Knob, Thermostat
15Light, Indicator (Indicator, Oven (2))
16Lens, Indicator
17Switch, Rocker
18Cover, Backguard
20Trim, Backguard
