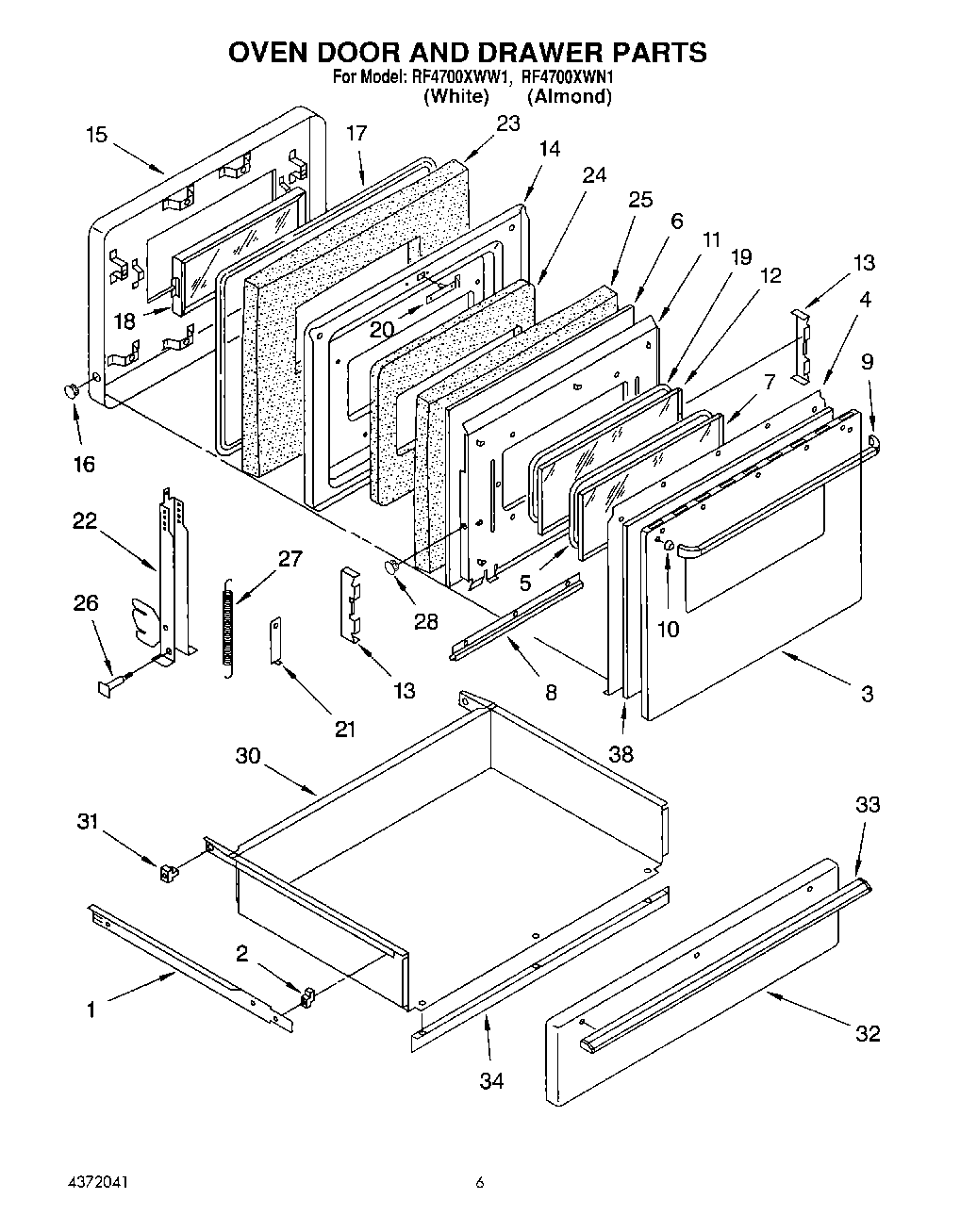

RF4700XWN1 03 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Rail, Drawer (R.H.)
1	Rail, Drawer (L.H.)
2	WPL 834649
2	Guide, Front (2)
3	panel, oven door (main) (white)
3	Panel, Oven Door (Main) (Almond)
4	Panel, Insulator
5	“J“ Molding Outer Glass
6	Foil, Aluminum
7	Glass, Outer
8	WP486579 Whirlpool Air Conditioner Screw
8	Retainer, Glass (2)
9	Handle, Door (Main)
10	Screw, 10-24 x 5/8 (2)
10	Spacer, Handle (2)
11	Panel, Air Wash
12	Glass, Inner
13	Retainer, Glass
14	Liner, Oven Door
15	Baffle Weldment
16	Plug Button 3/16“ (2)
17	Seal, Oven Door
18	Window Assembly
19	Seal, Window
20	Washer
20	Screw 10-24 x 1/2
20	Strike Assembly
21	Retainer, Door
22	Assy, Door Hinge (R.H.)
22	Screw
22	Assy, Door Hinge (L.H.)
22	Washer (2)
23	Insulation, Baffle
24	Insulation, Liner
25	Insulation, Airwash
26	Pin, Hinge (2)
27	Spring, Door (2)
28	Plug Button
30	Drawer
31	Guide, Drawer (Back)
32	Panel, Drawer
32	Panel, Drawer (Almond)
32	Screw, 10-24 x 1/2 (3)
33	Handle, Dr
33	WPL 877903
34	WP965173 Whirlpool Dishwasher Screw
34	WPL 866136
38	WPL 4372032
