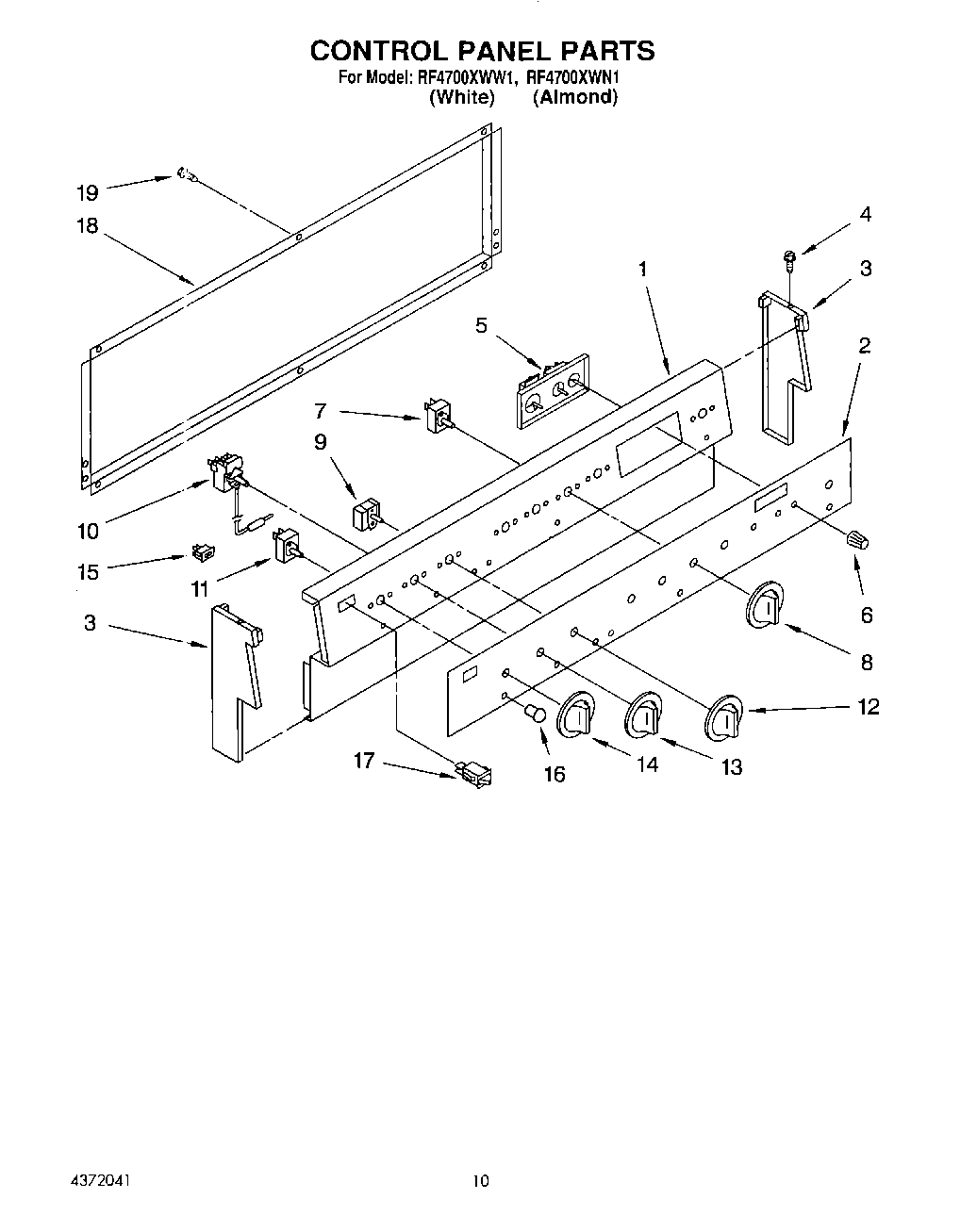

RF4700XWN1 05 – CONTROL PANEL, LIT/OPTIONAL

RF4700XWN1 05 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RF4700XWN1 05 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT816125
	WPL LIT3149507
	WPL LIT4372041
	WPL LIT816451
	WPL LIT816452
1	Panel, Backguard (White)
1	Panel, Backguard (Almond)
2	Panel, Overlay
3	End Cap (R.H.)
3	End Cap (L.H.)
4	Screw, 8-18 x 1/2 (4)
5	Clock, Timer
6	Knob, Clock
7	WP486579 Whirlpool Air Conditioner Screw
7	W10900107 Whirlpool Oven Surface Element Switch
8	Knob, Control (4)
9	Switch, Selector (Main Oven)
10	Thermostat, Oven (Main Oven)
11	Thermostat, Oven (Auxiliary Oven)
11	Screw, 8-32 x 3/16 (2)
12	Knob, Selector
13	Knob, Control Main Oven
14	Knob, Control Auxiliary Oven
15	Light, Indicator (Indicator, Oven (2))
15	Light, Indicator (Indicator, Surface)
15	Light, Indicator (Indicator, Lock)
16	Lens, Indicator (4)
17	Switch, Oven Light
18	Cover, Backguard
19	Golden Harvest
19	WPL 261832
19	242831 Whirlpool Oven Wire
19	WPL 799351
19	Grease
19	Leveler (Thinner) (2oz.)
19	Enamel, New Avocado (1 Qt. Uncut)
19	Enamel, Coffee (1 Qt. Uncut)
19	1
19	Wire, 25` Roll (Black 14 Ga.)
19	350930 Whirlpool White Spray Paint
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	WPL 799832
19	511873 Whirlpool Refrigerator Paint
19	350942 Whirlpool Spray Paint
19	WP308544 Whirlpool Screw
19	Golden Harvest (Uncut)
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25“ Roll (White 14 GA.)
19	Wire (14 Ga. 200 c Brown)
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	Touch-Up Oven (1 Oz.)
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	350956 Whirlpool Spray Assembly
