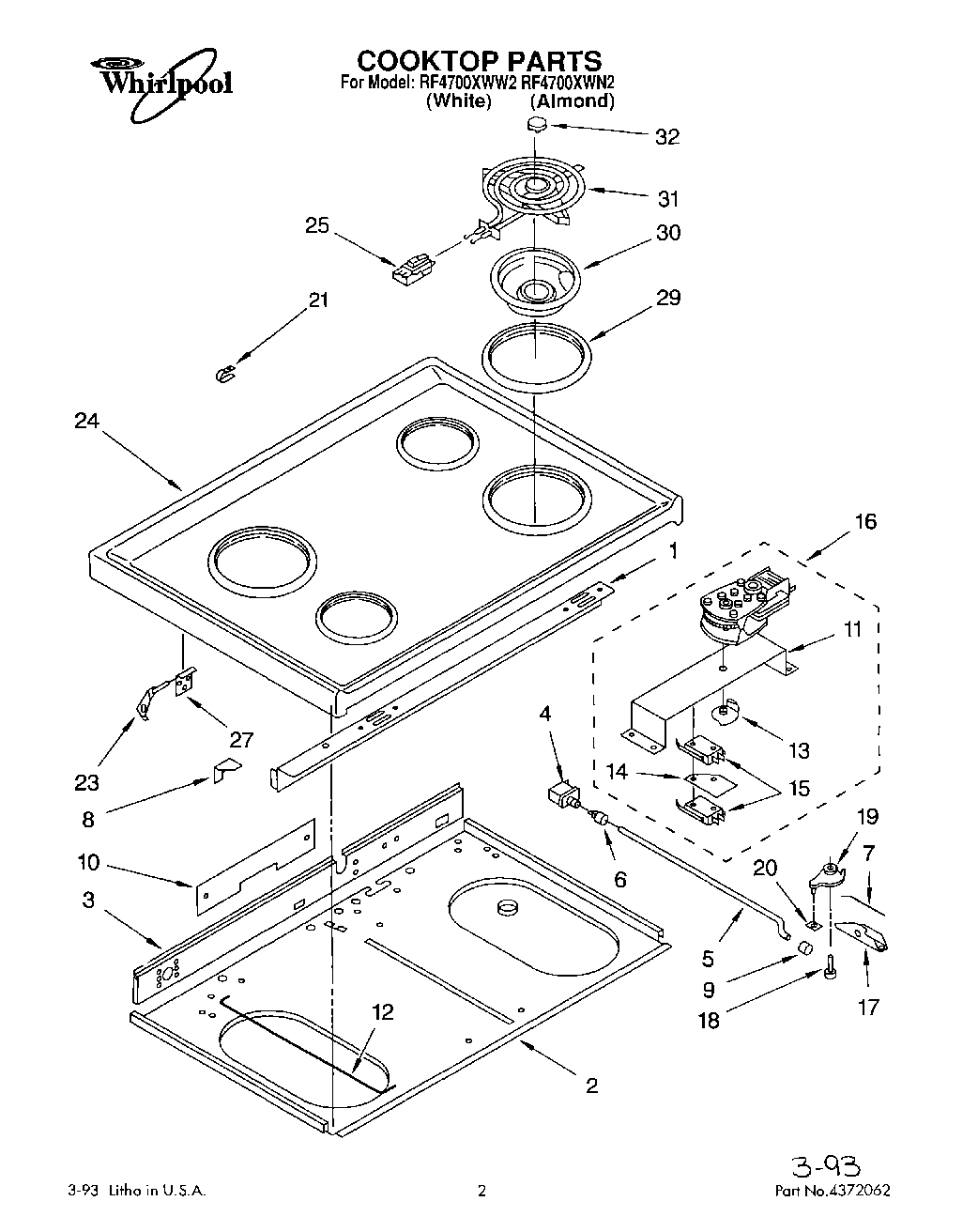

RF4700XWN2 01 – COOKTOP

Products

Position	Product
1	Bracket, Cooktop
2	Panel, Sub Top
3	Shield, Wiring
4	WP8283288 Whirlpool Door Switch
5	Rod, Push
6	Cap, Push Rod
7	Bar, Tie
8	Bracket, Filler
9	Cover, Rod End
10	Insulator, Wire Shield
11	Support, Latch Motor
12	Rod, Support
13	Cam, Door Latch (Alternate)
13	Cam, Door Latch (Pin, Spring)
14	Insulator, Limit Switch (3)
15	Switch, Upper Limit (Alternate)
15	Switch, Latch (2)
16	Motor, Door Latch (Complete)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
17	Washer (2)
17	Screw 10-24 x 1/2
17	Base, Latch Motor
18	Stud, Latch
19	Lever, Lock
20	Pushnut, 1/4
21	WPL 868136
23	Bracket, Hinge Pin ((LH))
23	Bracket, Hinge Pin ((RH))
24	Cooktop
24	Cooktop (Almond)
25	BURNER RECEPTACLE KIT
27	Retainer, Hinge Pin (2)
27	Screw, 10-24 x 1/2 (3)
29	Ring, Trim (8“ (2))
29	Ring, Trim (6“ (2))
30	Pan, Surface (6“ (2))
30	Pan, Surface (8“ (2))
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	Medallion
