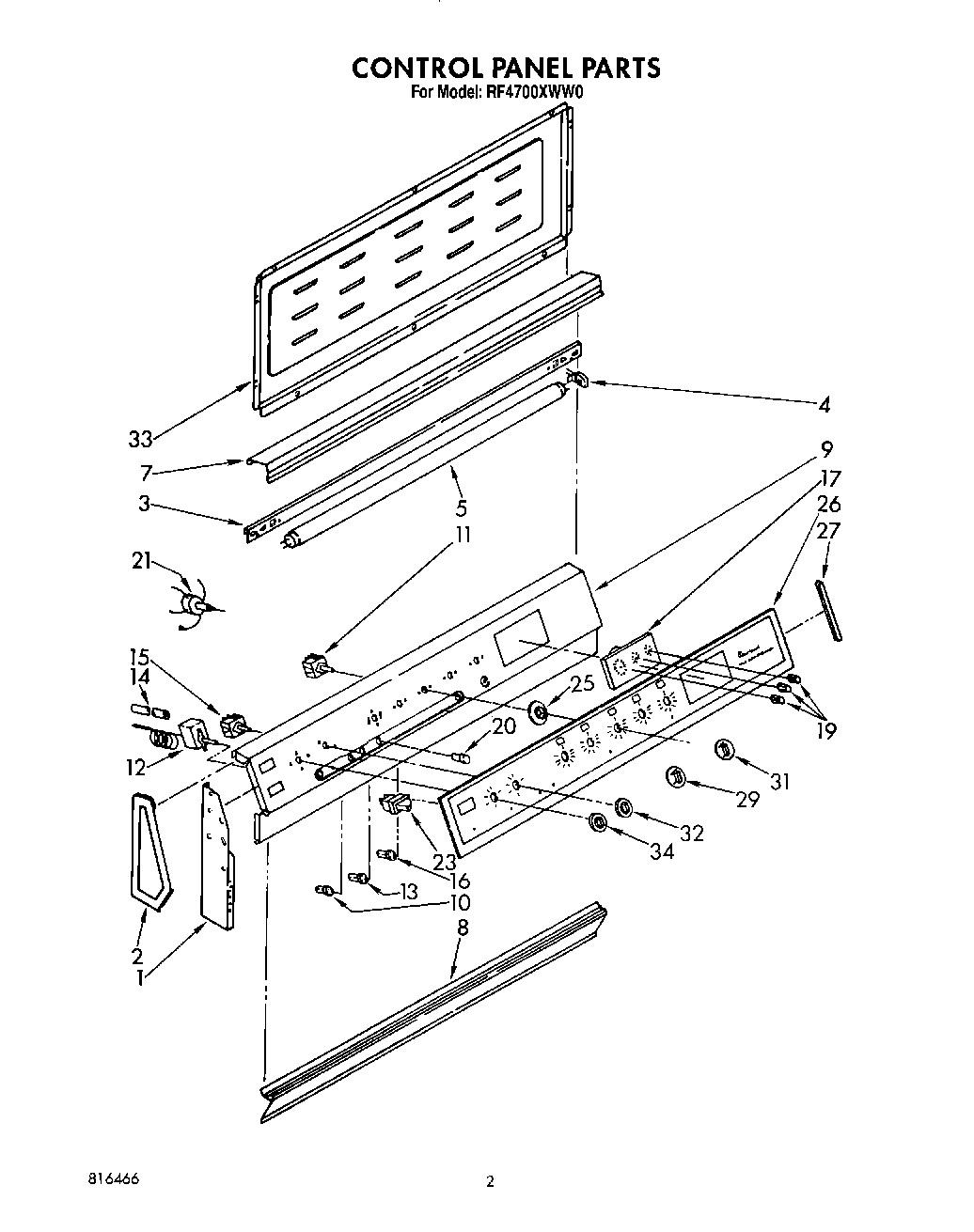

RF4700XWW0 02 – CONTROL PANEL

Products

Position	Product
1	Support, Backguard (L.H.)
1	Support, Backguard (R.H.)
2	End Cap (R.H.)
2	End Cap (L.H.)
2	Nut, Timer (4)
3	Channel, Light Mounting
4	Lampholder (R.H.)
4	Lampholder (L.H.)
4	WPL 487428
5	Light, Fluorescent 33``
7	Shade, Lamp
8	Base, Backguard
9	Panel, Backguard (Almond)
9	Panel, Backguard (White)
10	Light, Indicator (Indicator, Surface)
11	W10900107 Whirlpool Oven Surface Element Switch
11	WP486579 Whirlpool Air Conditioner Screw
12	Thermostat, Oven (Auxiliary Oven)
12	Thermostat, Oven (Main Oven)
13	Light, Indicator (Indicator, Oven (2))
14	Sleeving Insulation
15	Screw, 8-32 x 3/16 (2)
15	Switch, Selector (Main Oven)
16	Light, Indicator (Indicator, Lock)
17	Hex Nut, 10-32 (6)
17	Clock, Timer
19	Knob, Clock
20	WPL 834956
21	Switch, Fluorescent Light
23	Switch, Oven Light
23	WPL 98754
25	Dial, Surface Unit & Griddle (5)
26	Panel, Overlay
27	Trim, Glass (2)
29	Knob, Selector
31	Knob, Control (4)
32	Knob, Control Main Oven
33	Screw, 10-24 x 1/2 (3)
33	Cover, Backguard
34	Knob, Control Auxiliary Oven
