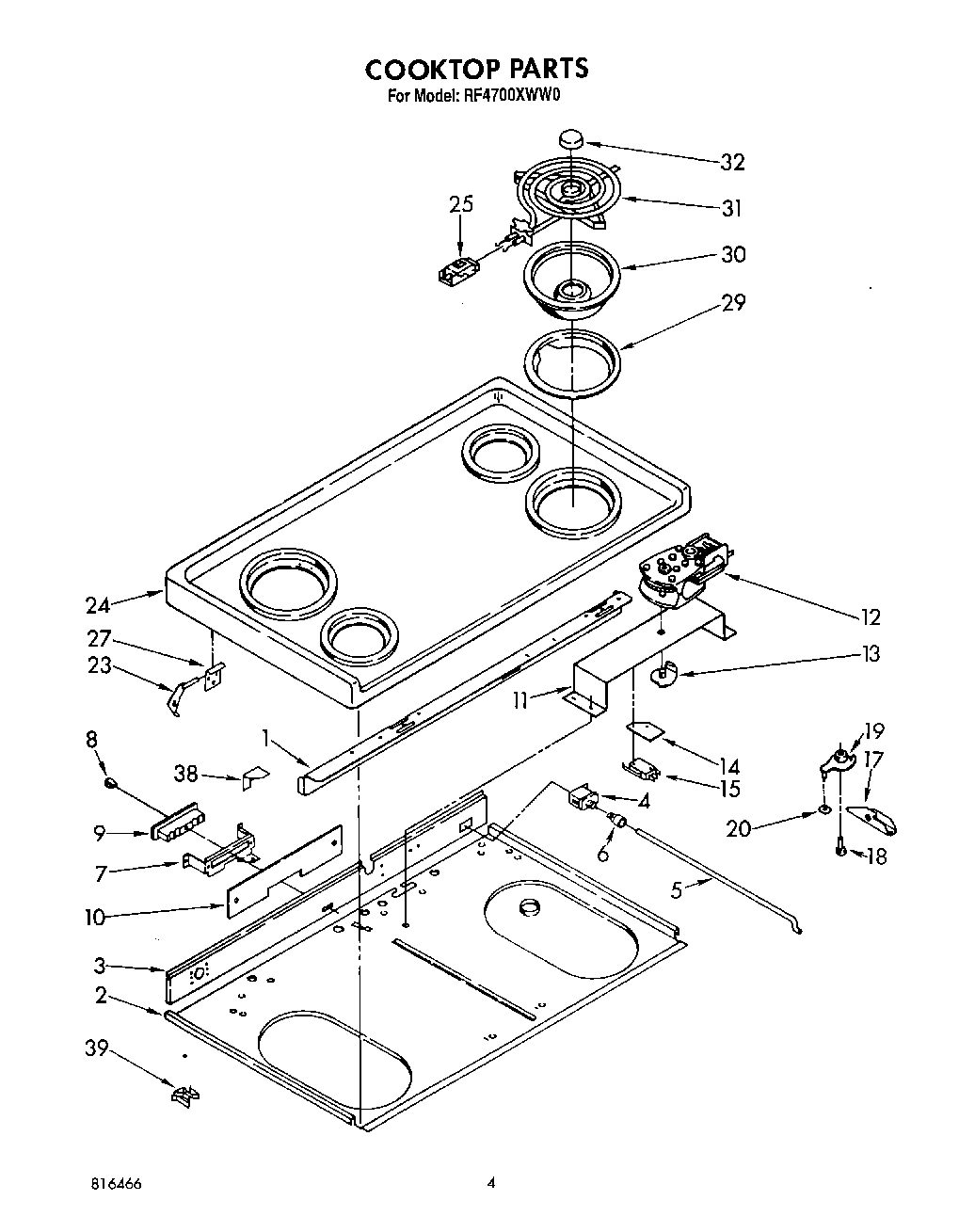

RF4700XWW0 03 – COOKTOP

Products

Position	Product
1	Bracket, Cooktop
2	Panel, Sub Top
3	Shield, Wiring
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
6	Rod End, Switch
7	Bracket, Receptacle
7	Washer, Fiber (2)
7	WPL 834649
8	Terminal, Female (3)
9	Receptacle, Female
9	Washer
10	Insulator, Wire Shield
11	Support, Latch Motor
12	motor, door latch (alternate)
12	Motor (Alternate)
12	Motor (Alternate)
12	Motor, Door Latch (Complete)
12	WPL 273225
13	Cam, Door Latch (Pin, Spring)
13	cam, door latch (alternate)
13	Cam, Door Latch (Alternate)
14	Insulator, Limit Switch (3)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
15	Switch, Upper Limit (Alternate)
17	Screw 10-24 x 1/2
17	Washer (2)
17	Housing, Latch
18	Pin, Hinge (2)
19	Latch, Door
19	alternate
19	Latch, Door
20	Pushnut, 1/4
23	Bracket, Hinge Pin ((RH))
23	Bracket, Hinge Pin ((LH))
24	Cooktop
24	Cooktop (Almond)
25	BURNER RECEPTACLE KIT
25	WP486754 Whirlpool Compactor Screw
27	Retainer, Hinge Pin (2)
29	Ring, Trim (6“ (2))
29	Ring, Trim (8“ (2))
30	Pan, Surface (6“ (2))
30	Pan, Surface (8“ (2))
31	WP660533 Whirlpool Oven 8" Surface Element
31	WP660532 Whirlpool Oven Surface Element
32	WPL 868522
38	Screw, 10-24 x 1/2 (3)
38	Bracket, Filler
39	WP486579 Whirlpool Air Conditioner Screw
39	WPL 816023
