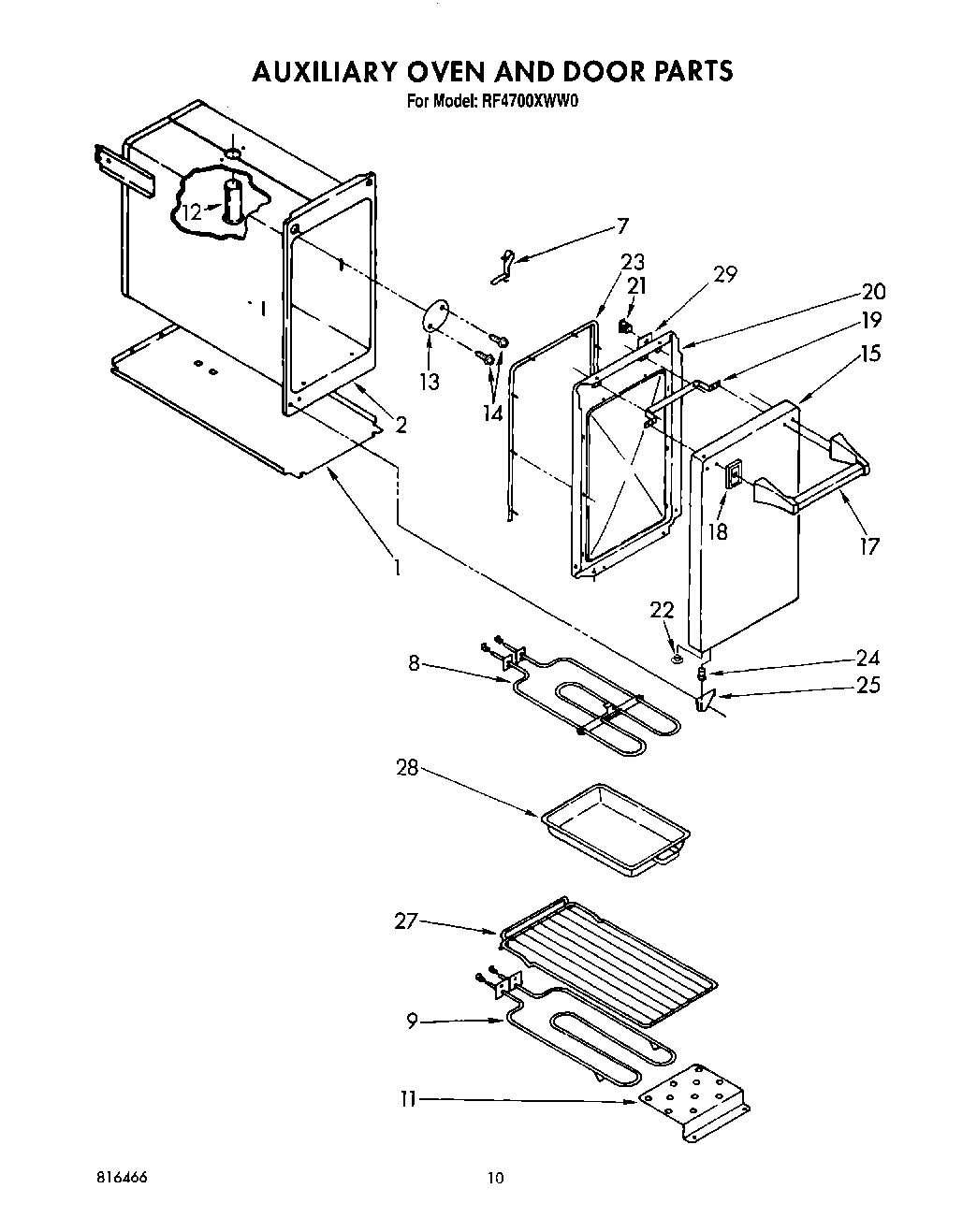

RF4700XWW0 06 – AUXILIARY OVEN AND DOOR, LIT/OPTIONAL

RF4700XWW0 06 – AUXILIARY OVEN AND DOOR, LIT/OPTIONAL

Written by

in

RF4700XWW0 06 – AUXILIARY OVEN AND DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3149507
WPL LIT816452
WPL LIT816125
WPL LIT816466
WPL LIT816451
1Panel, Bottom
1WPL 834649
2Oven, Auxiliary
2Screw, 10-24 x 1/2 (3)
798005642 Whirlpool Clip
8unit, broil (alternate)
8Element, Broil
9unit, bake (alternate)
9Element, Bake
11Unit Bake (Screw, 10-24 x 1/2 (2))
11Shield, Bake Unit
12Vent Tube
13Plate, Cover
14Screw, 10-24 x 3/8 (2)
15panel, oven door (auxiliary) (almond)
15panel, oven door (auxiliary) (white)
17Handle, Door
18Screw, 10-24 x 5/8 (2)
18Spacer, Handle (2)
19Spacer, Door
20Washer (2)
20liner, door
20washer, rubber
21Latch, Door Magnetic
22Button, Plug
23gasket, door (w/clips) (alternate)
23Gasket, Door
24Spacer, Hinge (2) Pin
25hinge, oven door (auxiliary) (bottom)
25Hinge, Oven Door (Auxiliary) (Top)
25Screw 10-24 x 1/2
25Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
27Rack, Oven Regular
28Kit, Broiler Pan And Grid
29350930 Whirlpool White Spray Paint
29Wire (12 Ga. 150 c Black)
29350956 Whirlpool Spray Assembly
2972017 Whirlpool Appliance Touch-Up Paint White
29799344 Whirlpool Refrigerator Paint
29350942 Whirlpool Spray Paint
29WPL 261832
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29Plate, Catch
29WP72107 Whirlpool Touchup
29Almond (Uncut)
29Golden Harvest
29Golden Harvest (Uncut)
29Wire, 25` Roll (Red 14 Ga.)
29Wire (14 Ga. 150 c Yellow)
29Wire (14 Ga. 150 c Orange)
29Wire (14 Ga. 150 c Green)
29Wire (14 Ga. 150 c Brown)
29Wire (14 Ga. 150 c Blue)
29Touch-Up Oven (1 Oz.)
29Paint, Spray 13 Oz. (Avocado)
29paint, spray 13 oz. (coffee)
29Paint, Touch-Up 1/2 Oz. (Coffee)
2972109 Whirlpool Dacor Avocado Touch-Up Paint
29285006 Whirlpool Spray
2918 Ga. 80~c Rating (Red)
29Wire (14 Ga. 200 c Brown)
29242831 Whirlpool Oven Wire
29511873 Whirlpool Refrigerator Paint
29WPL 799832
29WPW10208653 Whirlpool Insulation
29FOIL, ALUMINUM OVEN (18“ X 25 )
29Wire, 25` Roll (Black 14 Ga.)
29WPL 799351
29Grease
29Leveler (Thinner) (2oz.)
29Enamel, New Avocado (1 Qt. Uncut)
29Enamel, Coffee (1 Qt. Uncut)
291
29Wire, 25“ Roll (White 14 GA.)
