RF4700XWW3 02 – OVEN

RF4700XWW3 02 – OVEN

Written by

in

RF4700XWW3 02 – OVEN

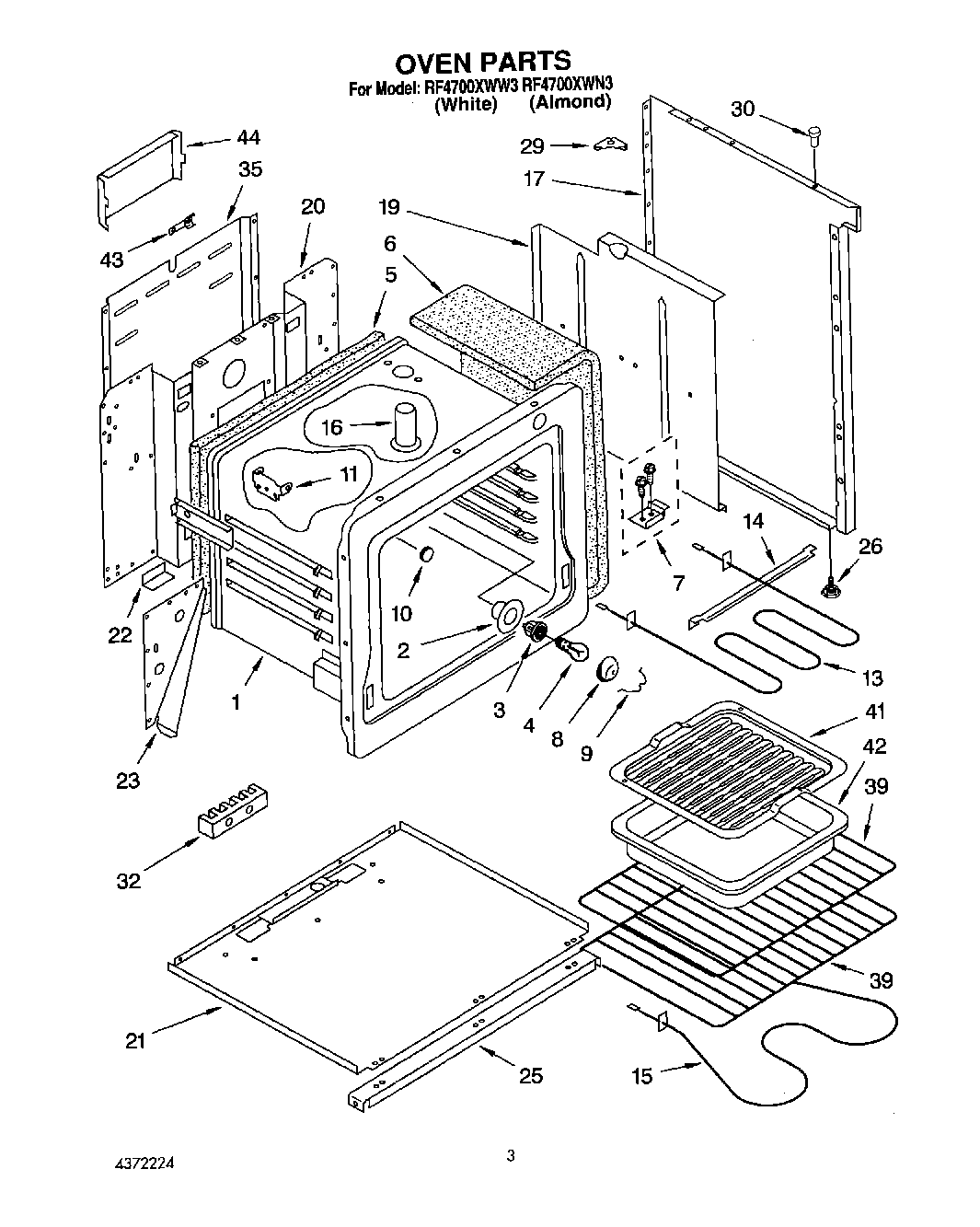

Products

Position	Product
1	Oven
2	Housing, Oven Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Insulation, Oven Back
6	Insulation, Oven Wrap
7	Kit, Anti-Tip
8	Lens, Light
9	Retainer, Lens
10	Plug, Button
10	Button, Plug 3/4“ (2)
11	Bracket, Thermobulb
13	Element, Broil
14	Hanger, Broil Unit
15	WP865940 Whirlpool Bake Element
16	Unit Bake (Screw, 10-24 x 1/2 (2))
16	Vent Tube
17	Panel, Body-Side (Almond L.H.)
17	Panel, Body-Side (Almond R.H.)
17	Panel, Body-Side (White L.H.)
17	Panel, Body-Side (White R.H.)
19	Retainer, Insulation
20	Back, Range
21	Panel, Bottom
22	Support, Gusset
23	Gusset, Rear (R.H.)
23	Gusset, Rear (L.H.)
25	Channel, Support
26	Screw, Leveling (4)
29	Gusset, Backguard (2)
30	Bumper, Cooktop (5)
32	WPL 834649
32	Hex Nut, 10-32 (6)
32	WP8203546 Whirlpool Terminal Block
35	Screw, 10-24 x 1/2 (3)
35	Cover, Back
39	Rack, Oven (2)
39	Rack, Oven (Offset)
41	Grille, Br
42	WPL 4372060
43	Screw,10-24 x 1/2
43	Strap, Ground
44	WPL 4371333
