RF49*R3

RF49*R3

Products

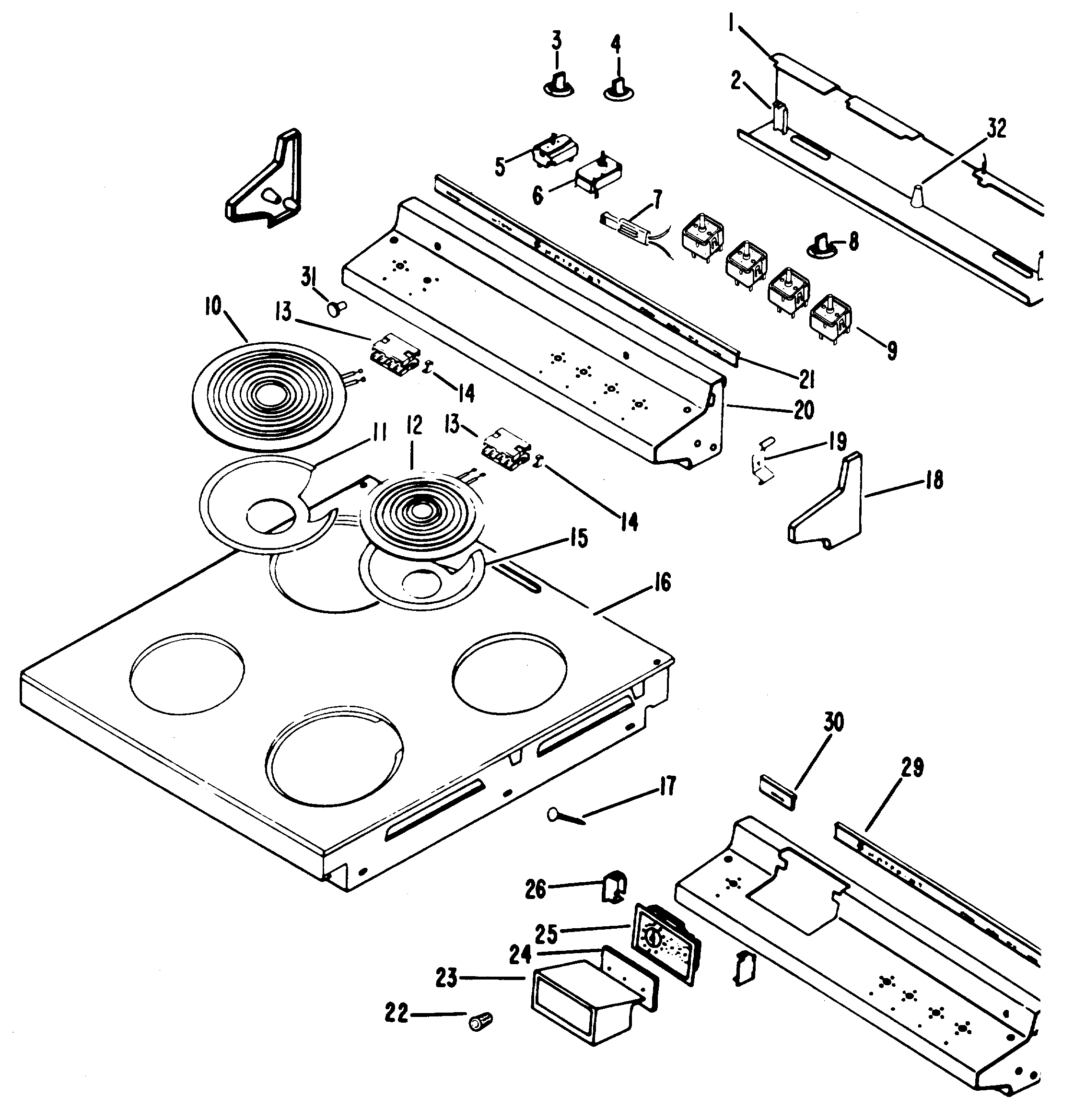

Position	Product
1	GEN WB02X5821
1	LAMP – RECEPTACLE
1	GEN WB63X5189
2	GEN WB01X5171
2	GEN WB02X1083
2	GEN WB01X5454
2	GEN WB01X5455
2	GEN WB07X5353
2	GEN WB02X5759
3	WB36X192 GE Oven Light Cover
3	GEN WB63X5034
3	GEN WB03X5434
4	GEN WB02X2885
4	SWITCH, OVEN LIGHT
4	GEN WB03X5432
4	SLEEVING AT TERMINALS
5	GEN WB01X5105
5	GEN WB02X5584
5	GEN WB07X5136
5	GEN WB01X5078
5	GEN WB01X5141
5	SWITCH, SELECTOR
5	CLIP FOR THERMOSTAT TUBE
6	GEN WB02X5409
6	GEN WB21X5105
6	OVEN LINER MOUNTING SPRING
6	GEN WB02X5784
6	SCREW – INCL. WASHERS NO. 10-24X1/2"
6	GEN WB02X5760
6	GEN WB55X5120
7	GEN WB53X5062
7	GEN WB02X5211
7	GEN WB02X5208
7	LINER SCREW
7	NEON LAMP 118V
7	CLIP MTG LAMP
7	WB1X119D GE Oven Range Washer
7	GEN WB02X5218
8	GEN WB44X5074
8	SUPPORT BROIL
8	GEN WB03X5429
8	CAM LINK
8	WZ4X345D GE Screw Package 12 C92
9	GEN WB02X5410
9	GEN WB01X5070
9	GEN WB02X5164
9	WB21X36771 GE Surface Element Switch
10	WB30X348 GE Oven 8" Surface Unit Element with Screw
10	GEN WB32X0051
10	TRIM RING 8"
10	TRIM PLATE LOWER OVEN
10	WB48X10056 GE Broil Pan Set, Large Porcelain
11	HANDLE SCREW
11	SPEEDNUT ON HANDLE SUPPORT
11	WB32X10013 GE Oven 8" Chrome Drip Pan
11	GEN WB02X6036
11	SPACER
11	GEN WB15X5115
12	GEN WB02X5804
12	BAKE ELEMENT
12	WB30X342 GE Oven Cooktop 6" Burner Unit 3w No Trim Ring
12	GEN WB56X5625
12	GEN WB56X5624
12	GEN WB56X5623
12	GEN WB32X0052
12	GEN WB56X5622
12	WB31X5013 GE Oven 6" Chrome Trim Ring
12	WB1X500D GE Oven Screw Package
13	GEN WB02X5084
13	GEN WB63X5030
13	GASKET – TOP & SIDES
13	TERM BLOCK SINGLE COIL
14	CLIP INSULATOR
14	GEN WB63X5007
14	GEN WB49X5005
15	WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
15	GEN WB07X5133
15	GEN WB07X5134
15	GEN WB38X5044
16	GEN WB62X5197
16	GEN WB63X5005
16	GEN WB02X5165
17	GEN WB01X5137
17	GEN WB63X5032
18	GEN WB07X5200
18	DOOR GUIDE ASM.-LH & RH
18	GEN WB07X5201
19	HINGE PIN FOR SERVICE 3/16" DIA.
19	GEN WB09X5043
20	GEN WB61X5817
20	RETAINING RING FOR HINGE PIN
21	DOOR SUPPORT – LH & RH
22	GEN WB01X5181
22	GEN WB10X5041
22	GEN WB10X5042
22	GEN WB03X0218
23	GEN WB04X5034
23	GEN WB09X5018
23	GEN WB02X5527
24	GEN WB36X5256
25	GEN WB19X5207
25	WINDOW BRACKET
26	WINDOW GASKET
26	GEN WB02X5526
27	GEN WB36X5113
28	GEN WB02X5506
29	GEN WB07X5383
29	OUTER WINDOW – PATTERNED
30	GEN WB01X5224
30	GEN WB38X5043
30	GEN WB07X5292
31	WB25X65 GE Oven Light Indicator
32	GEN WB02X5758
32	GEN WB01X5112
32	GEN WB01X5160
