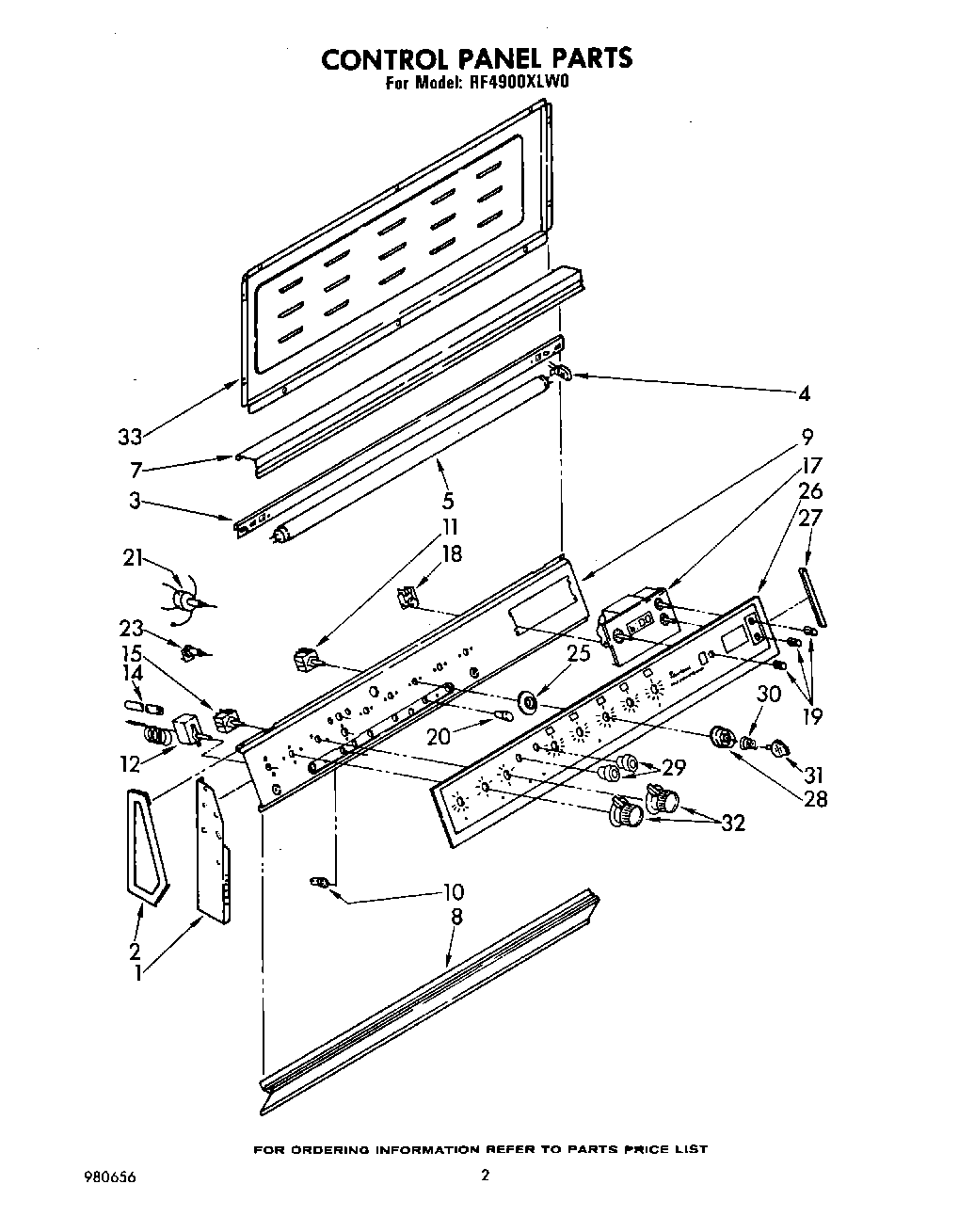

RF4900XLW0 02 – CONTROL PANEL

Products

Position	Product
1	Support, Backguard (L.H.)
1	Support, Backguard (R.H.)
2	End Cap (L.H.)
2	End Cap (R.H.)
2	Nut, Timer (4)
3	Channel, Light Mounting
4	Lampholder (L.H.)
4	Lampholder (R.H.)
5	Light, Fluorescent 33``
7	Shade, Lamp
8	Base, Backguard
9	Bracket, Control
10	Light, Indicator (3) Surface Unit, Griddle, Clean (Alternate)
10	Light, Pilot (3) (Clean, Lock & Surface Unit)
10	Light, Indicator (3) Surface Unit, Griddle, Clean (Alternate Light Indicator (3) Main Oven, Auxiliar
10	Light, Pilot (Oven)
11	W10900107 Whirlpool Oven Surface Element Switch
11	WP486579 Whirlpool Air Conditioner Screw
12	Thermostat, Oven (Main)
12	Thermostat, Oven (Auxiliary)
12	WPL 487428
14	Sleeving Insulation
15	WPL 868991
15	WPL 486525
17	Timer, Digital (Includes Illus. 18 & 19)
17	Hex Nut, 10-32 (6)
18	Motor, Timer
19	Knob, Timer (3)
20	WPL 834956
21	Switch, Fluorescent Light
23	WPL 98754
23	WPL 866138
25	Dial, Surface Unit & Griddle (5)
26	WPL 877649
27	Trim, Glass (2)
28	WPL 868296
29	WPL 866053
30	WPL 868297
31	WPL 868298
32	WPL 868998
32	WPL 868997
33	WPL 866233
33	Screw, 10-24 x 1/2 (3)
