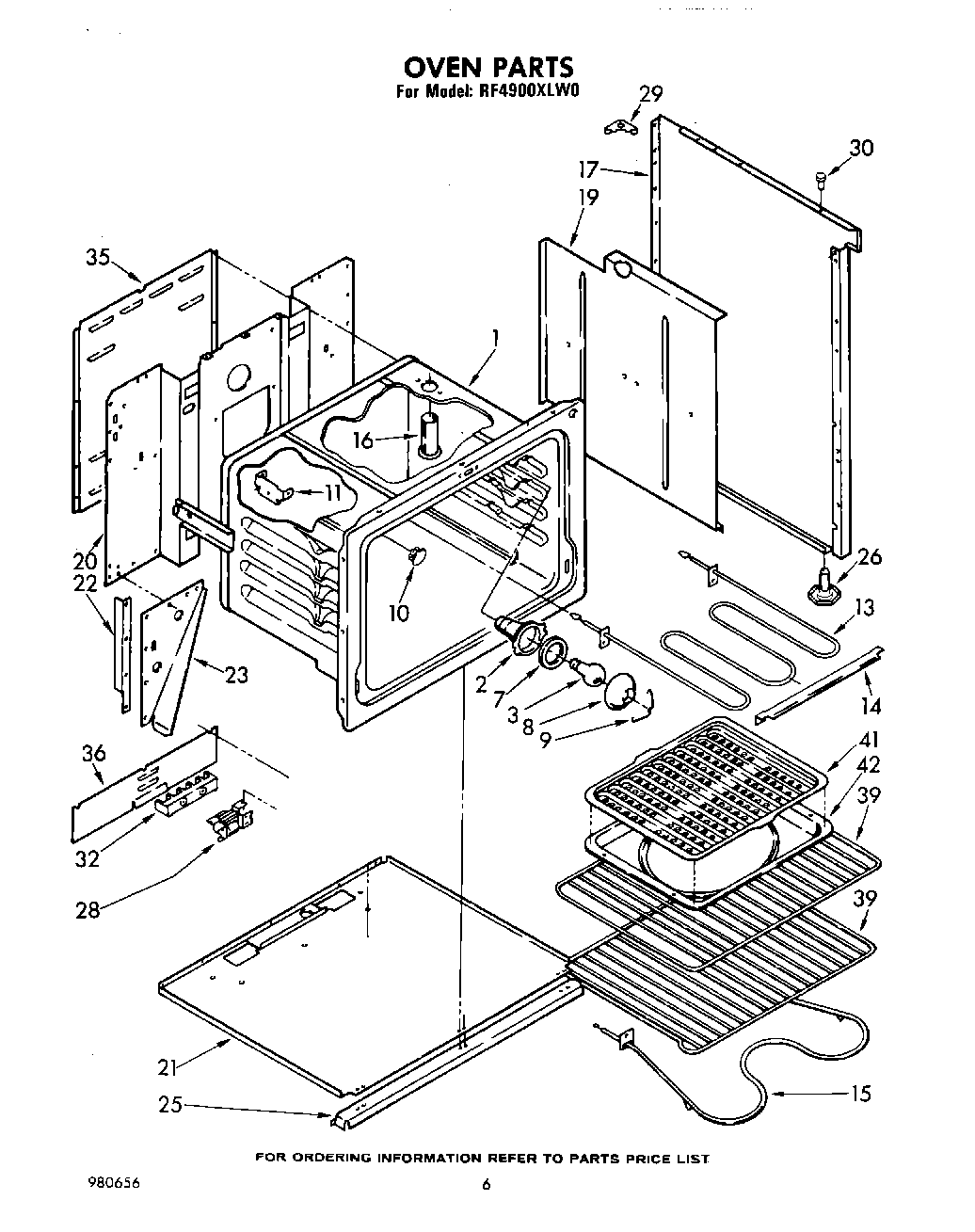

| 2 | Washer (2) |
| 2 | Socket, Light |
| 3 | RANGE ONLY 40W 120V APPL BULB |
| 7 | Gasket, Light |
| 8 | Cover, Light |
| 9 | retainer, oven light |
| 10 | Plug, Button |
| 10 | Button, Plug |
| 11 | Bracket, Thermo Bulb |
| 13 | Unit, Broil |
| 14 | Hanger, Broil Unit |
| 15 | Unit Bake (Screw, 10-24 x 1/2 (2)) |
| 15 | WP865940 Whirlpool Bake Element |
| 16 | vent tube (alternate) |
| 16 | vent tube (alternate) |
| 16 | Screw, 10-24 x 3/8 (2) |
| 16 | WP965173 Whirlpool Dishwasher Screw |
| 17 | Panel, End R.H. (Almond) |
| 17 | Panel, End R.H. (Harvest Gold) |
| 17 | Panel, End R.H. (Coffee) |
| 17 | Panel, End R.H. (White) |
| 17 | Panel, End R.H. (New Avocado) |
| 17 | End Panel, Almond (R.H.) |
| 17 | panel, end R.H. (white) |
| 17 | Panel, End R.H. (New Avocado) |
| 17 | panel, end R.H. (harvest gold) |
| 17 | Panel, End R.H. (Coffee Panel, End L.H.) |
| 19 | retainer, insulation (L.H.) |
| 19 | Retainer, Insulation (R.H.) |
| 20 | Back, Range |
| 21 | Panel, Bottom |
| 22 | Support, Gusset |
| 23 | Gusset, Rear (L.H.) |
| 23 | Gusset, Rear (R.H.) |
| 25 | Channel, Support |
| 26 | Leg Leveler (4) |
| 28 | Ballast (Alternate) |
| 28 | Ballast (Alternate) |
| 28 | balla |
| 28 | WPL 868959 |
| 29 | Gusset, Backguard (2) |
| 30 | WPL 834667 |
| 32 | WPL 834649 |
| 32 | WP8203546 Whirlpool Terminal Block |
| 32 | Hex Nut, 10-32 (6) |
| 35 | Screw, 10-24 x 1/2 (3) |
| 35 | Cover Wiring, Low |
| 36 | Cover |
| 38 | WPL 87756 |
| 39 | Rack, Oven Offset |
| 39 | WPL 865983 |
| 41 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 42 | Pan, Broiler |
