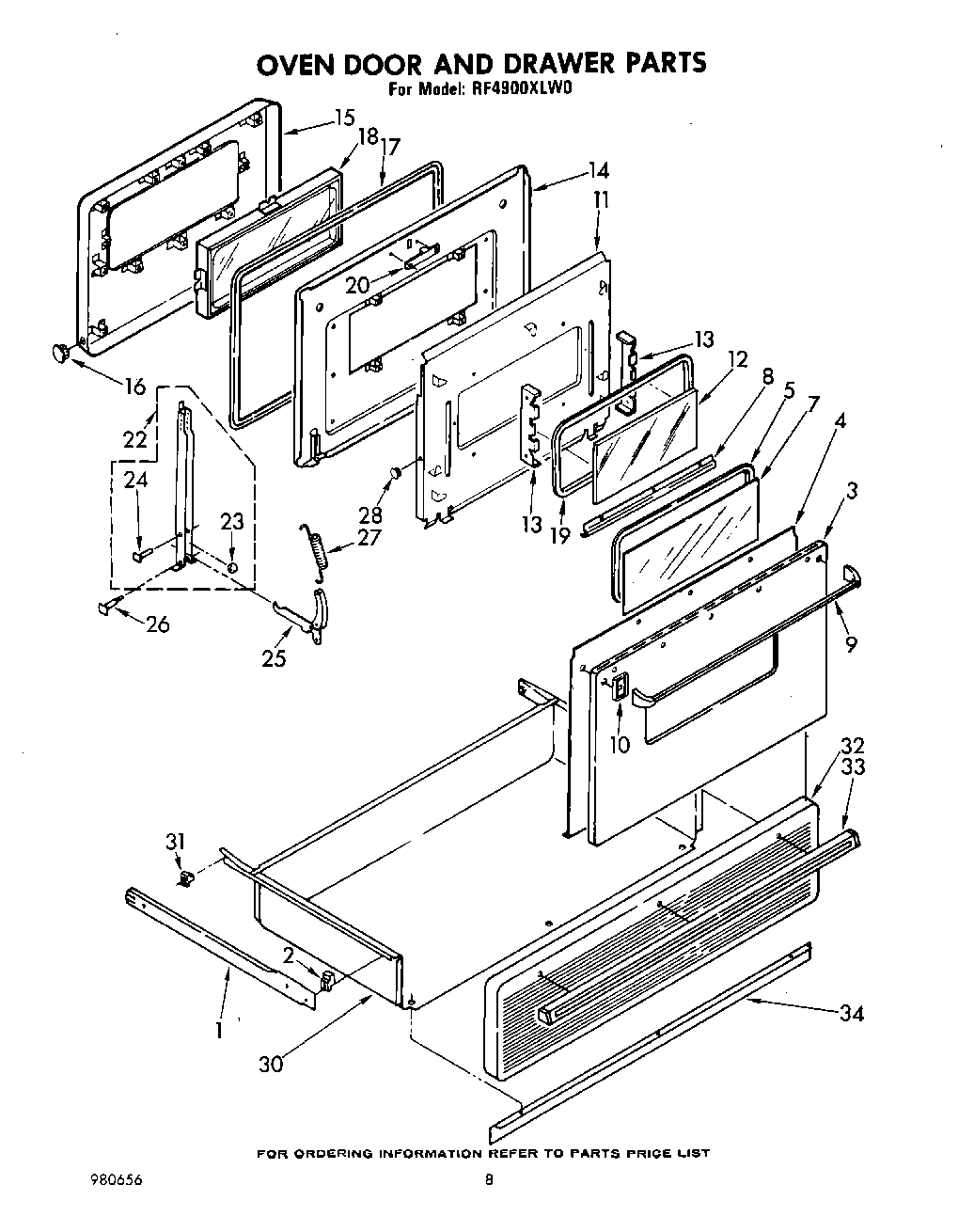

RF4900XLW0 05 – OVEN DOOR AND DRAWER

Products

Position	Product
2	Guide, Drawer (Front)
2	WPL 834649
3	panel, oven door (main) (harvest gold)
3	panel, oven door (main) (new avocado)
3	Panel, Oven Door (Main) (White)
3	Panel, Oven Door (Main) (Almond)
3	panel, oven door (main) (coffee)
4	Panel, Insulator
5	“J“ Molding Outer Glass
7	Glass, Outer
8	WP486579 Whirlpool Air Conditioner Screw
8	Retainer, Glass (2)
9	Handle, Door (Main)
10	Screw, 10-24 x 5/8 (2)
10	Spacer, Handle (2)
11	Panel, Air Wash
12	Glass, Inner
13	Retainer, Glass
14	Liner, Oven Door
15	Baffle Weldment
16	Plug Button 3/16“ (2)
17	Seal, Oven Door
18	Window Assembly
19	Seal, Window
20	Screw 10-24 x 1/2
20	Strike
22	Channel Assembly
22	Screw
22	Washer (2)
22	Channel, L.H.
23	Roller, Stop (2)
24	Rivet (2)
25	Arm Assembly (2)
26	Pin, Hinge (2)
27	Spring, Door (2)
28	Plug Button
30	Drawer
31	Guide, Drawer (Back)
32	WPL 868248
32	panel, drawer (new
32	Panel, Drawer
32	Screw, 10-24 x 1/2 (3)
32	WPL 868250
32	Panel, Drawer (Almond)
33	Handle, Drawer
33	Screw, 10-24 x 3/8
34	WP965173 Whirlpool Dishwasher Screw
34	WPL 866136
42	rail, drawer (R.H.)
42	Rail, Drawer (L.H.)
