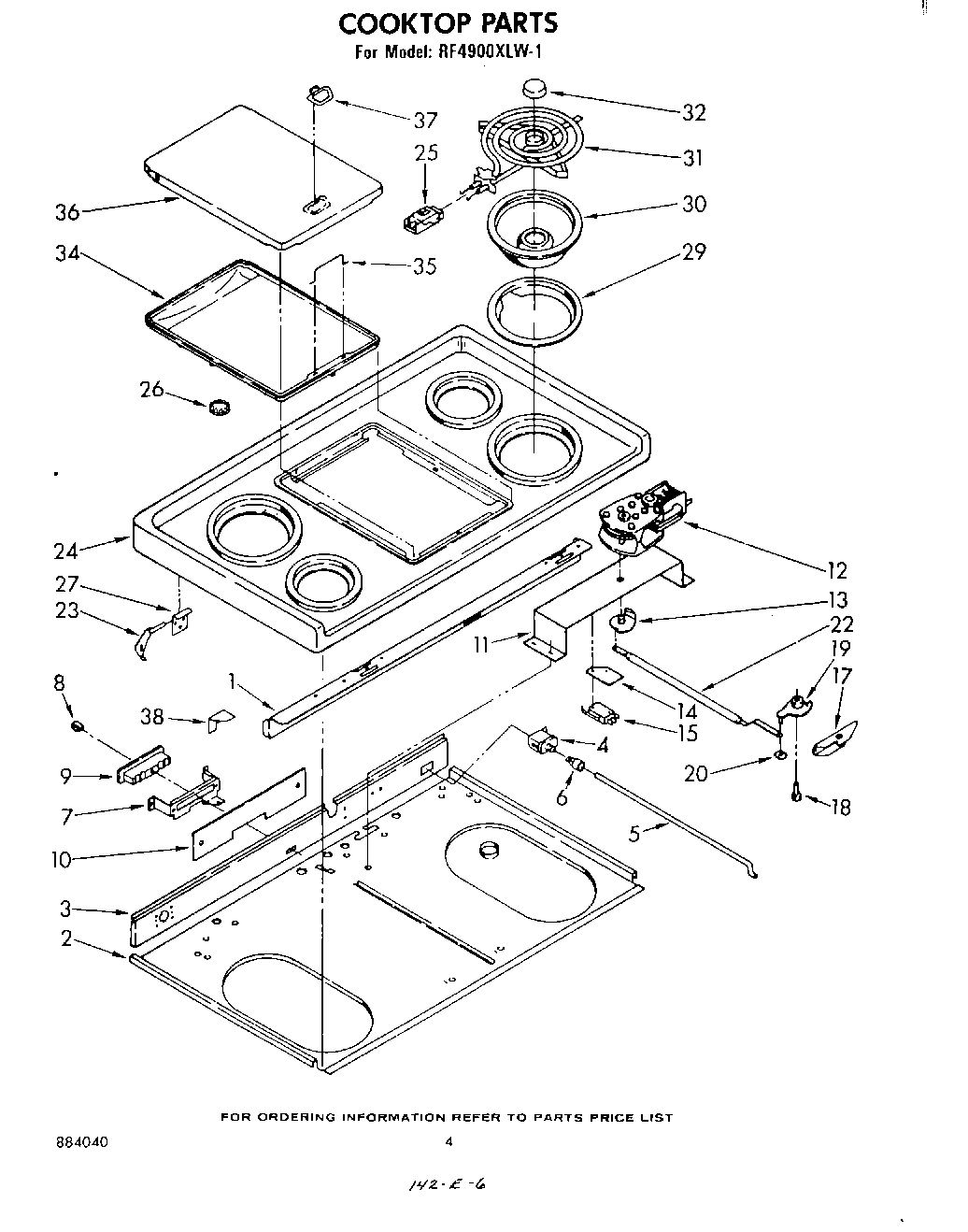

RF4900XLW1 03 – COOKTOP

Products

Position	Product
1	Bracket, Cooktop
2	Panel, Sub Top
3	Shield, Wiring
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
6	Rod End, Switch
7	Bracket, Receptacle
7	Washer, Fiber (2)
7	WPL 834649
8	Terminal, Female (3)
9	WP486579 Whirlpool Air Conditioner Screw
9	Receptacle, Female
10	Insulator, Wire Shield
11	Support, Latch Motor
12	motor, door latch (alternate)
12	Motor (Alternate)
12	Motor (Alternate)
12	WPL 273225
13	cam, door latch (alternate)
13	Cam, Door Latch (Alternate)
13	Cam, Door Latch (Pin, Spring)
14	Insulator, Limit Switch (3)
15	Switch, Lower Limit (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Lower Limit (2) (Alternate)
17	Housing, Latch
17	Screw 10-24 x 1/2
17	Washer (2)
18	Axle, Latch
19	alternate
19	Latch, Door
20	Pushnut, 1/4
22	WPL 868323
22	Cam, Door Latch (Pushnut, 3/16“)
23	Bracket, Hinge Pin ((LH))
23	Bracket, Hinge Pin ((RH))
24	WPL 868285
24	WPL 868283
24	WPL 868282
24	WPL 868284
24	WPL 868286
25	BURNER RECEPTACLE KIT
25	WP486754 Whirlpool Compactor Screw
26	WPL 241283
27	Retainer, Hinge Pin (2)
29	Ring, Trim (6“ (2))
29	Ring, Trim (8“ (2))
30	Pan, Surface (6“ (2))
30	Pan, Surface (8“ (2))
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	WPL 868522
34	Screw, 10-24 x 1/2
34	terminal, ground
34	Griddle
35	Lifter, Griddle
36	WPL 868331
36	WPL 868333
36	WPL 868332
36	WPL 868330
36	WPL 244085
37	Handle, Griddle Cover
38	Bracket, Filler
38	Screw, 10-24 x 1/2 (3)
