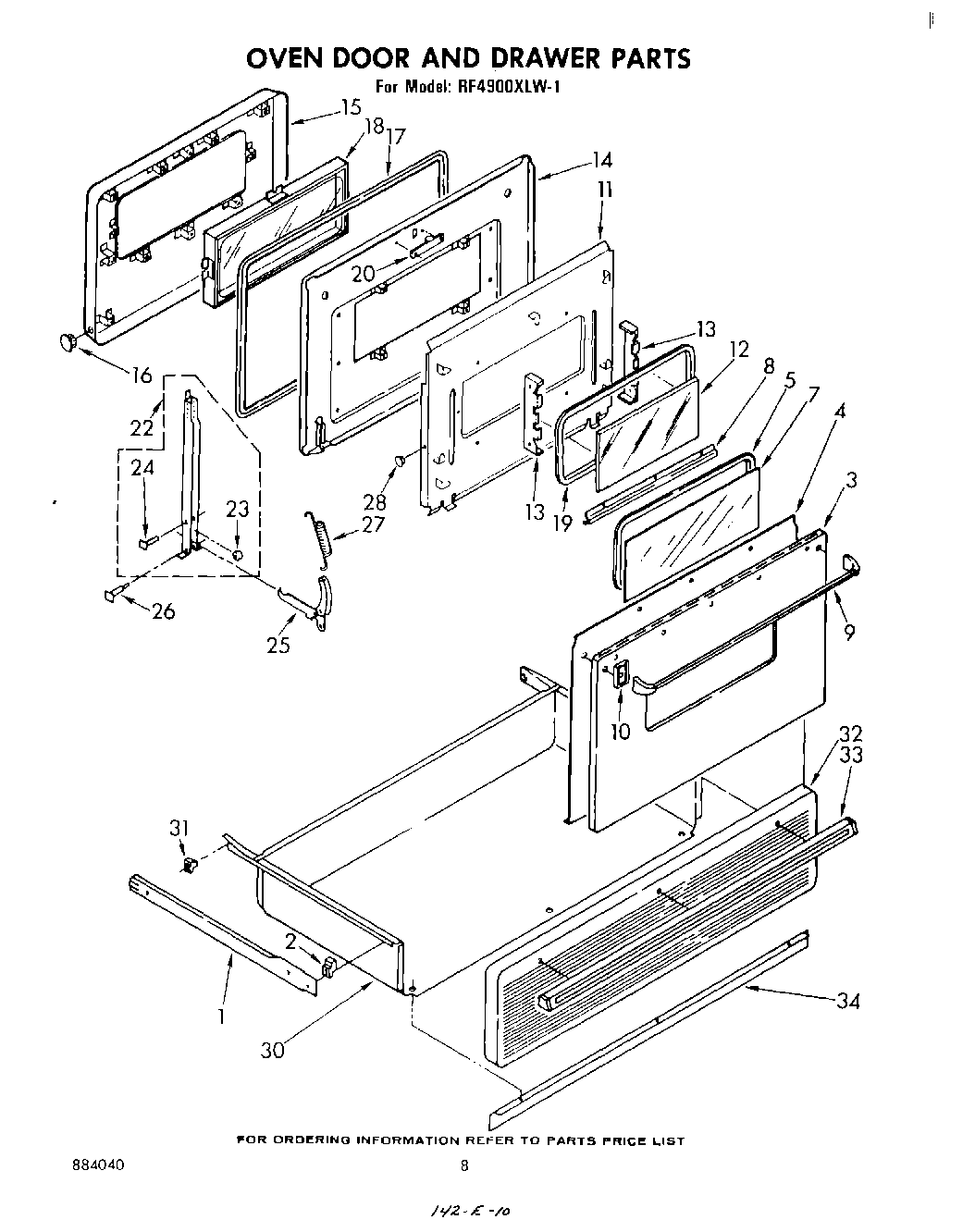

RF4900XLW1 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Rail, Drawer (Right Side)
1	Rail, Drawer (Left Side)
2	Guide, Drawer (Front)
2	WPL 834649
3	panel, oven door (main) (coffee)
3	panel, oven door (main) (harvest gold)
3	Panel, Oven Door (Main) (White)
3	panel, oven door (main) (new avocado)
3	Panel, Oven Door (Main) (Almond)
4	Panel, Insulator
5	“J“ Molding Outer Glass
7	Glass, Outer
8	WP486579 Whirlpool Air Conditioner Screw
8	Retainer, Glass (2)
9	Handle, Door (Main)
10	Spacer, Handle (2)
10	Screw, 10-24 x 5/8 (2)
11	Panel, Air Wash
12	Glass, Inner
13	Retainer, Glass
14	Liner, Oven Door
15	Baffle Weldment
16	Plug Button 3/16“ (2)
17	Seal, Oven Door
18	Window Assembly
19	Seal, Window
20	Strike
20	Screw 10-24 x 1/2
22	Channel Assembly
22	Washer (2)
22	Channel, L.H.
22	Screw
23	Roller, Stop (2)
24	Rivet (2)
25	Arm Assembly (2)
26	Pin, Hinge (2)
27	Spring, Door (2)
28	Plug Button
30	Drawer
31	Guide, Drawer (Back)
32	Panel, Drawer (Almond)
32	WPL 868250
32	WPL 868248
32	Panel, Drawer
32	Screw, 10-24 x 1/2 (3)
32	panel, drawer (new
33	Handle, Drawer
33	Screw, 10-24 x 3/8
34	WP965173 Whirlpool Dishwasher Screw
34	WPL 866136
