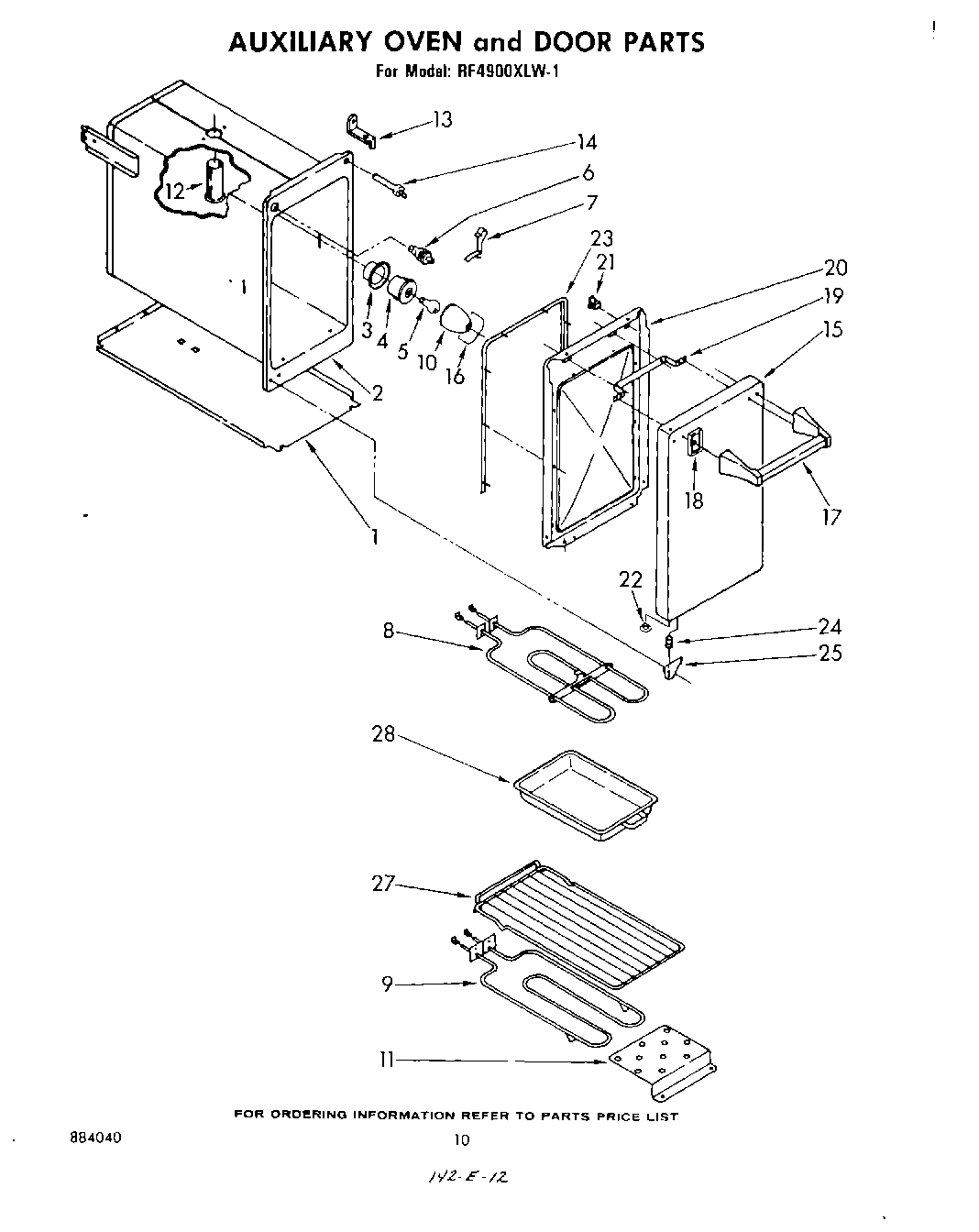

RF4900XLW1 06 – AUXILIARY OVEN AND DOOR , LITERATURE

RF4900XLW1 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Written by

in

RF4900XLW1 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
1Panel, Bottom
1WPL 834649
2Oven, Auxiliary
2Screw, 10-24 x 1/2 (3)
3Cup, Light
4W10856866 Whirlpool Light Socket
5RANGE ONLY 40W 120V APPL BULB
6Switch, Oven Light
798005642 Whirlpool Clip
8unit, broil (alternate)
8Element, Broil
9Element, Bake
9unit, bake (alternate)
10Lens, Light
11Shield, Bake Unit
12Vent Tube
12Screw, 10-24 x 3/8 (2)
13Unit Bake (Screw, 10-24 x 1/2 (2))
13Bracket, Strike
14Strike, Door
14W10080180 Whirlpool Nut
15Panel, Oven Door (Auxiliary) (Coffee)
15Panel, Oven Door (Auxiliary) (Harvest Gold)
15Panel, Oven Door (Auxiliary) (New Avocado)
15panel, oven door (auxiliary) (almond)
15panel, oven door (auxiliary) (white)
16Retainer, Lens
17Handle, Door
18Spacer, Handle (2)
18Screw, 10-24 x 5/8 (2)
19Spacer, Door
20Washer (2)
20Liner, Door
20washer, rubber
21Catch, Door Panel
22Button, Plug
23gasket, door (w/clips) (alternate)
23Gasket, Door
24Spacer, Hinge (2) Pin
25WPL 865930
25Hinge, Oven Door (
25Screw 10-24 x 1/2
25Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
27Rack, Oven Regular
28WPL 877679
28FOIL, ALUMINUM OVEN (18“ X 25 )
28WPL 884040
28Wire, 25` Roll (Black 14 Ga.)
28WPL 877792
28Wire, 25` Roll (Red 14 Ga.)
28Wire, 25“ Roll (White 14 GA.)
28WPW10208653 Whirlpool Insulation
28350942 Whirlpool Spray Paint
28Golden Harvest (Uncut)
28350930 Whirlpool White Spray Paint
28350956 Whirlpool Spray Assembly
2872017 Whirlpool Appliance Touch-Up Paint White
28799344 Whirlpool Refrigerator Paint
28WP72107 Whirlpool Touchup
28Almond (Uncut)
2872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28Golden Harvest
28WPL 799832
28285006 Whirlpool Spray
2872109 Whirlpool Dacor Avocado Touch-Up Paint
28Wire (14 Ga. 150 c Yellow)
2818 Ga. 80~c Rating (Red)
28Wire (14 Ga. 200 c Brown)
281
28Enamel, Coffee (1 Qt. Uncut)
28Enamel, New Avocado (1 Qt. Uncut)
28WPL 308500
28WPL 799351
28Grease
28Wire (14 Ga. 150 c Orange)
28Wire (14 Ga. 150 c Green)
28WPL 865621
28Touch-Up Oven (1 Oz.)
28Paint, Touch-Up 1/2 Oz. (Coffee)
28paint, spray 13 oz. (coffee)
28Paint, Spray 13 Oz. (Avocado)
28Kit, Broiler Pan And Grid
28242831 Whirlpool Oven Wire
28Wire (12 Ga. 150 c Black)
28Wire (14 Ga. 150 c Blue)
28Wire (14 Ga. 150 c Brown)
28Leveler (Thinner) (2oz.)
