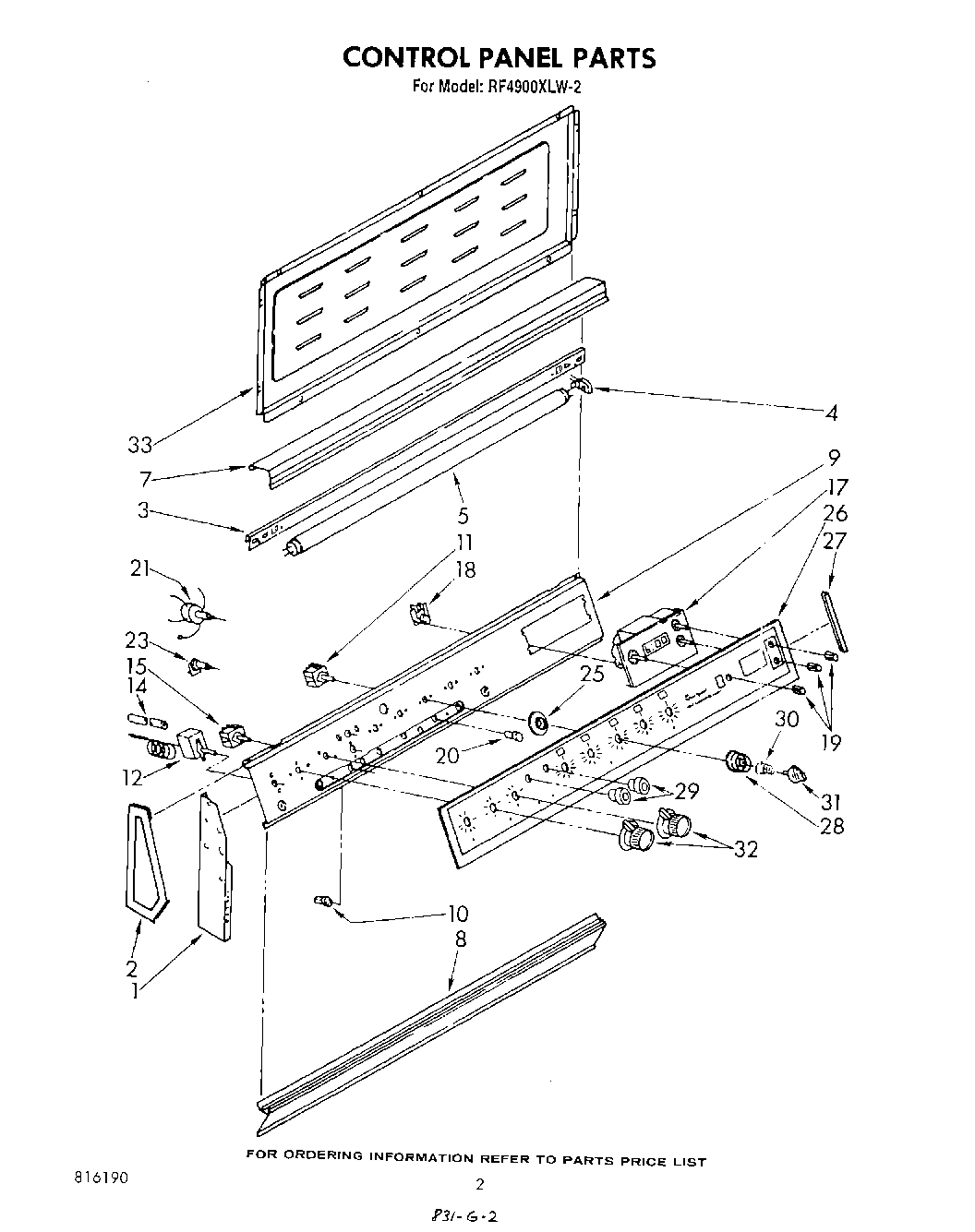

RF4900XLW2 02 – CONTROL PANEL

Products

Position	Product
1	Support, Backguard (R.H.)
1	Support, Backguard (L.H.)
2	End Cap (R.H.)
2	Nut, Timer (4)
2	End Cap (L.H.)
3	Channel, Light Mounting
4	Lampholder (L.H.)
4	Lampholder (R.H.)
4	WPL 487428
5	Light, Fluorescent 33“
7	Shade, Lamp
8	Base, Backguard
9	Bracket, Control
10	Light, Pilot (3) (Clean, Lock & Surface Unit)
10	light, indicator (3) surface unit, griddle, clean (alternate (250V))
10	Light, Indicator (3) Surface Unit, Griddle, Clean (Alternate Light Indicator (3) Main Oven, Auxiliar
10	light, indicator (3) surface unit, griddle, clean (alternate (250V))
11	W10900107 Whirlpool Oven Surface Element Switch
11	WP486579 Whirlpool Air Conditioner Screw
12	thermostat, oven (auxiliary)
12	Thermostat, Oven (Main)
14	Sleeving Insulation
15	Switch, Selector (Main)
15	Screw, 8-32 x 3/16 (2)
17	Timer, Digital (Includes Illus. 18 & 19)
17	Hex Nut, 10-32 (6)
18	Motor, Timer
19	Knob, Timer (3)
20	WPL 834956
21	Switch, Fluorescent Light
23	WPL 866138
23	WPL 98754
25	Dial, Surface Unit & Griddle (5)
26	WPL 816167
27	Trim, Glass (2)
28	WPL 868296
29	WPL 866053
30	WPL 868297
31	WPL 816168
32	WPL 868997
32	WPL 868998
33	Screw, 10-24 x 1/2 (3)
33	WPL 866233
