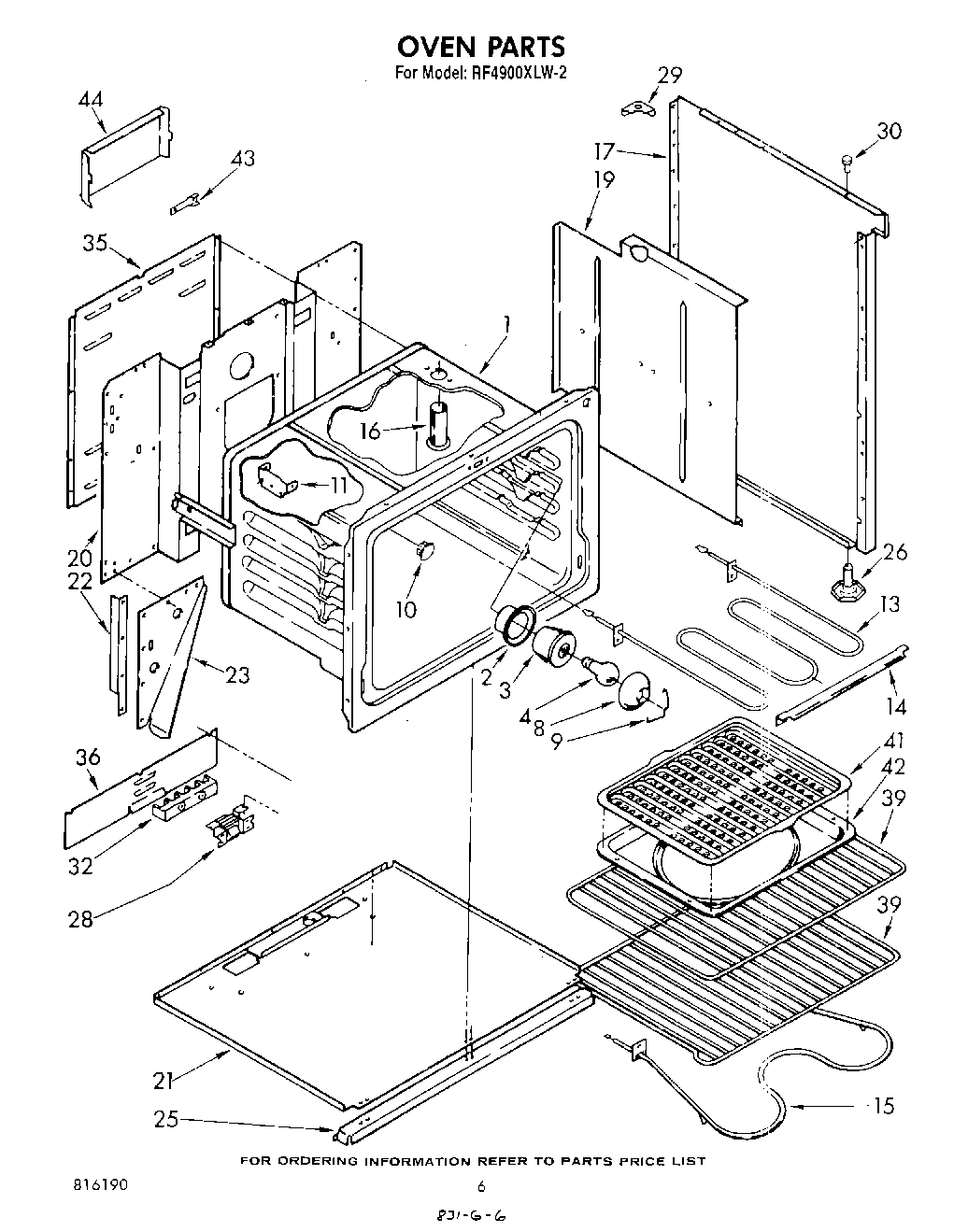

RF4900XLW2 04 – OVEN

Products

Position	Product
1	Oven
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
8	Lens, Light
9	Retainer, Lens
10	Plug, Button
10	Button, Plug
11	Bracket, Thermo Bulb
13	Unit, Broil
14	Hanger, Broil Unit
15	Unit Bake (Screw, 10-24 x 1/2 (2))
15	WP865940 Whirlpool Bake Element
16	Screw, 10-24 x 3/8 (2)
16	WP965173 Whirlpool Dishwasher Screw
16	vent tube (alternate)
16	Vent Tube
16	vent tube (alternate)
17	Panel, Body-Side (Almond L.H.)
17	Panel, Body-Side (White R.H.)
17	Panel, End R.H. (Almond Panel, End L.H.)
17	Panel, Body-Side (White L.H.)
19	Retainer, Insulation (L.H.)
19	Retainer, Insulation (R.H.)
20	Back, Range
21	Panel, Bottom
22	Support, Gusset
23	Gusset, Rear (L.H.)
23	Gusset, Rear (R.H.)
25	Channel, Support
26	Leg Leveler (4)
28	Ballast (Alternate)
28	Ballast (Alternate)
28	balla
29	Gusset, Backguard (2)
30	Bumper, Cooktop (5)
32	WP8203546 Whirlpool Terminal Block
32	WPL 834649
32	Hex Nut, 10-32 (6)
35	WPL 816109
35	Screw, 10-24 x 1/2 (3)
36	Cover
39	WPL 877951
39	WPL 865983
41	4396923 Whirlpool Broil Pan Set Gray Porcelain
42	Pan, Broiler
43	Screw,10-24 x 1/2
43	Strap, Ground
44	WPL 816152
