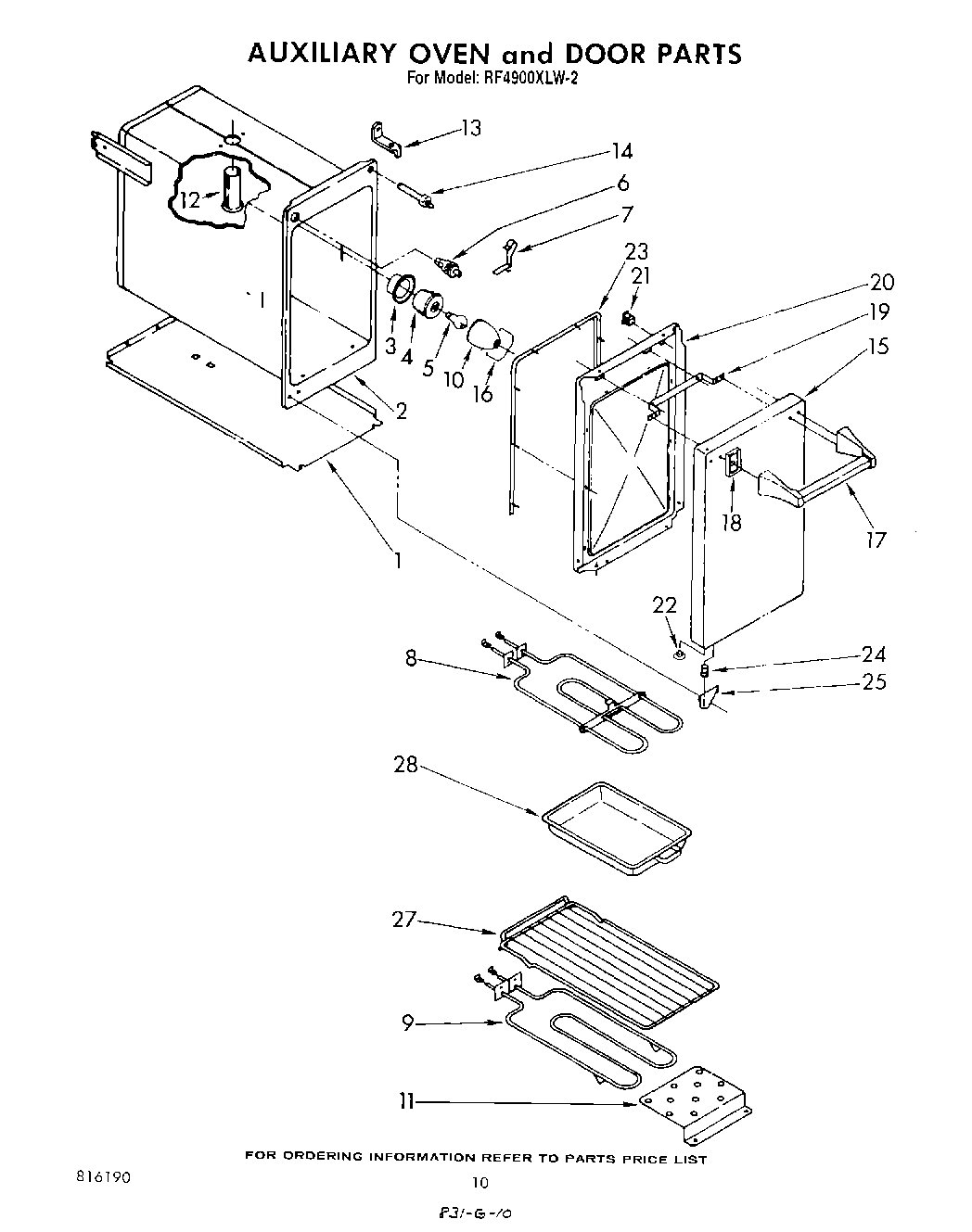

RF4900XLW2 06 – AUXILIARY OVEN AND DOOR , LITERATURE

RF4900XLW2 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Written by

in

RF4900XLW2 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
1Panel, Bottom
1WPL 834649
2Oven, Auxiliary
2Screw, 10-24 x 1/2 (3)
3Cup, Light
4W10856866 Whirlpool Light Socket
5RANGE ONLY 40W 120V APPL BULB
6Switch, Oven Light
798005642 Whirlpool Clip
8Element, Broil
8unit, broil (alternate)
9unit, bake (alternate)
9Element, Bake
10Lens, Light
11Shield, Bake Unit
12Vent Tube
12Screw, 10-24 x 3/8 (2)
13Bracket, Strike
13Unit Bake (Screw, 10-24 x 1/2 (2))
14W10080180 Whirlpool Nut
14Strike, Door
15panel, oven door (auxiliary) (almond)
15panel, oven door (auxiliary) (white)
16Retainer, Lens
17Handle, Door
18Spacer, Handle (2)
18Screw, 10-24 x 5/8 (2)
19Spacer, Door
20Washer (2)
20washer, rubber
20Liner, Door
21Catch, Door Panel
22Button, Plug
23gasket, door (w/clips) (alternate)
23Gasket, Door
24Spacer, Hinge (2) Pin
25Screw 10-24 x 1/2
25hinge, oven door (auxiliary) (bottom)
25Hinge, Oven Door (Auxiliary) (Top)
25Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
27Rack, Oven Regular
28WPL 799832
28350942 Whirlpool Spray Paint
28Golden Harvest (Uncut)
28Wire, 25“ Roll (White 14 GA.)
28Golden Harvest
28WPL 261832
28WPL 877952
28WPL 816190
28WPL 816125
28350956 Whirlpool Spray Assembly
2872017 Whirlpool Appliance Touch-Up Paint White
28Wire (14 Ga. 200 c Brown)
28799344 Whirlpool Refrigerator Paint
28350930 Whirlpool White Spray Paint
28WP72107 Whirlpool Touchup
28WPL 877792
28Almond (Uncut)
2872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28WPW10208653 Whirlpool Insulation
28Kit, Broiler Pan And Grid
28Leveler (Thinner) (2oz.)
28Enamel, New Avocado (1 Qt. Uncut)
28Enamel, Coffee (1 Qt. Uncut)
281
2818 Ga. 80~c Rating (Red)
28242831 Whirlpool Oven Wire
28Wire (14 Ga. 150 c Yellow)
28Wire (14 Ga. 150 c Orange)
28Wire (14 Ga. 150 c Green)
28Wire (14 Ga. 150 c Brown)
28Grease
28WPL 799351
28Touch-Up Oven (1 Oz.)
28FOIL, ALUMINUM OVEN (18“ X 25 )
28Wire, 25` Roll (Black 14 Ga.)
28Wire (12 Ga. 150 c Black)
28Wire, 25` Roll (Red 14 Ga.)
28WPL 865621
28285006 Whirlpool Spray
2872109 Whirlpool Dacor Avocado Touch-Up Paint
28Paint, Touch-Up 1/2 Oz. (Coffee)
28paint, spray 13 oz. (coffee)
28Paint, Spray 13 Oz. (Avocado)
28Wire (14 Ga. 150 c Blue)
