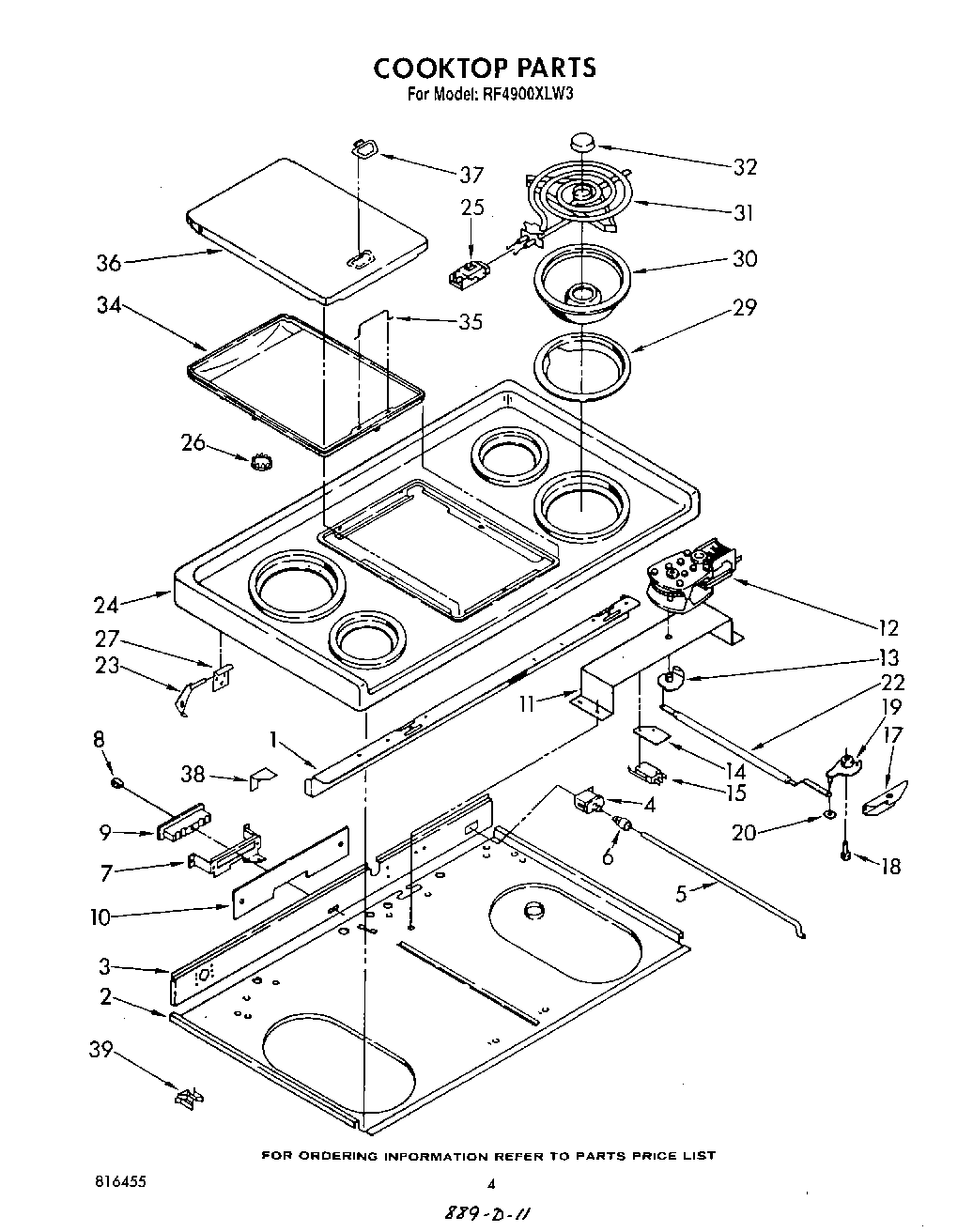

RF4900XLW3 03 – COOKTOP

RF4900XLW3 03 – COOKTOP

Written by

in

RF4900XLW3 03 – COOKTOP

Products

Position	Product
	Screw, 10-24 x 1/2 (3)
1	Bracket, Cooktop
2	Panel, Sub Top
3	Shield, Wiring
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
6	Rod End, Switch
7	WPL 834649
7	Washer, Fiber (2)
7	Bracket, Receptacle
8	Terminal, Female (3)
9	Washer
9	Receptacle, Female
10	Insulator, Wire Shield
11	Support, Latch Motor
12	Motor (Alternate)
12	WPL 273225
12	Motor (Alternate)
12	Motor, Door Latch (Complete)
12	motor, door latch (alternate)
13	Cam, Door Latch (Alternate)
13	cam, door latch (alternate)
13	Cam, Door Latch (Pin, Spring)
14	Insulator, Limit Switch (3)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Lower Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Lower Limit (2) (Alternate)
17	Washer (2)
17	Screw 10-24 x 1/2
17	Housing, Latch
18	Pin, Hinge (2)
19	Latch, Door
19	alternate
19	Latch, Door
20	Pushnut, 1/4
22	Cam, Door Latch (Pushnut, 3/16“)
22	WPL 816158
23	Bracket, Hinge Pin ((RH))
23	Bracket, Hinge Pin ((LH))
24	WPL 868285
24	WPL 868282
25	BURNER RECEPTACLE KIT
25	WP486754 Whirlpool Compactor Screw
26	WPL 241283
27	Retainer, Hinge Pin (2)
29	Ring, Trim (8“ (2))
29	Ring, Trim (6“ (2))
30	Pan, Surface (8“ (2))
30	Pan, Surface (6“ (2))
31	WP660533 Whirlpool Oven 8" Surface Element
31	WP660532 Whirlpool Oven Surface Element
32	WPL 868522
34	terminal, ground
34	WPL 816127
34	Screw, 10-24 x 1/2
35	Lifter, Griddle
36	WPL 816172
36	WPL 816173
37	Handle, Griddle Cover
38	Bracket, Filler
39	WPL 816023
39	WP486579 Whirlpool Air Conditioner Screw
