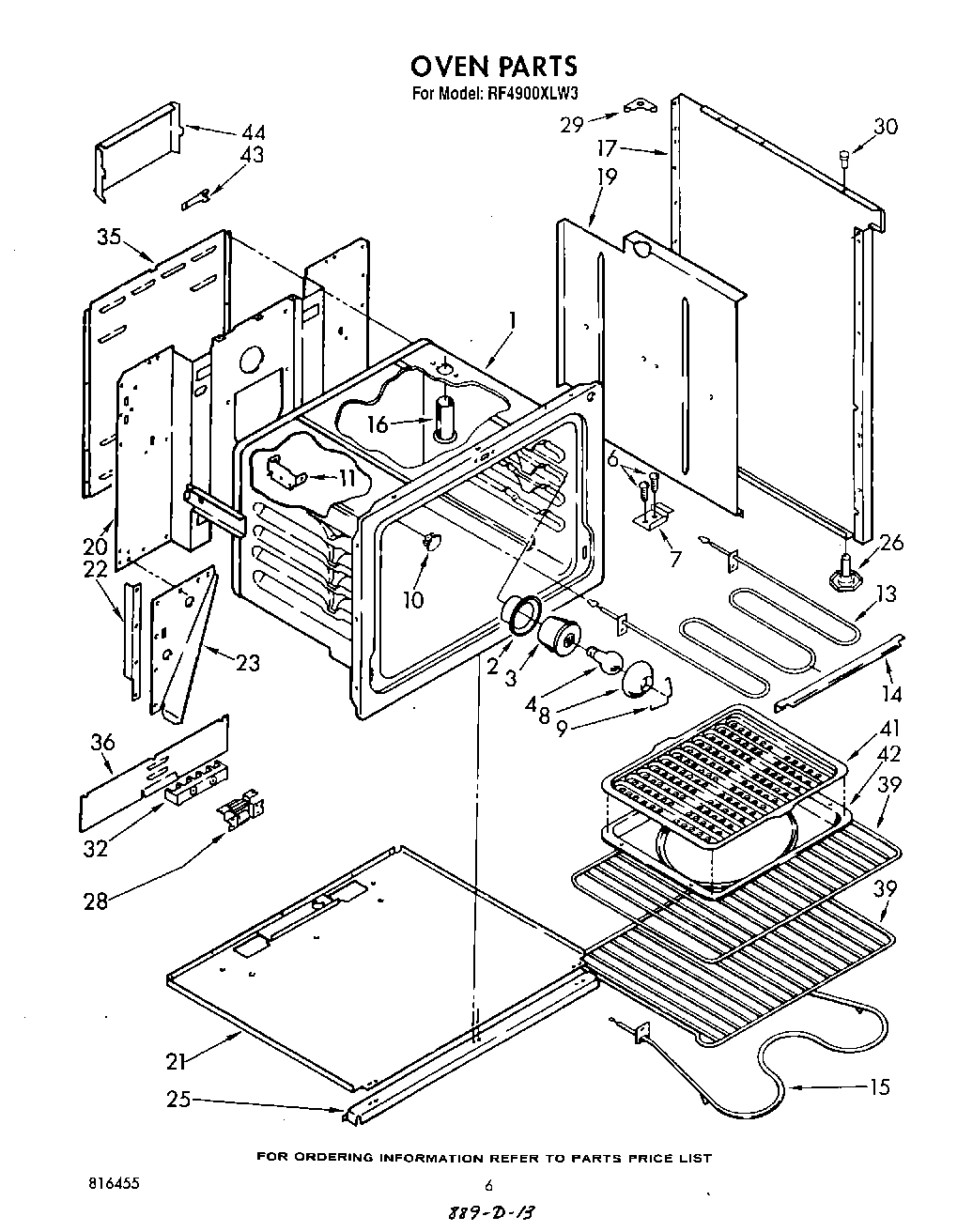

RF4900XLW3 04 – OVEN

Products

Position	Product
1	Oven
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
6	screw, concrete (4)
7	Bracket, Anti-Tip (Right Side)
7	Bracket, Anti-Tip (Left Side)
8	Lens, Light
9	Retainer, Lens
10	Plug, Button
10	Button, Plug
11	Bracket, Thermo Bulb
13	Unit, Broil
14	Hanger, Broil Unit
15	Unit Bake (Screw, 10-24 x 1/2 (2))
15	WP865940 Whirlpool Bake Element
16	WP965173 Whirlpool Dishwasher Screw
16	Vent Tube
16	Screw, 10-24 x 3/8 (2)
16	vent tube (alternate)
16	vent tube (alternate)
17	Panel, Body-Side (White R.H.)
17	Panel, Body-Side (White L.H.)
17	Panel, End R.H. (Almond Panel, End L.H.)
17	Panel, Body-Side (Almond L.H.)
19	Retainer, Insulation (L.H.)
19	Retainer, Insulation (R.H.)
20	Back, Range
21	Panel, Bottom
22	Support, Gusset
23	Gusset, Rear (L.H.)
23	Gusset, Rear (R.H.)
25	Channel, Support
26	Leg Leveler (4)
28	balla
28	Ballast (Alternate)
28	Ballast (Alternate)
29	Gusset, Backguard (2)
30	Bumper, Cooktop (5)
32	WPL 834649
32	WP8203546 Whirlpool Terminal Block
32	Hex Nut, 10-32 (6)
35	WPL 816109
35	Screw, 10-24 x 1/2 (3)
36	Cover
39	WPL 865983
39	WPL 877951
41	4396923 Whirlpool Broil Pan Set Gray Porcelain
42	Pan, Broiler
43	Strap, Ground
43	Screw,10-24 x 1/2
44	WPL 816152
