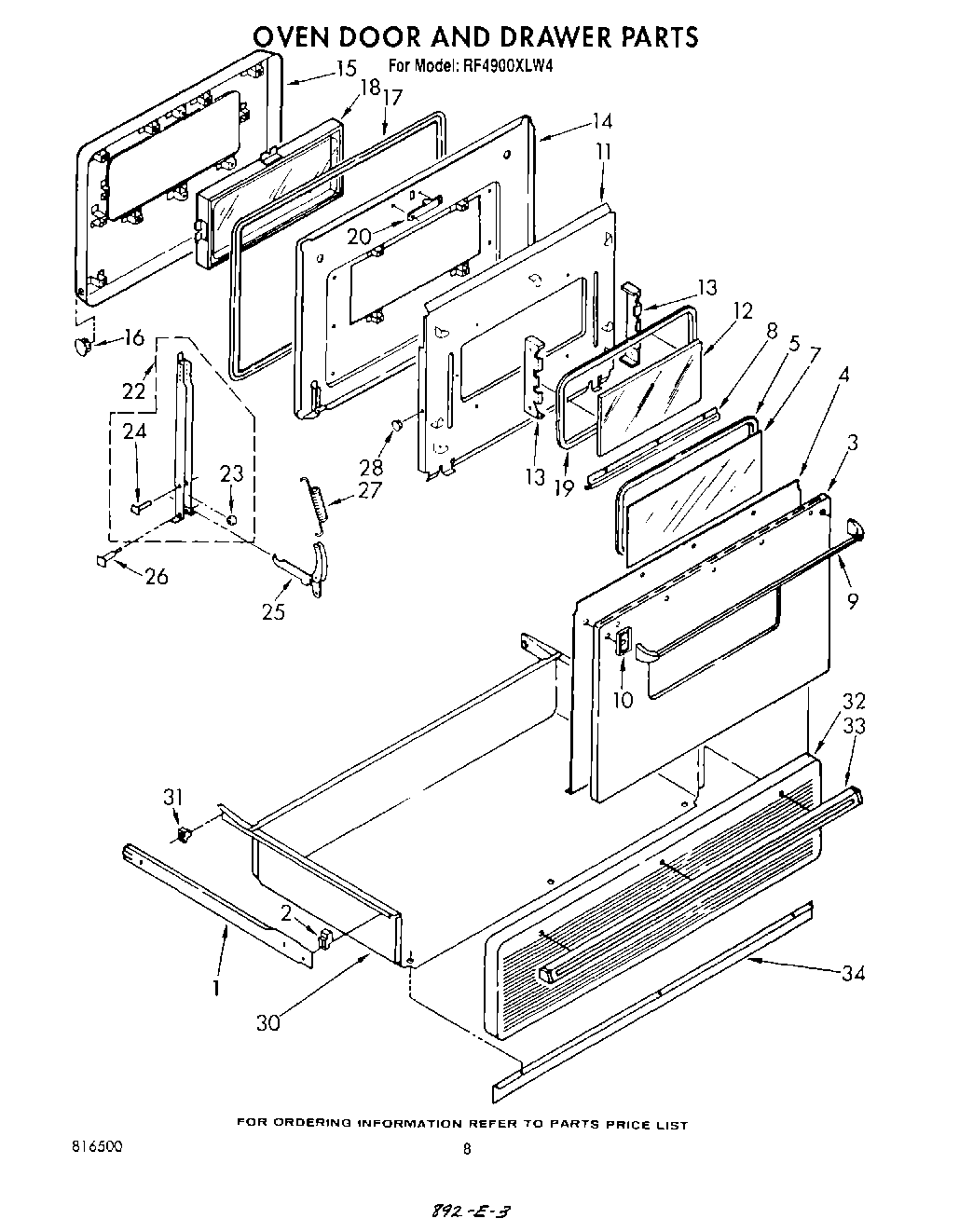

RF4900XLW4 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Rail, Drawer (Right Side)
1	Rail, Drawer (Left Side)
2	WPL 834649
2	Guide, Drawer (Front)
3	panel, oven door (main) (white)
3	Panel, Oven Door (Main) (Almond)
4	Panel, Insulator
5	“J“ Molding Outer Glass
7	Glass, Outer
8	Retainer, Glass (2)
8	WP486579 Whirlpool Air Conditioner Screw
9	Handle, Door (Main)
10	Spacer, Handle (2)
10	Screw, 10-24 x 5/8 (2)
11	Panel, Air Wash
13	Glass, Inner
14	Liner, Oven Door
15	Baffle Weldment
16	Plug Button 3/16“ (2)
17	Seal, Oven Door
18	Window Assembly
19	Seal, Window
20	Screw 10-24 x 1/2
20	Washer
20	Strike
22	Channel Assembly
22	Channel, L.H.
22	Screw
22	Washer (2)
23	Roller, Stop (2)
24	Rivet (2)
25	Arm Assembly (2)
26	Pin, Hinge (2)
27	Spring, Door (2)
28	Plug Button
30	Drawer
31	Guide, Drawer (Back)
32	Panel, Drawer (Almond)
32	Panel, Drawer
32	Screw, 10-24 x 1/2 (3)
33	Handle, Drawer
33	WPL 877903
34	WP965173 Whirlpool Dishwasher Screw
34	WPL 866136
