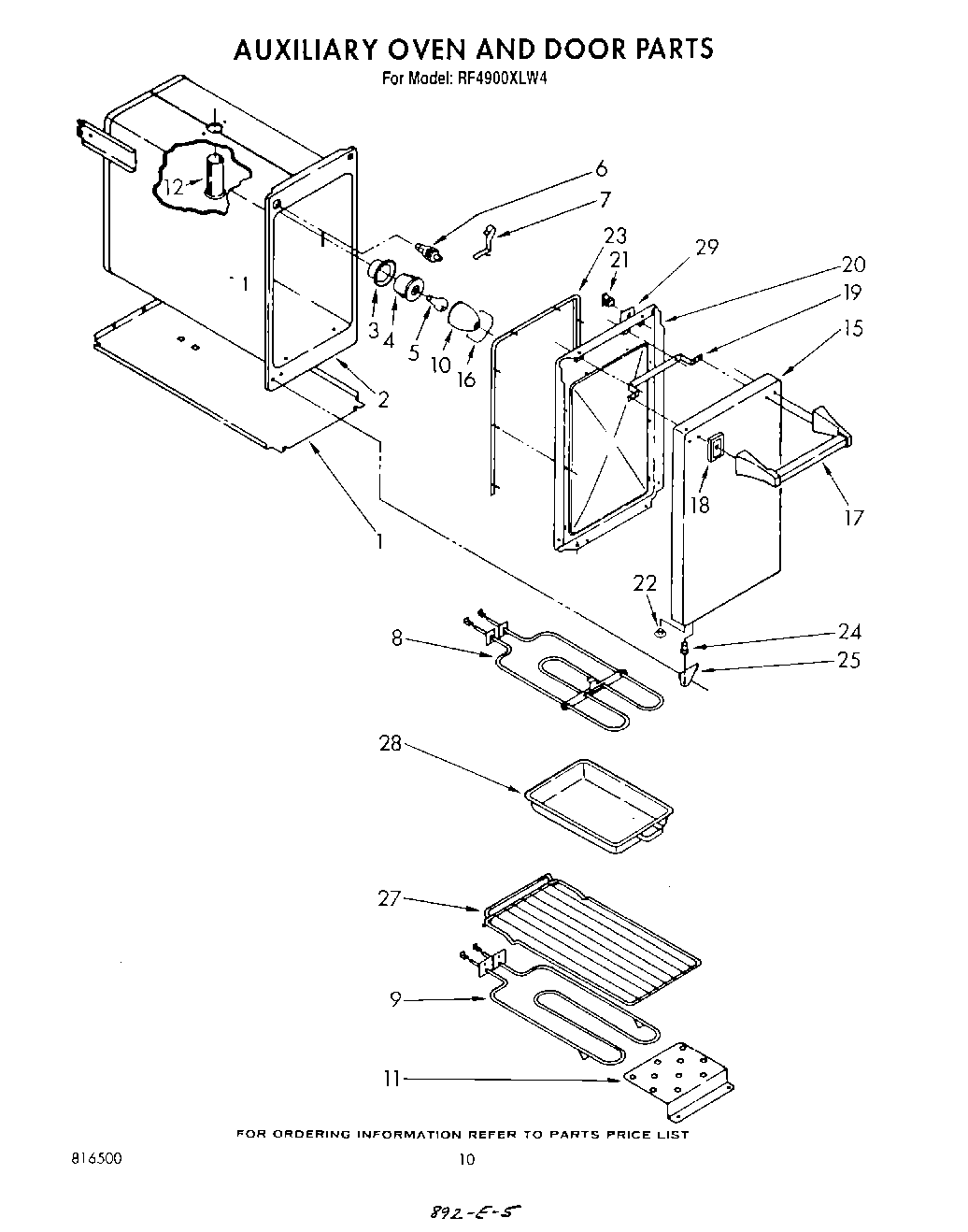

RF4900XLW4 06 – AUXILIARY OVEN AND DOOR , LITERATURE

RF4900XLW4 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Written by

in

RF4900XLW4 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
1Panel, Bottom
1WPL 834649
2Oven, Auxiliary
2Screw, 10-24 x 1/2 (3)
4W10856866 Whirlpool Light Socket
5RANGE ONLY 40W 120V APPL BULB
6Switch, Oven Light
798005642 Whirlpool Clip
8unit, broil (alternate)
8Element, Broil
9unit, bake (alternate)
9Element, Bake
10Lens, Light
11Shield, Bake Unit
11Unit Bake (Screw, 10-24 x 1/2 (2))
12Vent Tube
12 24Screw, 10-24 x 3/8 (2)
15panel, oven door (auxiliary) (white)
15panel, oven door (auxiliary) (almond)
16Retainer, Lens
17Handle, Door
18Spacer, Handle (2)
18Screw, 10-24 x 5/8 (2)
19Panel, Oven Door (Main) (White)
20washer, rubber
20Washer (2)
20liner, door
21Latch, Door Magnetic
22Button, Plug
23Gasket, Door
23gasket, door (w/clips) (alternate)
24Spacer, Hinge (2) Pin
25Screw 10-24 x 1/2
25hinge, oven door (auxiliary) (bottom)
25Hinge, Oven Door (Auxiliary) (Top)
25Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
27Rack, Oven Regular
28Kit, Broiler Pan And Grid
29WPL 206022
29Plate, Catch
29Wire (14 Ga. 150 c Yellow)
29WPL 261832
29WPL 799832
29WPL 799351
2972109 Whirlpool Dacor Avocado Touch-Up Paint
29285006 Whirlpool Spray
29Wire, 25“ Roll (White 14 GA.)
29Wire, 25` Roll (Red 14 Ga.)
29Wire, 25` Roll (Black 14 Ga.)
29FOIL, ALUMINUM OVEN (18“ X 25 )
29WPW10208653 Whirlpool Insulation
29Golden Harvest
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29Almond (Uncut)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29350956 Whirlpool Spray Assembly
29Paint, Touch-Up 1/2 Oz. (Coffee)
29paint, spray 13 oz. (coffee)
29Paint, Spray 13 Oz. (Avocado)
29Grease
29Leveler (Thinner) (2oz.)
29Enamel, New Avocado (1 Qt. Uncut)
29Enamel, Coffee (1 Qt. Uncut)
291
29Wire (14 Ga. 200 c Brown)
2918 Ga. 80~c Rating (Red)
29Wire (12 Ga. 150 c Black)
29Wire (14 Ga. 150 c Orange)
29Wire (14 Ga. 150 c Green)
29Wire (14 Ga. 150 c Brown)
29Wire (14 Ga. 150 c Blue)
29242831 Whirlpool Oven Wire
29Touch-Up Oven (1 Oz.)
29350930 Whirlpool White Spray Paint
