RF764*04

RF764*04

Written by

in

RF764*04

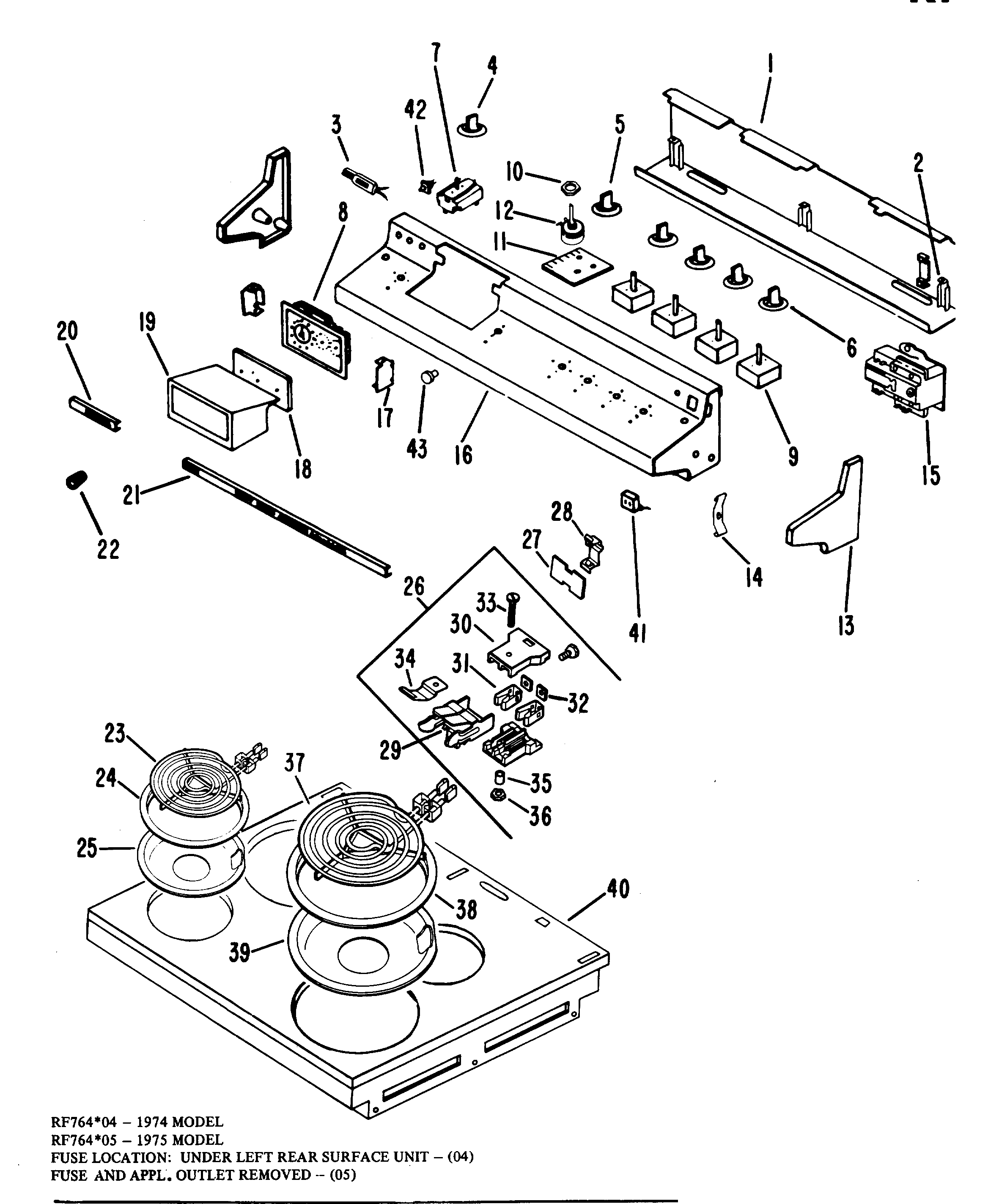

Products

Position	Product
1	GEN WB01X5122
1	LATCH ASSEMBLY
1	GEN WB24X0160
1	GEN WB02X5821
1	WB1X119D GE Oven Range Washer
1	WZ2X464D GE Screw
2	GEN WB03X5250
2	GEN WB02X5759
2	GEN WB02X2826
3	NEON LAMP 118V
3	GEN WB01X5110
3	GEN WB15X5058
3	GEN WB02X2827
3	CLIP MTG LAMP
4	SWITCH, LATCH (SLIDE)
4	GEN WB02X5829
4	SENSOR ASM
4	MOUNTING SCREWS
4	OVEN SENSOR GASKET
4	GEN WB02X2034
4	GEN WB03X5427
5	GEN WB02X5617
5	GEN WB03X5428
6	WB08T10026 GE Range Push-In Receptacle
6	GEN WB03X5429
6	GEN WB02X5630
7	GEN WB29X5001
7	GEN WB24X5017
7	GEN WB22X5081
7	GEN WB02X5611
8	GEN WB63X5161
8	GEN WB19X5207
8	GEN WB24X0131
8	GEN WB02X5768
9	GEN WB02X5689
9	GEN WB17X5041
9	GEN WB02X5806
9	GEN WB02X5164
9	WB21X36771 GE Surface Element Switch
10	GEN WB02X5616
10	GEN WB01X0443
10	SCREW BEARING
10	GEN WB02X5615
11	GEN WB02X5613
11	GEN WB02X5635
11	GEN WB02X5764
11	GEN WB02X5614
11	CIRCUIT BOARD P-7
11	GEN WB01X0445
11	CLAMP, HARNESS
12	GEN WB01X5170
12	GEN WB01X5070
12	GEN WB24X5031
12	GEN WB02X5631
12	GEN WB02X5548
12	GEN WB01X5027
12	GEN WB02X5625
13	GEN WB02X5634
13	GEN WB07X5200
13	GEN WB02X5636
13	GEN WB02X2028
13	GEN WB02X5623
13	GEN WB53X5063
13	GEN WB07X5201
13	LINER SCREW
14	GEN WB09X5043
14	GEN WB44X5077
15	FUSE RECEPTACLE – INCL. FUSE (04)
15	SUPPORT BROIL
15	GEN WB44X5074
15	GEN WB21X0180
15	GEN WB02X5795
15	SLEEVING AT TERMINALS
16	GEN WB01X5171
16	SHELF – STRAIGHT
16	GEN WB61X5679
16	GEN WB02X5771
17	GEN WB01X5107
17	GEN WB02X5772
17	GEN WB02X5526
17	WB44X5043 GE Oven Range Bake Element
18	GEN WB63X5142
18	GEN WB36X5257
19	WB48X10056 GE Broil Pan Set, Large Porcelain
19	GEN WB63X5141
19	GEN WB02X5527
19	GEN WB04X5034
20	GEN WB07X5353
20	GEN WB07X5294
20	GEN WB01X5454
20	OVEN LINER MOUNTING SPRING
20	GEN WB01X5455
21	GEN WB07X5383
21	PAD
21	GEN WB20X0044
21	GEN WB01X5224
22	GEN WB02X5584
22	GEN WB01X5141
22	GEN WB01X5078
22	GEN WB03X0218
22	GEN WB07X5369
23	GEN WB32X0066
23	GEN WB24X5016
23	WB30X218 GE Range Cooktop Burner Unit 6 Inch
24	WB31X5013 GE Oven 6" Chrome Trim Ring
24	GEN WB02X6430
25	WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
26	GEN WB63X5185
26	GEN WB01X5147
27	GEN WB02X5932
27	GEN WB02X6171
27	GEN WB01X5168
27	GEN WB02X5931
28	GEN WB63X5169
28	GEN WB01X5181
28	CLIP INSULATOR
29	WZ4X345D GE Screw Package 12 C92
29	GEN WB09X5047
29	GEN WB55X5157
29	SCREW – INCL. WASHERS NO. 10-24X1/2"
29	GEN WB01X5105
30	GEN WB56X5416
30	GEN WB56X5289
30	GEN WB56X5417
30	GEN WB56X5418
30	GEN WB02X5624
30	WB17X5051
30	GEN WB02X5620
32	SPEEDNUT ON HANDLE SUPPORT
32	GEN WB02X5782
32	GEN WB02X6036
32	GEN WB15X5089
32	RR122 Supco Receptacle WB17X5051
32	GEN WB01X5203
33	BOTTOM GRILL
33	MTG. SCREWS
34	GEN WB38X5034
35	GEN WB02X5770
36	GEN WB63X5162
37	SCREW RECEPT TERMINAL
37	WB30X219 GE Range Cooktop Burner Unit 8 Inch
37	GEN WB02X5767
37	GEN WB32X0068
38	GEN WB02X5766
38	TRIM RING 8"
39	GEN WB63X5144
39	WB32X10013 GE Oven 8" Chrome Drip Pan
40	GEN WB07X5338
40	GEN WB01X5201
40	GEN WB62X5197
40	GEN WB07X5339
40	GEN WB02X5165
41	GEN WB08X5021
41	GEN WB63X5152
42	GEN WB24X5014
42	BUSHING
42	GEN WB63X5139
43	WB25X65 GE Oven Light Indicator
43	GEN WB09X5018
44	GEN WB10X5042
44	SPEC. SCREW – TRIMMED HD. 1/2-28X3/8"
44	GEN WB10X5041
45	DOOR SUPPORT – LH & RH
46	GEN WB10X5020
46	GEN WB10X5027
47	GEN WB09X5017
48	GEN WB10X5023
48	GEN WB10X5024
49	GEN WB10X5021
49	GEN WB10X5026
50	GEN WB10X5043
50	HINGE PIN FOR SERVICE 3/16" DIA.
50	RETAINING RING FOR HINGE PIN
