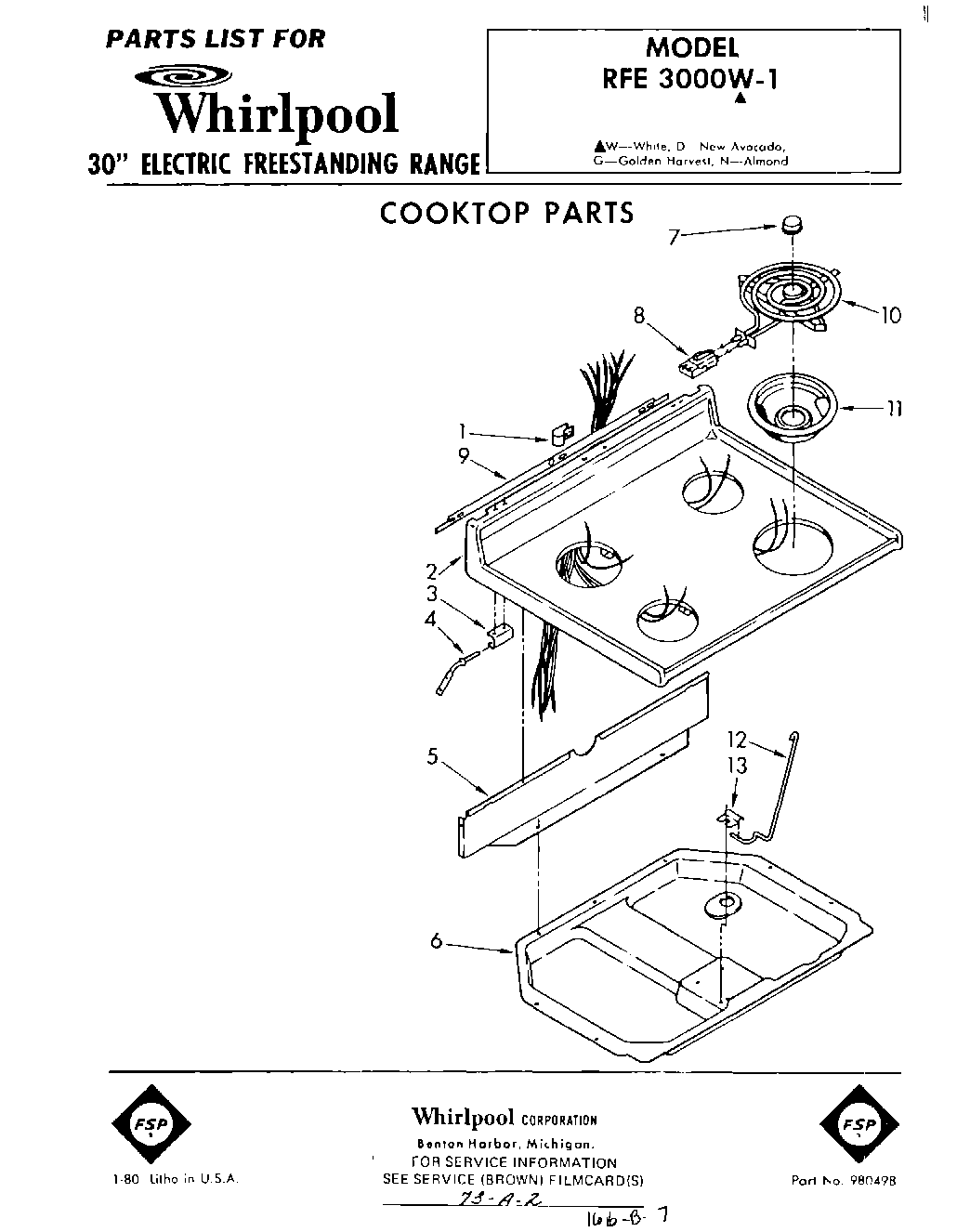

RFE3000W1 01 – COOKTOP

RFE3000W1 01 – COOKTOP

Written by

in

RFE3000W1 01 – COOKTOP

Products

PositionProduct
1W11693756 Whirlpool Screw Assembly
1WP308605 Whirlpool Refrigerator Clamp
2Cooktop (Almond)
2Screw, 10A x 1/2
2Cooktop (New Avocado)
2Cooktop (Harvest Gold)
2Cooktop (White)
3Bracket, Cooktop (2)
3WP308544 Whirlpool Screw
4Pin, Cooktop (2)
5SCREW
5Shield, Wiring
6Burner Box
6Screw, 10 x .5HH
7Medallion (4)
8WP486754 Whirlpool Compactor Screw
8BURNER RECEPTACLE KIT
9Barrier
10Unit, Surface (Includes Illus. 7) (6“ (3))
10SP21MA Chromalox Electric Stove Range 8" Top Burner Unit 2100W 240V
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Rod, Cooktop
13Retainer, Cooktop
13WP3390631 Whirlpool Screw
