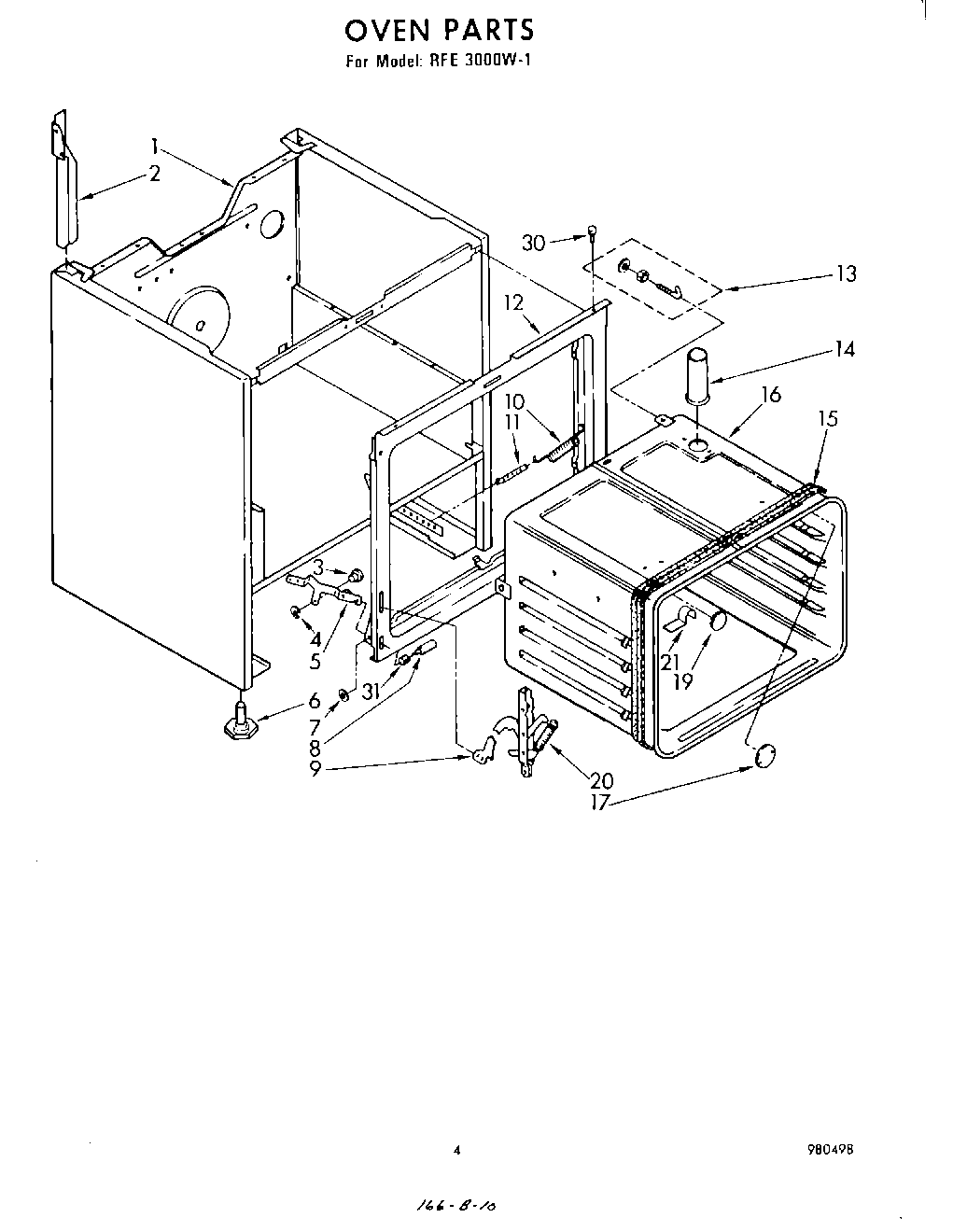

RFE3000W1 04 – OVEN

Products

Position	Product
1	main chassis (almond)
1	WPL 327872
1	Lining-Compartment Door (16331A,2A
1	Griddle Cover (Almond 1633L1A, L2A)
2	WP308544 Whirlpool Screw
2	Support, Channel (L.H.)
2	Support, Channel (R.H.)
3	WP307986 Whirlpool Hinge Pin
4	Retainer Ring (2)
5	Hinge (L.H.)
5	Hinge (R.H.)
5	Main Chassis (Screw, 10-32 x 1/2)
6	WP233550 Whirlpool Leveling Feet
7	Pushnut (2)
8	Pin, Hinge Ear (2)
9	Channel Arm (2)
10	Spring, Oven Door (2)
11	WP308125 Whirlpool Microwave Range/Cooktop Anchor
12	Frame, Front
12	SCREW
13	Oven Mounting Kit
14	Vent, Oven
14	WP308685 Whirlpool Microwave Screw
15	Clip, Retainer (2)
15	Heat Seal
16	Extension-Handle
17	Screw, 10A x 1/2
17	Cover, Plate
19	Plug Button
20	Spring, Door Stop
21	98005642 Whirlpool Clip
30	238614 Whirlpool Bumper Hinge
31	Snubber, Door (2)
