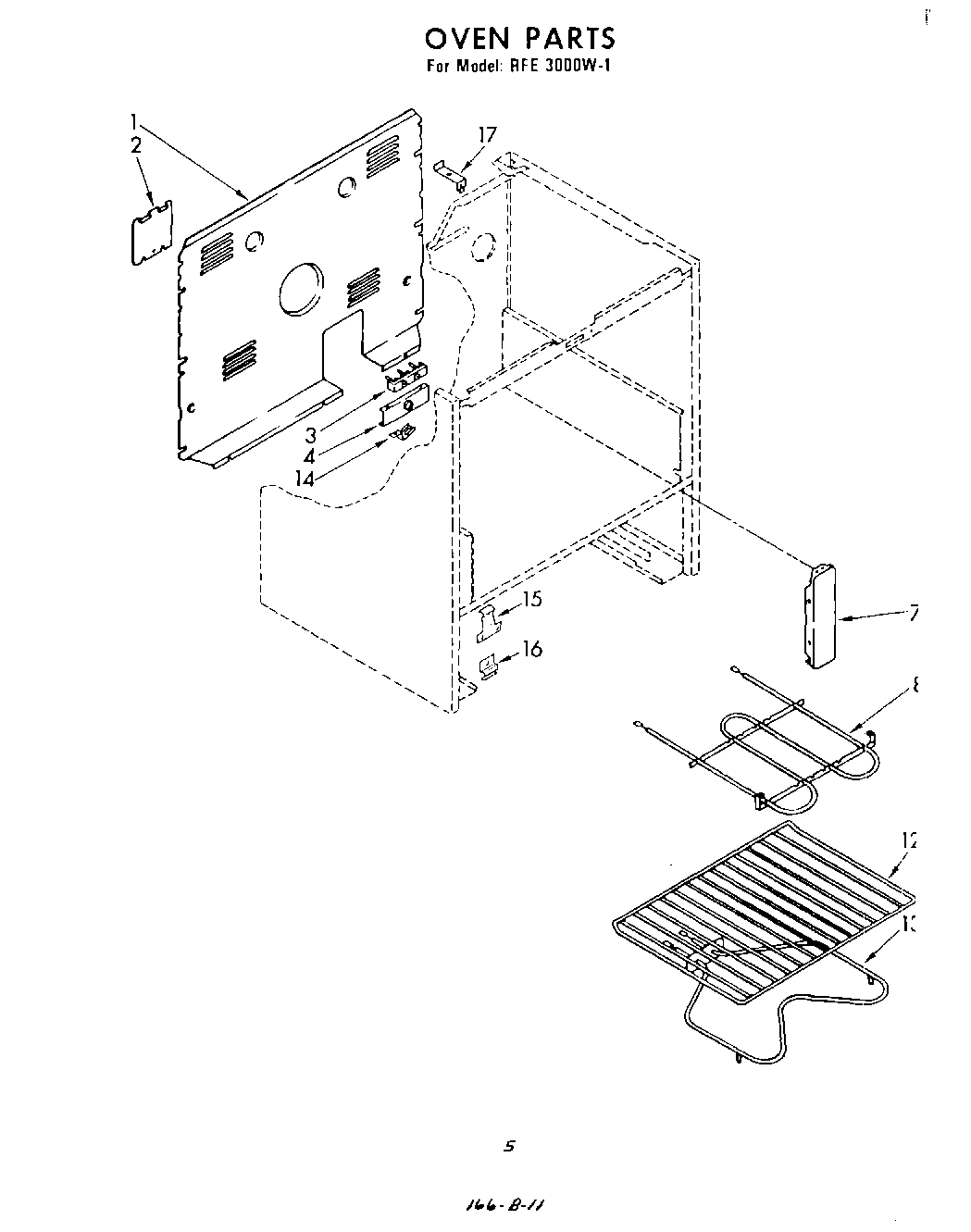

RFE3000W1 05 – LIT/OPTIONAL

Products

Position	Product
1	Cover, Rear
2	Cover, Service
2	WP308544 Whirlpool Screw
3	W10841059 Whirlpool Screw
3	WP112432 Whirlpool Nut Assembly
3	WP8203546 Whirlpool Terminal Block
4	Bracket, Service
7	Bracket, Mounting (2)
8	W11656009 Whirlpool Broil Element
12	WPL 308173
13	ELMNT-BAKE
13	Screw, 10-32 x 5/8 (4)
14	WPL 308498
14	SCREW
15	Panel, Spring (2)
16	WPL 307957
17	WPL 308500
17	WPL 308494
17	WPL 799351
17	WPL 253883
17	WPL 308244
17	WPL 253882
17	Wire, 14 Ga. (White) (25 Ft.)
17	Wire, 18 Ga. (Red) (25 Ft.)
17	Wire, 18 Ga. (White) (25 Ft.)
17	WPL 253895
17	WPL 253901
17	WPL 253900
17	WPL 253897
17	WPL 253894
17	WPL 253893
17	WPL 980498
17	Grease
17	350942 Whirlpool Spray Paint
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	511873 Whirlpool Refrigerator Paint
17	Enamel, Black (1 Qt. Uncut)
17	WPL 799832
17	Leveler (Thinner) (2oz.)
17	Enamel, New Avocado (1 Qt. Uncut)
17	WPL 309102
17	Paint, Spray 13 Oz. (Avocado)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	72032 Whirlpool Touch Up Paint Black
17	285006 Whirlpool Spray
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	350930 Whirlpool White Spray Paint
