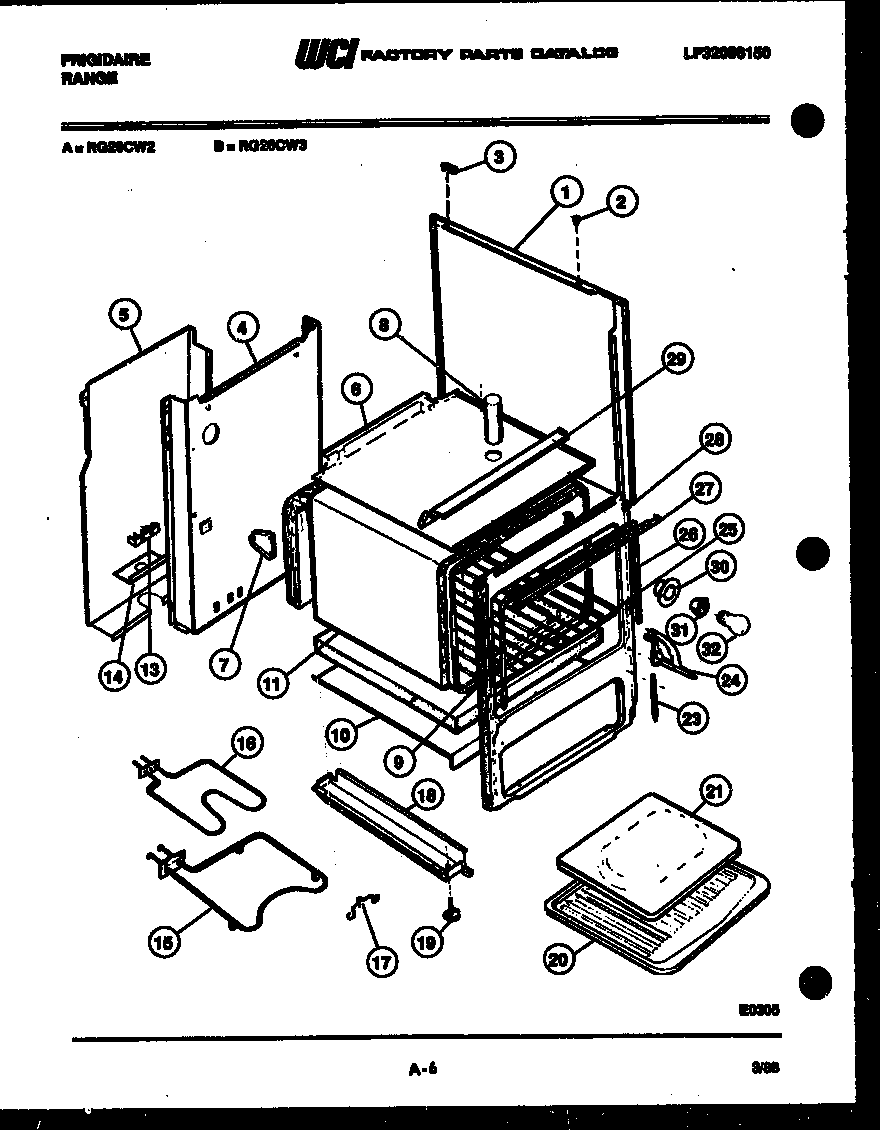

RG26CW3 06 – BODY PARTS

Products

Position	Product
*23042	WCI 08003146
1	BODYSIDE (WHITE) LH & RH
2	WCI 08008012
3	WCI 08068052
4	WCI 3016944
5	COVER-MAIN BACK
6	WCI 3016943
7	SUPPORT – REAR (2)
8	WCI 08013195
9	LINER-RIGHT SIDE
9D	LINER-OVEN BACK
9A	LINER-LEFTSIDE
9C	LINER-OVEN BTM
9B	WCI 3017600
10	PAN-INSULATION
11	WCI 3016946
12	WCI 3016947
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDULT
15	WCI 08013863
16	WCI 08011449
17	WCI 08011486
18	BASE-RAIL (2)
19	SCREW – LEVELING (4)
20	WCI 3016973
21	BROILER GRID
23	WCI 08011485
24	HINGE – DOOR RH
24	318348801 Frigidaire Oven Left Side Door Hinge
25	WCI 3016128
26	SEAL – DOOR
27	WCI 08014024
28	WCI 3017601
29	WCI 08014014
30	CUP – OVEN LIGHT
31	316116400 Frigidaire Oven Light Socket
32	316538904 Frigidaire Oven Lamp Light
