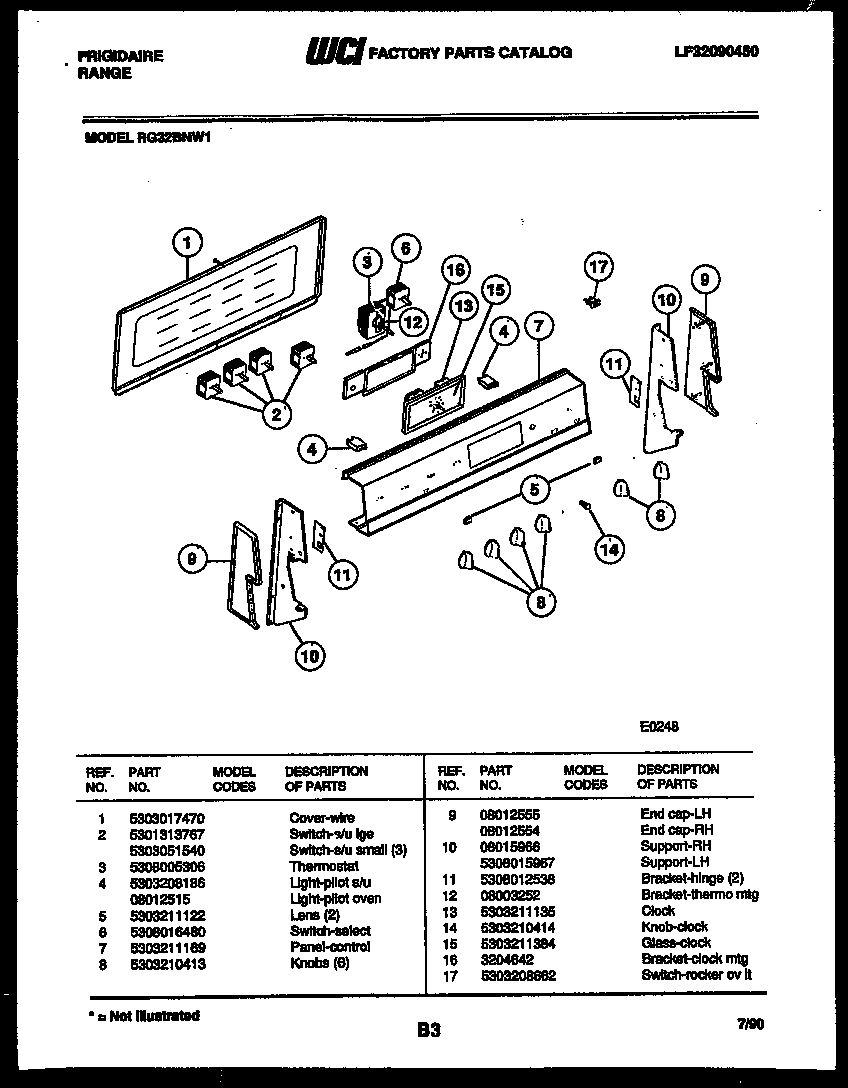

RG32BNL1 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	LIGHT - PILOT SURFACE UNIT
4A	IND LITE OVEN
5	LENS (3)
6	SWITCH-SELECTOR
7	WCI 5303211169
8	KNOBS-GRAY & BURGUNDY (6)
9	WCI 08012555
9A	WCI 08012554
10	SUPPORT RH
10A	SUPPORT - LH
11	BRACKET, HINGE (2)
12	WCI 08003252
13	WCI 5303211135
14	KNOB - CLOCK (3) - GREY
15	WCI 5303211384
16	BRACKET-MTG CLOCK
17	5308015487 Frigidaire Switch-Oven Light
