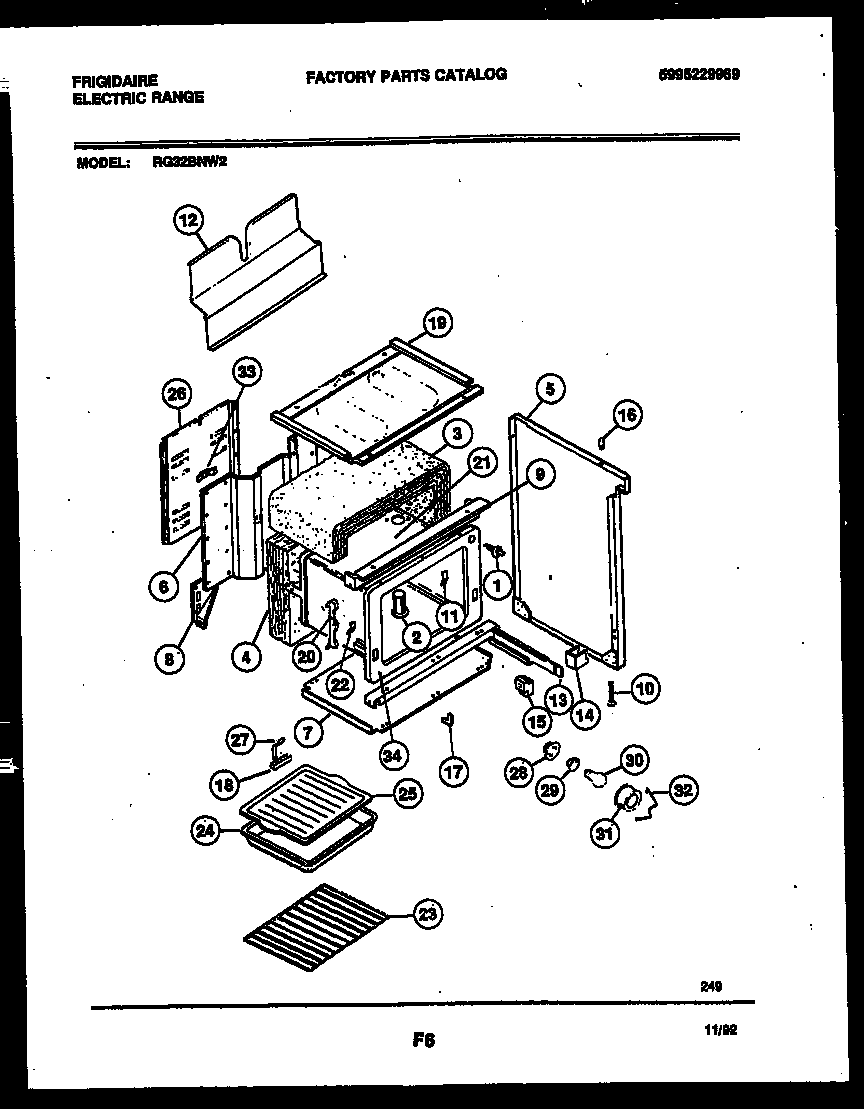

RG32BNL2 06 – BODY PARTS

Products

Position	Product
*70812	5303284616 Frigidaire Range Bulb Clip Thermostat
*70812	ANTI-TIP KIT, (NON-ILLUSTRATED)
*70812	WCI 19100210094
*70812	WCI 3203574
1	WCI 5301314211
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	WCI 5303274967
5B	SIDE PANEL RH-ALMD
5C	SIDE PANEL LH-ALMD
6	PANEL-BACK
7	WCI 3206275
8A	WCI 3017482
8	WCI 3017481
9	WCI 5303207391
10	SCREW-LEVELING (4)
11	WCI 3202082
12	WCI 3206095
13A	RAIL, DRAWER LH
13	WCI 5308015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3019063
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	PANEL – SUBTOP
20	WCI 3201631
21	OVEN LINER
22	WCI 3201632
23	316067902 Frigidaire Oven Rack
24	WCI 5303292688
25	GRILLE – BROILER
26	WIRE, COVER
27	PLATE=GROUND STRAP
28	WCI 5303271606
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32	RETAINER-LENS
33	WCI 3016281
34	FRONT – OVEN
