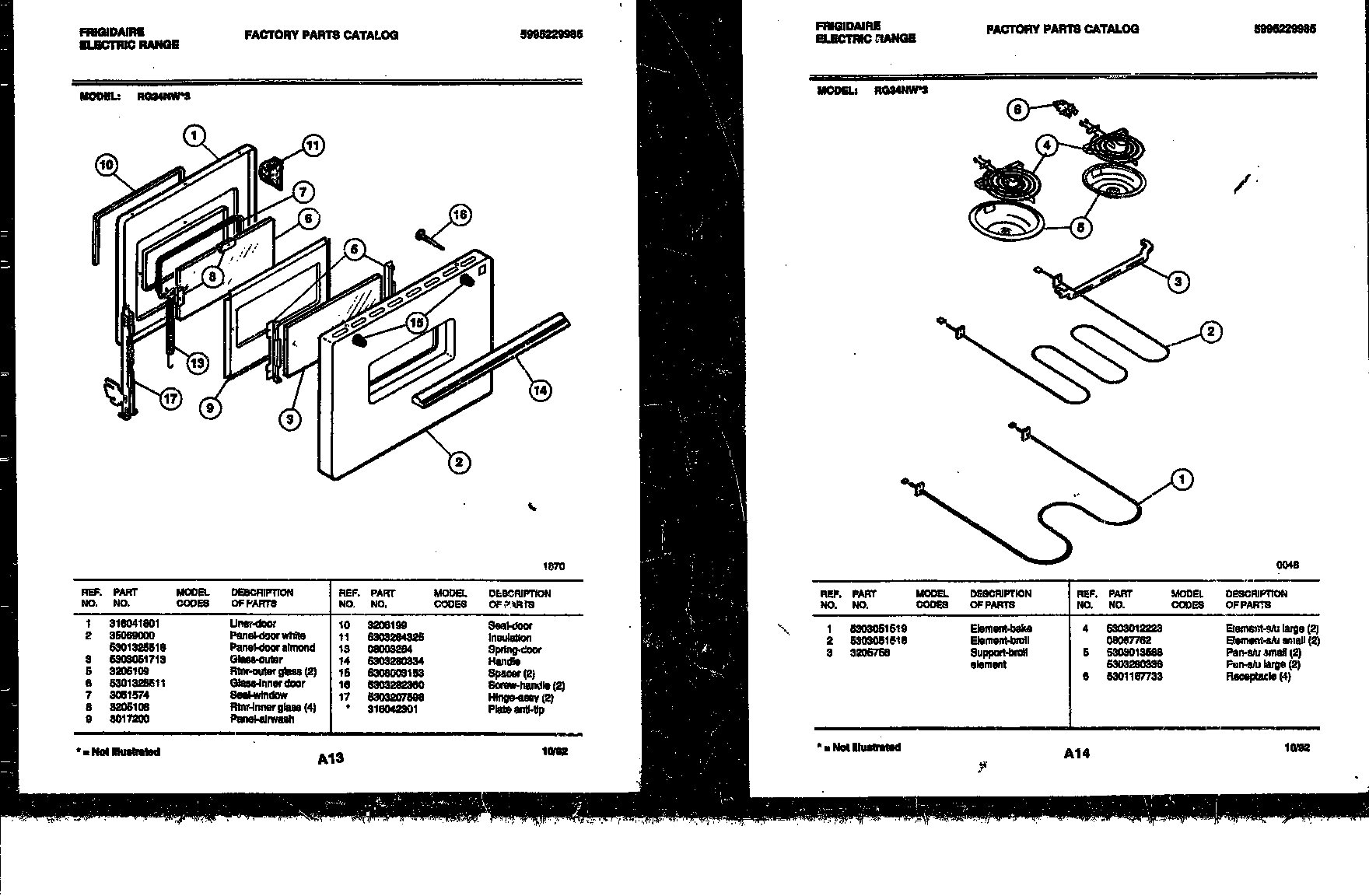

RG34NW3 04 – DOOR/BROILER PARTS

Products

Position	Product
A5	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
A3	WCI 3205756
*69166	WCI 316042301
A6	5303935058 Frigidaire Oven Burner Receptacle Kit
NI	318372211 Frigidaire Oven 6" Electric Range Burner Kit
A4	316442301 Frigidaire Oven 8 Coil Element 2600W
A1	5303051519 Frigidaire Oven 2600W Bake Element
A2	5303051516 Frigidaire Broil Element
NI	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
1	LINER – DOOR
2	PANEL-DOOR WHITE
3	WCI 5303051713
5	RTNR – OUTER GLASS (2)
6	GLASS INNER DOOR
7	SEAL WINDOW
8	RTNR – INNER GLASS (4)
9	WCI 3017200
10	WCI 3206199
11	WCI 5303284325
13	WCI 08003264
14	HANDLE
15	SPACER (2)
16	SCREW-HANDLE (2)
17	HINGE – ASSY (2)
