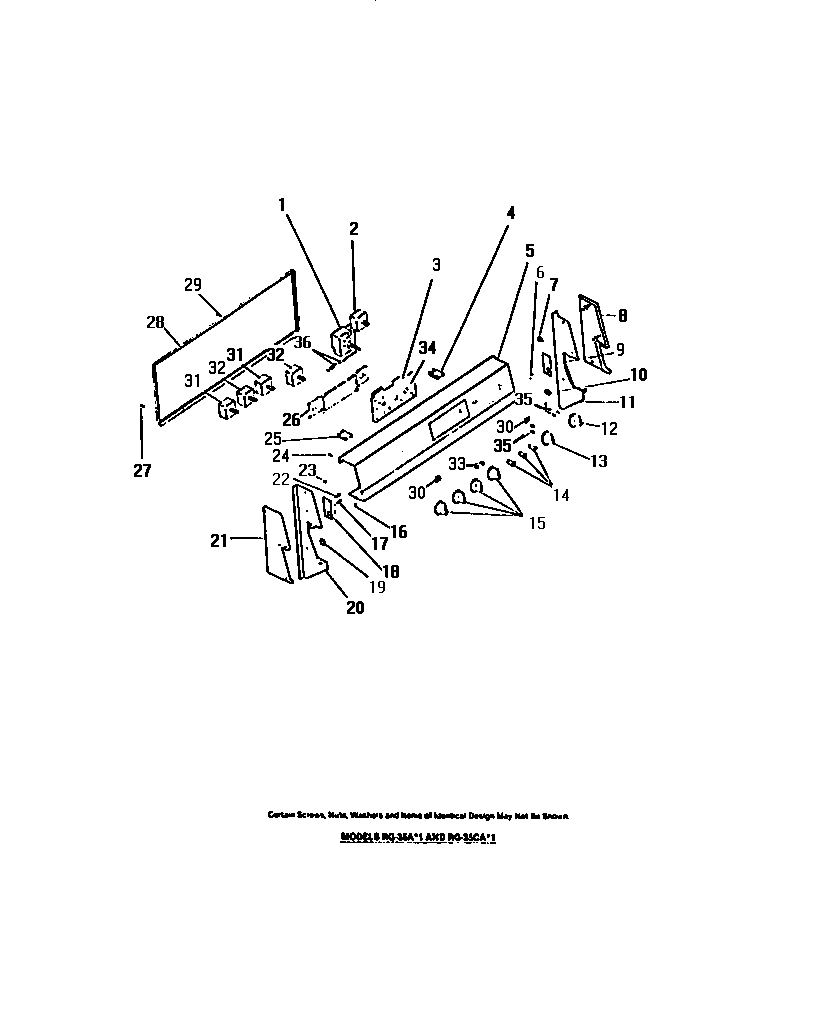

RG35AH1 06 – CONTROL PANEL, CONTROLS

Products

Position	Product
1	WCI 8016481
2	WCI 8015934
3	WCI 8016483
4	WCI 8008876
5	WCI 8016518
8	WCI 8012554
11	WCI 8012539
14	KNOBS-COOK-MASTER (3)
15	KNOB, SURFACE UNITS (4)
16	SCREWS (2)
18	WCI 8012538
20	WCI 8012540
21	WCI 8012555
22	SCREW, GROUND WIRE
23	WCI 8012553
24	SCREWS (2)
25	LIGHT, PILOT
26	BRACKET
28	WCI 8012513
29	SCREWS (2)
30	WCI 8012578
32	SWITCH, 8`` SURFACE UNIT (2)
33	WCI 8003135
34	WCI 8012708
35	WCI 8014214
36	WCI 8008694
