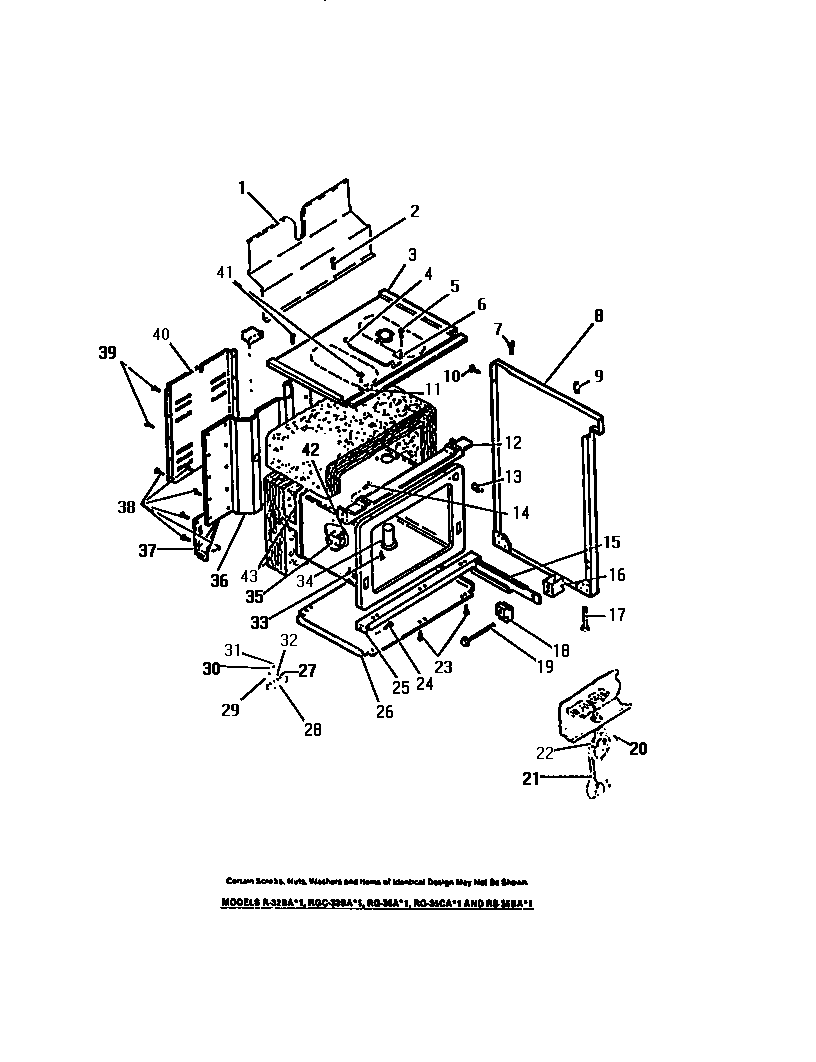

RG35AL1 12 – OVEN LINER, SIDE PANELS – Aparts

RG35AL1 12 – OVEN LINER, SIDE PANELS

Products

Position	Product
1	WCI 8015738
3	WCI 8012542
4	WCI 8003079
6	WCI 8003316
7	SCREWS (2)
8A	PANEL, RH SIDE, ALMOND
8	PANEL, LH SIDE, ALMOND
9	BUMPERS (4)
11	WASHERS (2)
12	WCI 8011092
13	WCI 8015948
15A	RAIL, RH DRAWER
15	RAIL, LH DRAWER
16	SPACERS (2)
17	WCI 8005299
18	GUIDES (2)
19	SCREWS (2)
22	WCI 8015862
25	WCI 8002872
26	WCI 8016482
27	WASHER (6)
28	BLOCK
29	SCREWS (2)
30	WCI 8003146
31	SCREW, GROUND WIRE
32	WCI 8003148
33	SCREWS (2)
34	WCI 8012541
35	WCI 8002854
36	WCI 8015749
37	GUSSETS, LH
37A	GUSSETS, RH
40	WCI 8015750
41	SCREWS (2)
42	SCREW
