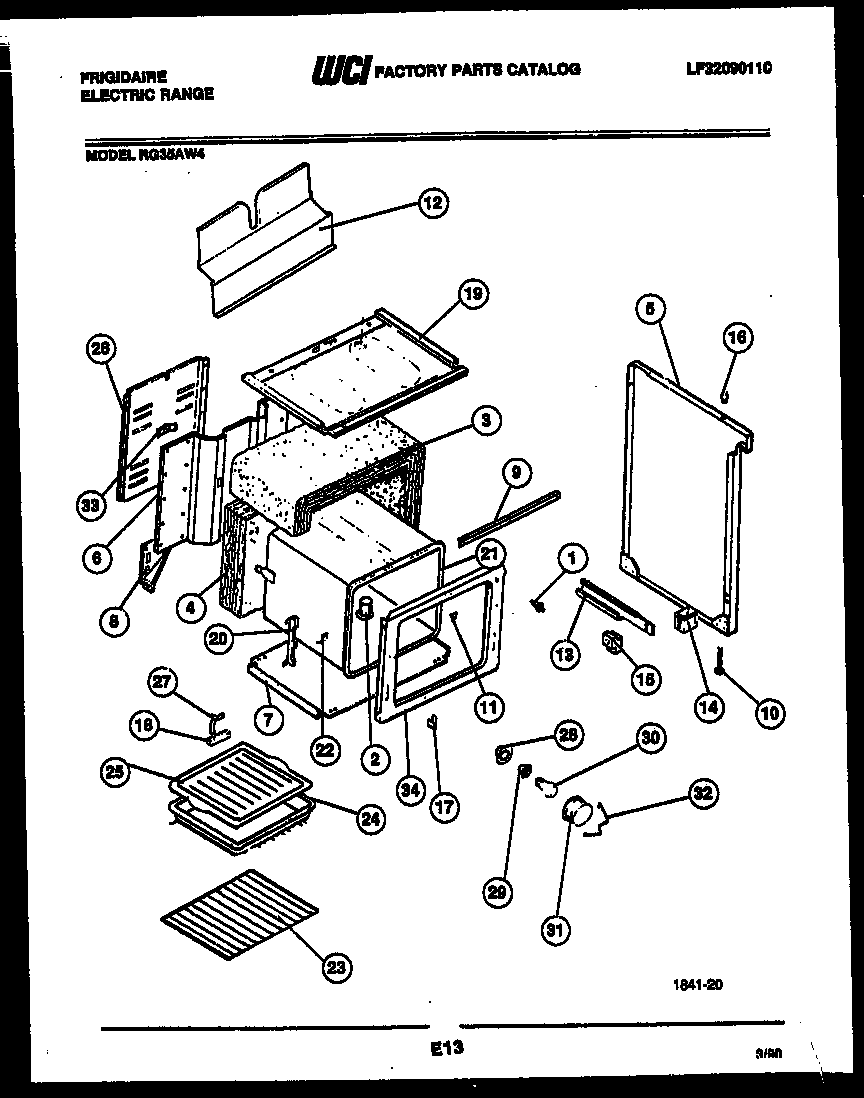

RG35AL4 06 – BODY PARTS

Products

Position	Product
1	WCI 5301314211
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION
5A	SIDE PANEL LH-ALMD
5	SIDE PANEL RH-ALMD
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8A	WCI 3017482
9	WCI 5303207391
10	LEG, LEVELLER (4)
11	WCI 3202082
12	WCI 3206095
13A	RAIL, DRAWER LH
13	WCI 5308015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3019063
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	WCI 3201631
21	BODY-OVEN
22	WCI 3201632
23	316067902 Frigidaire Oven Rack
24	WCI 3205539
25	GRILLE, BROILER
26	WIRE, COVER
27	STRAP-GROUND
28	WCI 3051511
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32B	WCI 5300009126
32	RETAINER-LENS
32A	ANTI-TIP KIT, (NON-ILLUSTRATED)
33	WCI 3016281
34	WCI 5303207446
