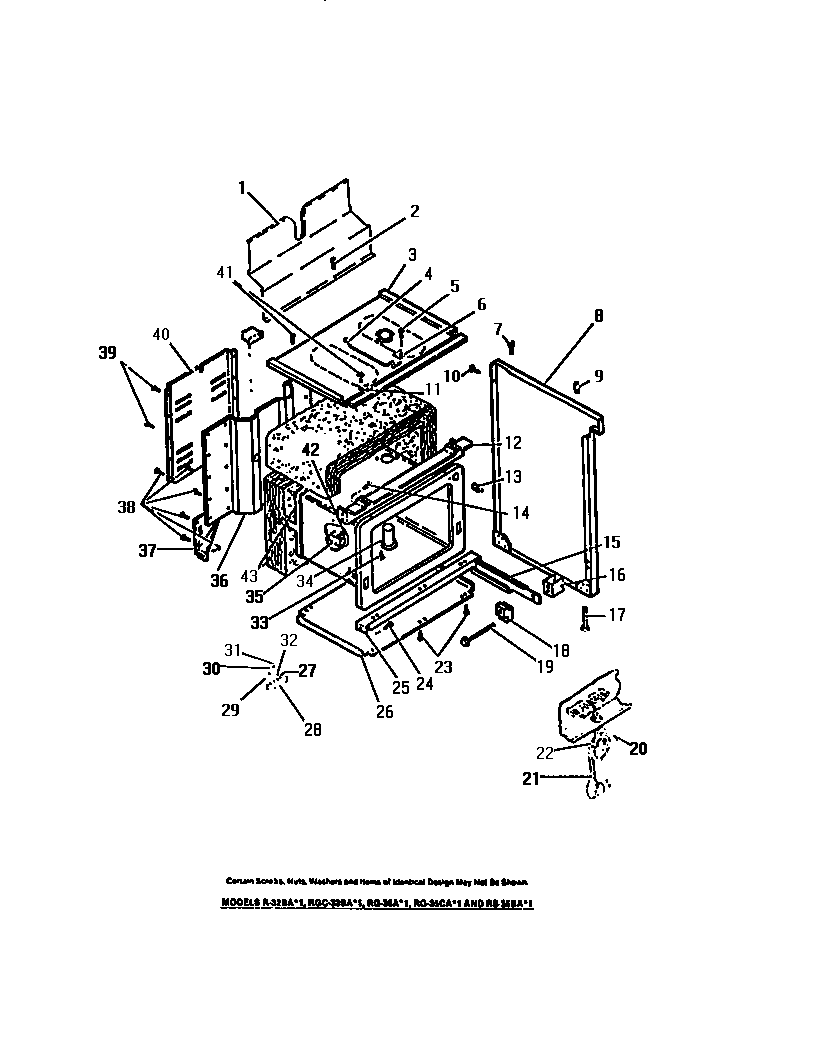

RG35CAL1 12 – OVEN LINER, SIDE PANELS

RG35CAL1 12 – OVEN LINER, SIDE PANELS

Written by

in

RG35CAL1 12 – OVEN LINER, SIDE PANELS

Products

PositionProduct
1WCI 8015738
3WCI 8012542
4WCI 8003079
6WCI 8003316
7SCREWS (2)
8APANEL, RH SIDE, ALMOND
8PANEL, LH SIDE, ALMOND
9BUMPERS (4)
11WASHERS (2)
12WCI 8011092
13WCI 8015948
15ARAIL, RH DRAWER
15RAIL, LH DRAWER
16SPACERS (2)
17WCI 8005299
18GUIDES (2)
19SCREWS (2)
22WCI 8015862
25WCI 8002872
26WCI 8016482
27WASHER (6)
28BLOCK
29SCREWS (2)
30WCI 8003146
31SCREW, GROUND WIRE
32WCI 8003148
33SCREWS (2)
34WCI 8012541
35WCI 8002854
36WCI 8015749
37GUSSETS, LH
37AGUSSETS, RH
40WCI 8015750
41SCREWS (2)
42SCREW
