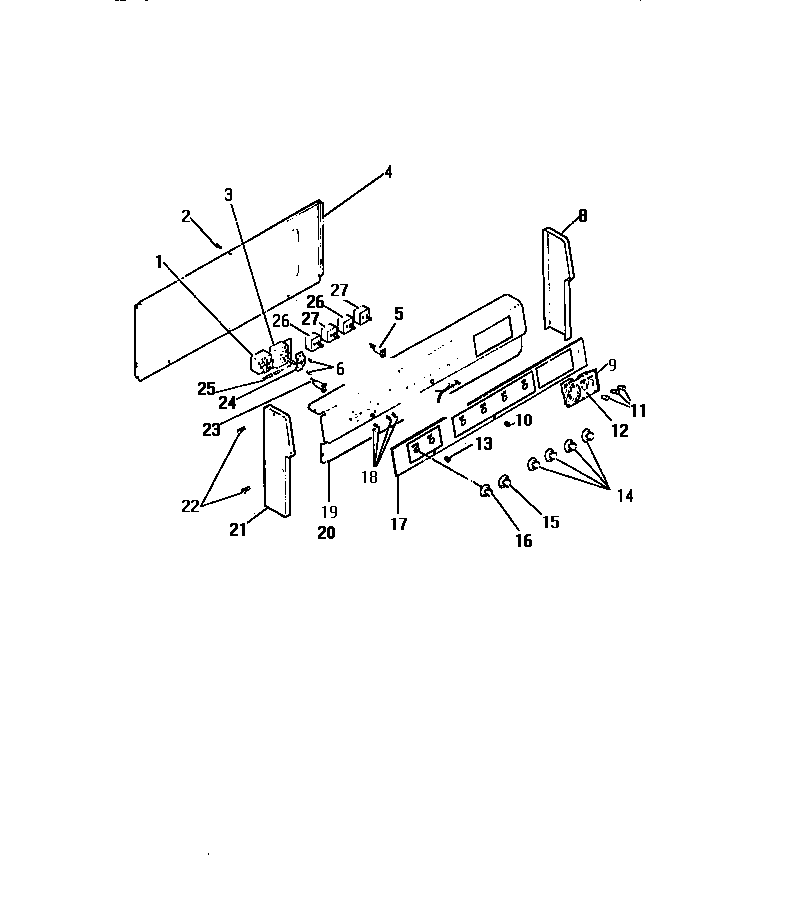

RG45CL0 03 – CONTROL PANEL, COOK-MASTER, SWITCHE

RG45CL0 03 – CONTROL PANEL, COOK-MASTER, SWITCHE

Written by

in

RG45CL0 03 – CONTROL PANEL, COOK-MASTER, SWITCHE

Products

Position	Product
1	SWITCH-BAKE, BROIL SELECTOR
2	SCREWS (2)
3	WCI 8005306
4	WCI 8012003
5	LIGHT, PILOT
6	WCI 8012251
7	WCI 8003135
8	WCI 8003234
9	WCI 8003276
11	KNOBS-COOK-MASTER (3)
12	WCI 8004154
13	LENS
16	KNOB, LEFT OVEN THERMOSTAT
17	WCI 8013444
18	SCREW (8)
20	WCI 8011988
21	WCI 8003235
22	WCI 8003129
23	PILOT LIGHT, OVEN, LEFT
24	WCI 8003252
25	WCI 8008694
27	SWITCH, 8“ SURFACE UNIT (2)
