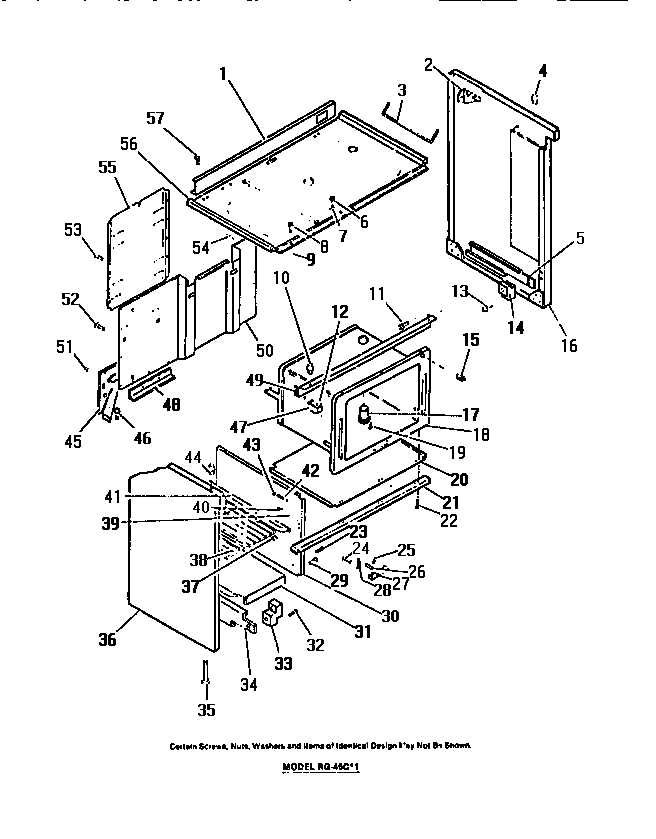

RG45CL1 07 – OVEN LINER, SIDE PANELS

RG45CL1 07 – OVEN LINER, SIDE PANELS

Written by

in

RG45CL1 07 – OVEN LINER, SIDE PANELS

Products

Position	Product
1	WCI 8016543
2	GUSSET (2)
3	WCI 8003079
5	RAIL, RH DRAWER
7	WASHERS (2)
8	SCREWS
9	NUTS (2)
12	SCREW
15	WCI 8015948
16	PANEL, RH SIDE, ALMOND
17	WCI 8003237
18	WCI 8015770
19	SCREWS (2)
20	WCI 8016482
21	WCI 8011954
24	SCREW, GROUND WIRE
25	WCI 8003148
27	BLOCK
28	WCI 8003146
30	WCI 8016542
31	WCI 8011951
32	SCREWS (2)
33	GUIDES (2)
34	RAIL, LH DRAWER
35	SCREWS LEVELING (4)
36	PANEL, LH SIDE, ALMOND
38	WCI 8011960
39	WCI 8014220
41	WCI 8011959
42	WCI 8011945
43	WCI 8003174
44	BUMPERS (4)
45A	WCI 8015976
45	WCI 8015977
47	BRACKET
48	WCI 8011953
49	WCI 8013442
50	WCI 8015772
55	WCI 8015750
56	WCI 8011947
57	SCREWS (2)
