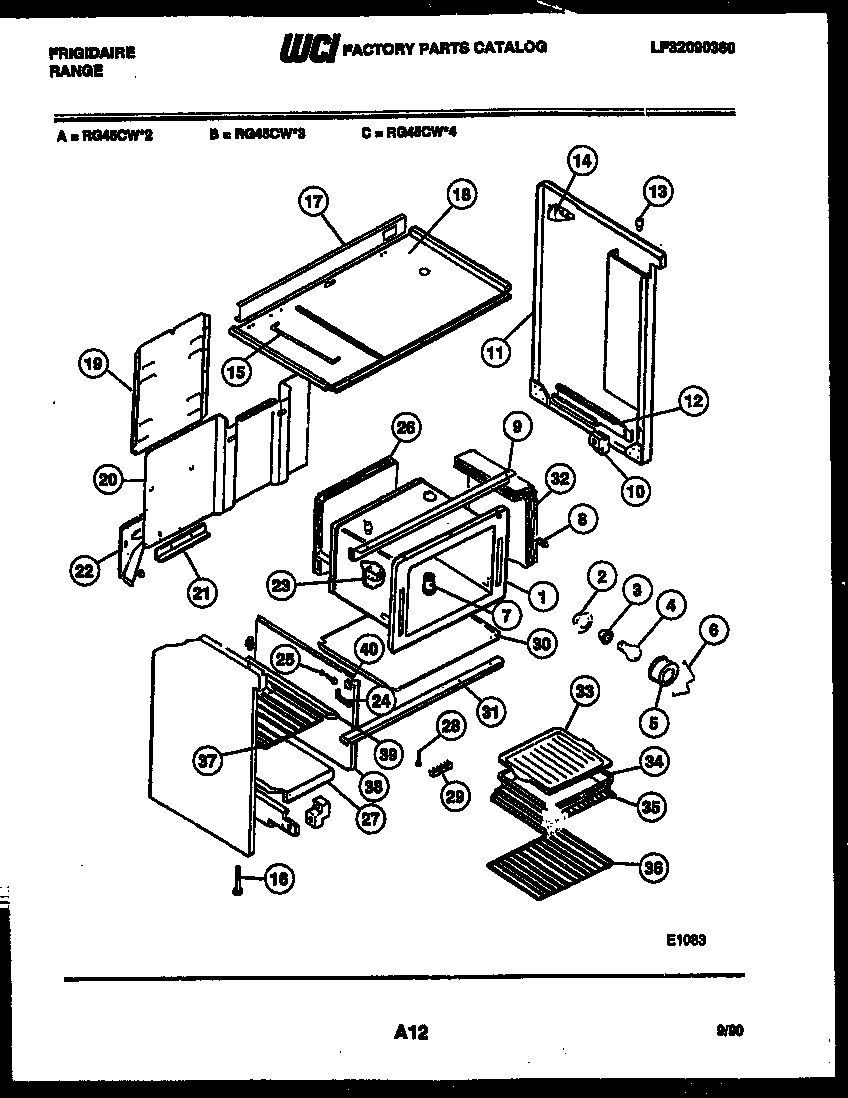

RG45CL2 06 – BODY PARTS

Products

Position	Product
*99015	WCI 3934058
1	WCI 5303203691
2	HOUSING – LIGHT
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
7	WCI 08003237
8	SWITCH-DOOR
9	WCI 08013442
10	GUIDE-DRAWER FRNT (2)
11A	SIDE PANEL LH-ALMD
11	SIDE PANEL RH-ALMD
12A	GLIDE – DWR LH
12	GLIDE – DWR RH
13	BUMPER, COOKTOP (4)
14	GUSSET – BKGRD (2)
15	ROD-TOP SUPPORT
16	SCREW-LEVELING (4)
17	WCI 08016546
18	WCI 08011947
19	PANEL – WIRE COVER
20	WCI 3204827
21	SUPPORT
22	WCI 3204822
22A	WCI 3204823
23	WCI 08014653
24	BRACKET, DOOR STRIKE
25	WCI 08011945
26	INSULATION
27	BOTTOM COMPLETE
28	WCI 08003146
29	5304409888 Frigidaire Oven Terminal Block with Hardware
30	WCI 3203574
31	Channel,oven support ,front
32	INSULATION – OVEN WRAP
33	WCI 3205538
34	WCI 3205539
35	RACK-OFFSET
36	316067902 Frigidaire Oven Rack
37	RACK – COMPLETE
38	PARTITION – CENTER
39	WCI 08011959
