RG533DH2 02 – OVEN DOOR

RG533DH2 02 – OVEN DOOR

Written by

in

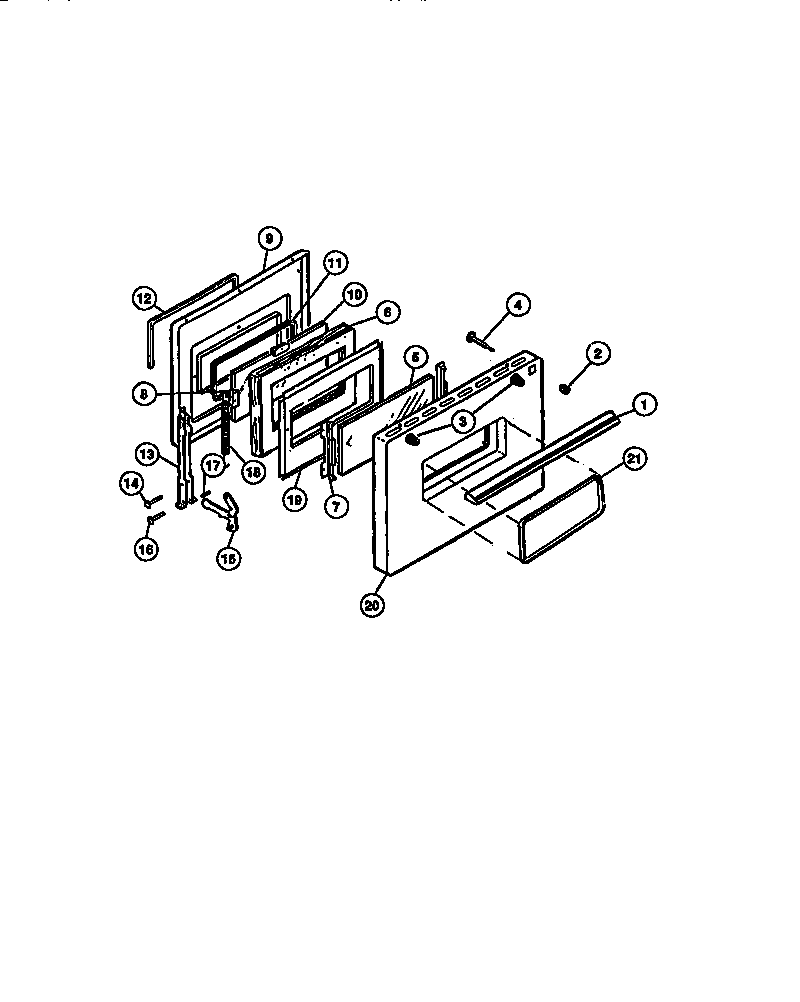

RG533DH2 02 – OVEN DOOR

Products

PositionProduct
1HANDLE
2COLLAR ACTUATOR
3SPACER (2)
4ACTUATOR-PLUNGER
5WCI 3051580
6INSULATION
7RETAINER – OTR GL (2)
8RETAINER – GLASS (4)
9WCI 5303204569
10GLASS INNER DOOR
11SEAL WINDOW
12GASKET-OVEN DOOR
13CHANNEL (2)
14WCI 3051571
15DOOR HINGE ARM
16AXLE – HINGE (2)
17ROLLER KIT
18WCI 08003264
19WCI 3017200
20WCI 5301325497
21MOULDING – GLASS
