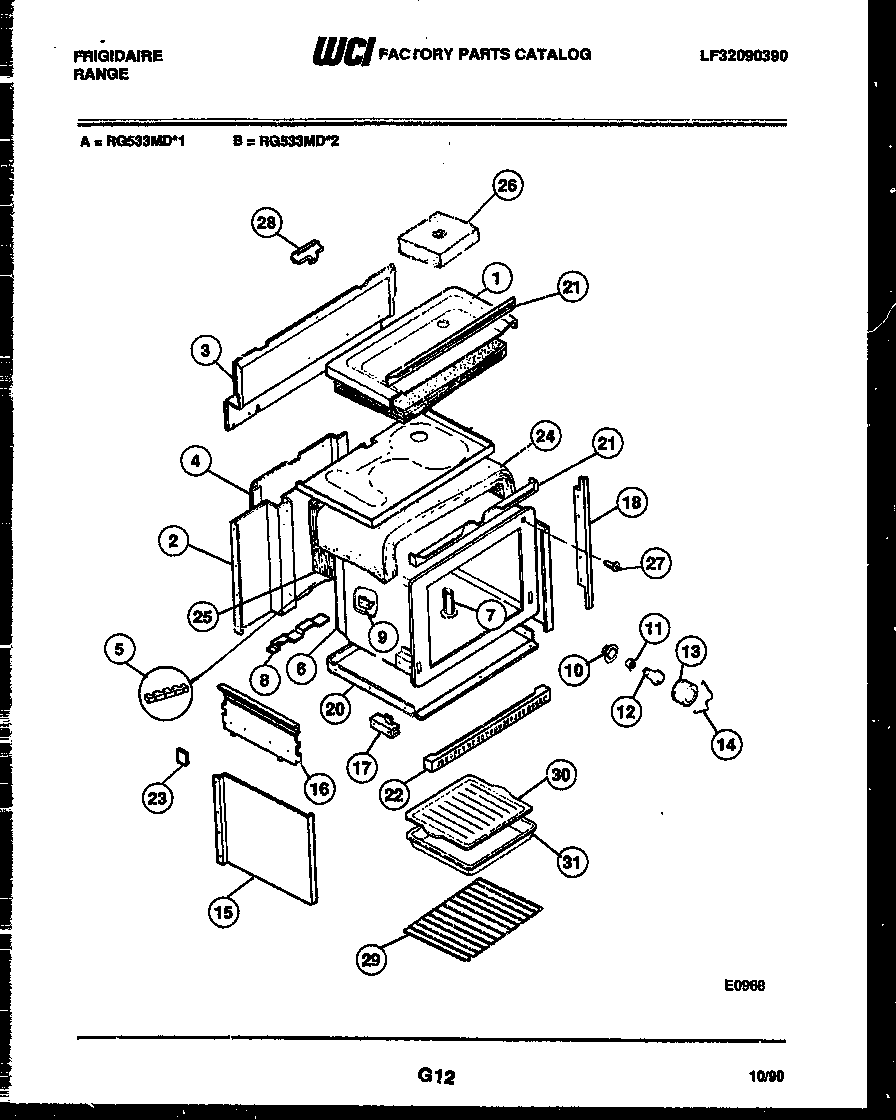

RG533MDW2 05 – BODY PARTS

Products

Position	Product
*35394	WCI 3203578
*35394	RIVET, POP
1	WCI 5303051553
2	BACK
3	BACK-UPPER
4	PANEL – WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3204607
6	LINER, OVEN
7	WCI 08003333
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	HOUSING – LIGHT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
17	TRIM-FRONT (2)
17	WCI 3051527
17	WCI 3051528
20	RETAINER, INSUL BTM
21	WCI 5308008693
22	WCI 8012249
23	PLATE-FILLER
24	INSULATION – OVEN WRAP
25	INSULATION
26	INSUL.-VENT TUBE
27	SWITCH-DOOR
28	BRACKT-HNG SUPT
29	316067902 Frigidaire Oven Rack
30	WCI 5303131356
30	WCI 5303019066
31	WCI 5303207208
31	WCI 3200723
