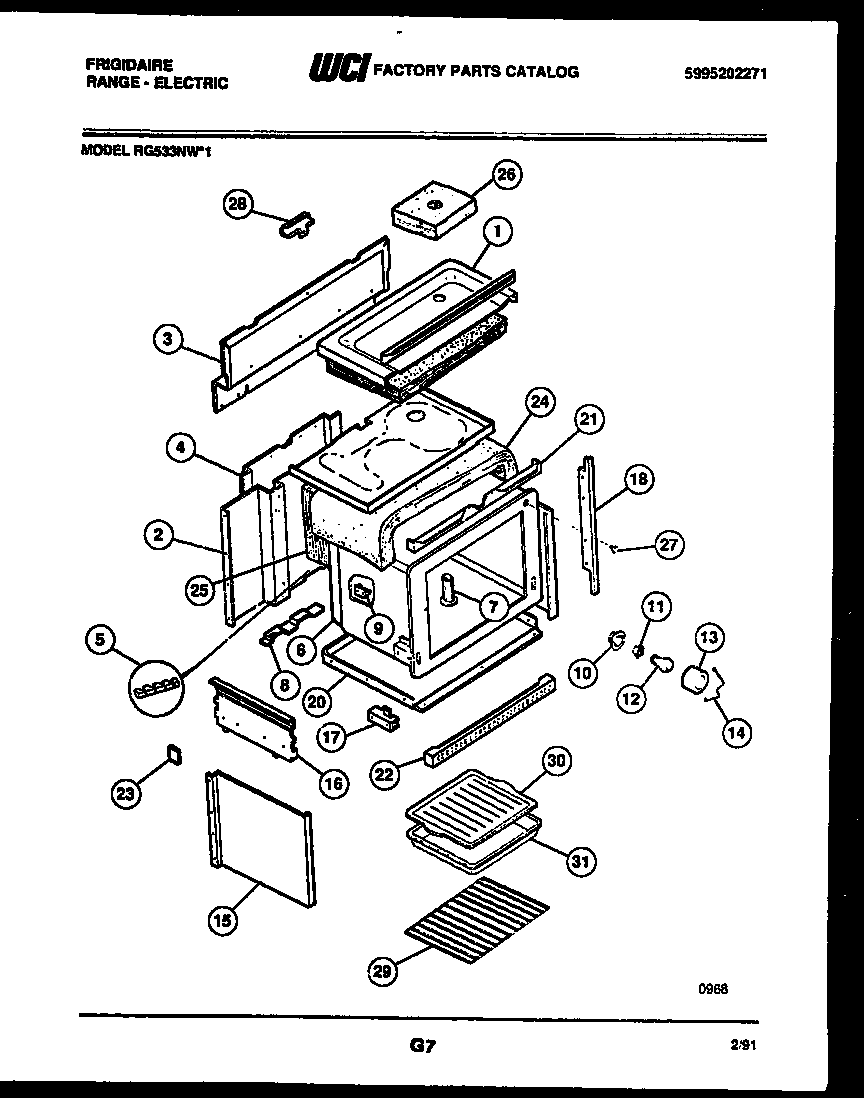

RG533NW1 05 – BODY PARTS

Products

Position	Product
*40826	RIVET-POP, WARING-PLATE
*40826	WCI 3203578
*40826	WCI 19100210116
1	WCI 5303051553
2	BACK
3	BACK-UPPER
4	PANEL – WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
7	WCI 08003333
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
17A	WCI 3051528
17	WCI 3051527
18	TRIM-FRONT (2)
20	RETAINER, INSUL BTM
21	WCI 5308008693
22	WCI 08012249
23	PLATE-FILLER
24	INSULATION – OVEN WRAP
25	INSULATION
26	INSUL.-VENT TUBE
27	WCI 5301314211
28	BRACKT-HNG SUPT
29	316067902 Frigidaire Oven Rack
30	WCI 5303131356
31	PAN-BROILER
