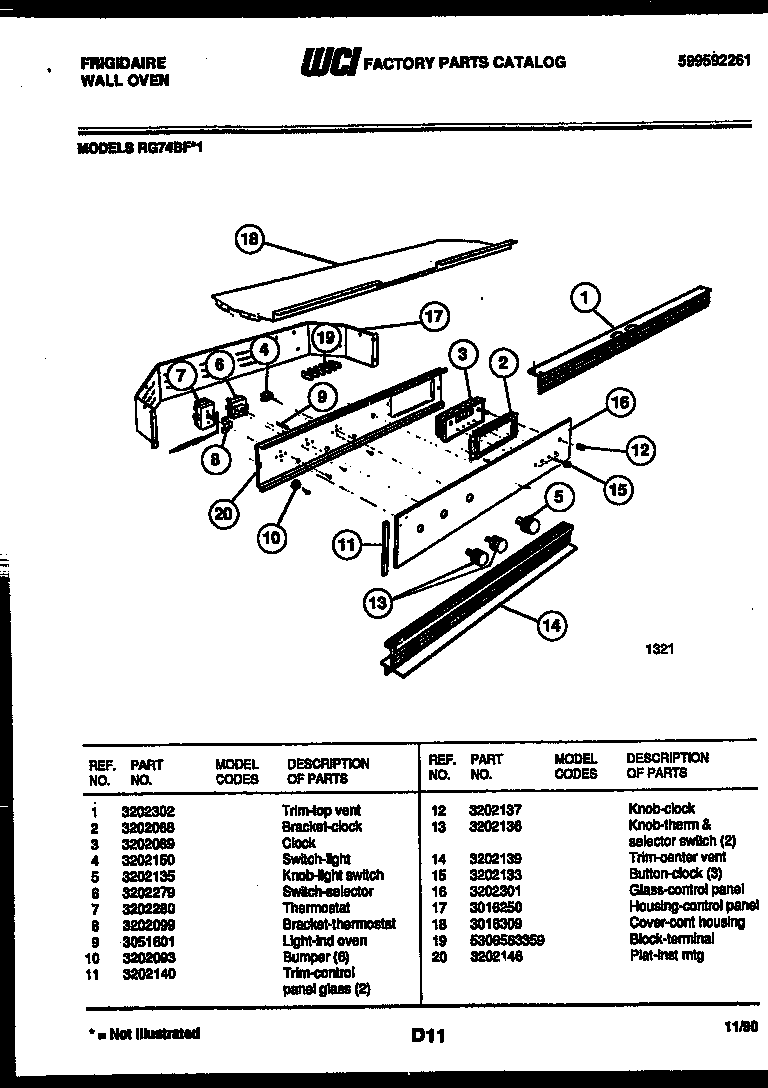

RG74BFB1 02 – CONTROL PANEL

Written by

Products

Position	Product
1	TRIM-TOP
2	WCI 3202088
3	WCI 3202089
4	WCI 3202150
5	WCI 3202135
6	WCI 3202279
7	WCI 3202280
8	BRACKET-THERMOSTAT
9	LIGHT-IND-LOWER OVEN
10	WCI 3202093
11	TRIM-CONTROL PNL GLASS
12	WCI 3202137
13	KNOB-SELECTOR & THERMOSTAT
14	WCI 3202139
15	BUTTON-CLOCK (4)
16	WCI 3202301
17	WCI 3016250
18	COVER – CONT HOUSING
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-INST MTG
