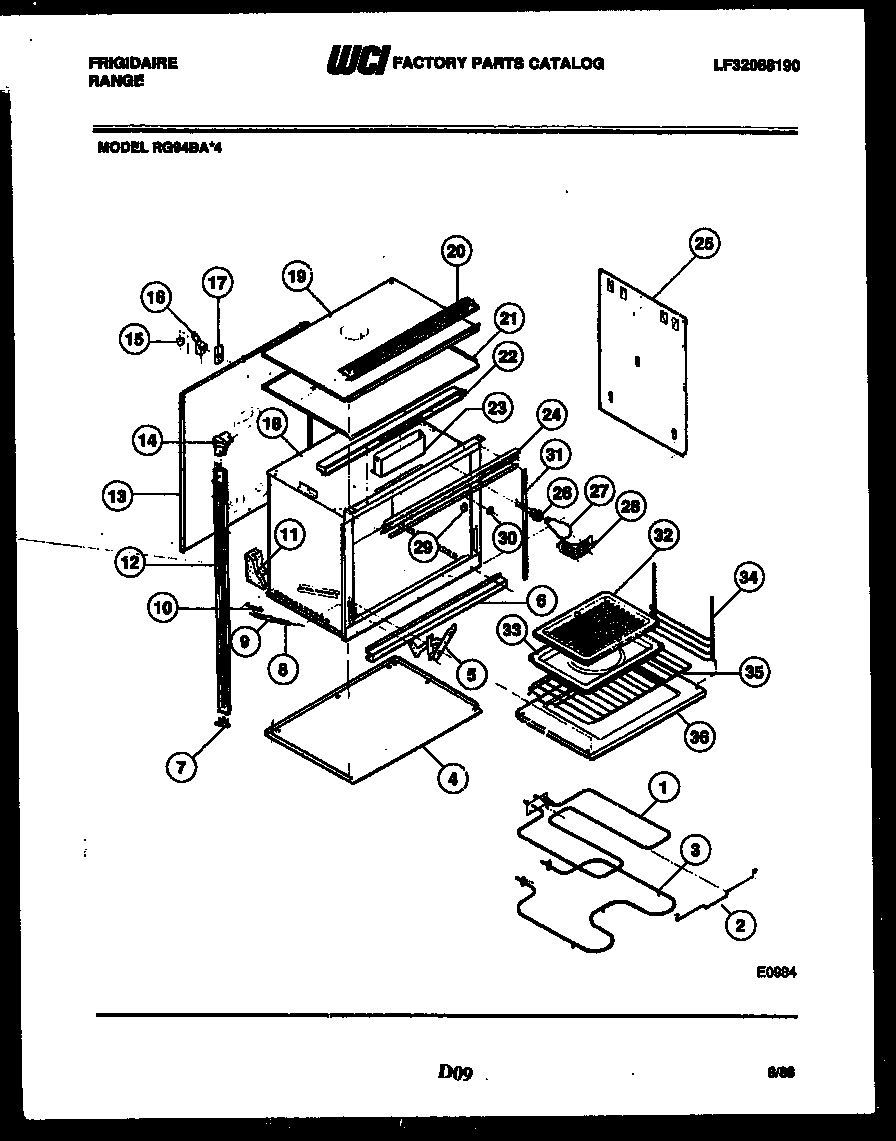

RG94BAB4 04 – BODY PARTS

Products

Position	Product
*15307	WCI 3200320
*15307	WCI 3200324
*15307	INSULATION,TOP & SIDES
*15307	INSULATION,OVEN BACK & TOP
1	220T017P02 Frigidaire Broil Element
2	WCI 08010470
3	WCI 08012635
4	WCI 3018719
5	HINGE LH
5A	HINGE RH
6	WCI 08012636
7A	CAP-BOTTOM TRIM RH
7	CAP-BOTTOM TRIM LH
8	WCI 08012780
9	SLEEVE-SPRING (2)
10	BRACKET-SPRING (2)
11	WCI 3200325
12A	WCI 08012641
12	WCI 08012640
13	WCI 08012778
14	CAP-CORNER TOP (2)
15	BUSHING
16	CONNECTOR-CONDUIT
17	WCI 08012118
19	WCI 3018718
20	WCI 08012639
21	WCI 3200312
22	BOX-FLUE HORIZONTAL
23	BOX-FLUE VERTICAL
24	WCI 08012642
25	WCI 08012791
26	RECEPTACLE OVEN LIGHT
27	316538904 Frigidaire Oven Lamp Light
28	WCI 08015362
29	5303284616 Frigidaire Range Bulb Clip Thermostat
30	WCI 08012794
31	WCI 08012785
31A	SEAL-DOOR TOP
32	WCI 08016608
33	BROILER PAN
34	GLIDE-OVEN RACK
35	WCI 08012158
36	WCI 08016975
