RGA520EWB RANGE PARTS – Aparts

RGA520EWB RANGE PARTS

Products

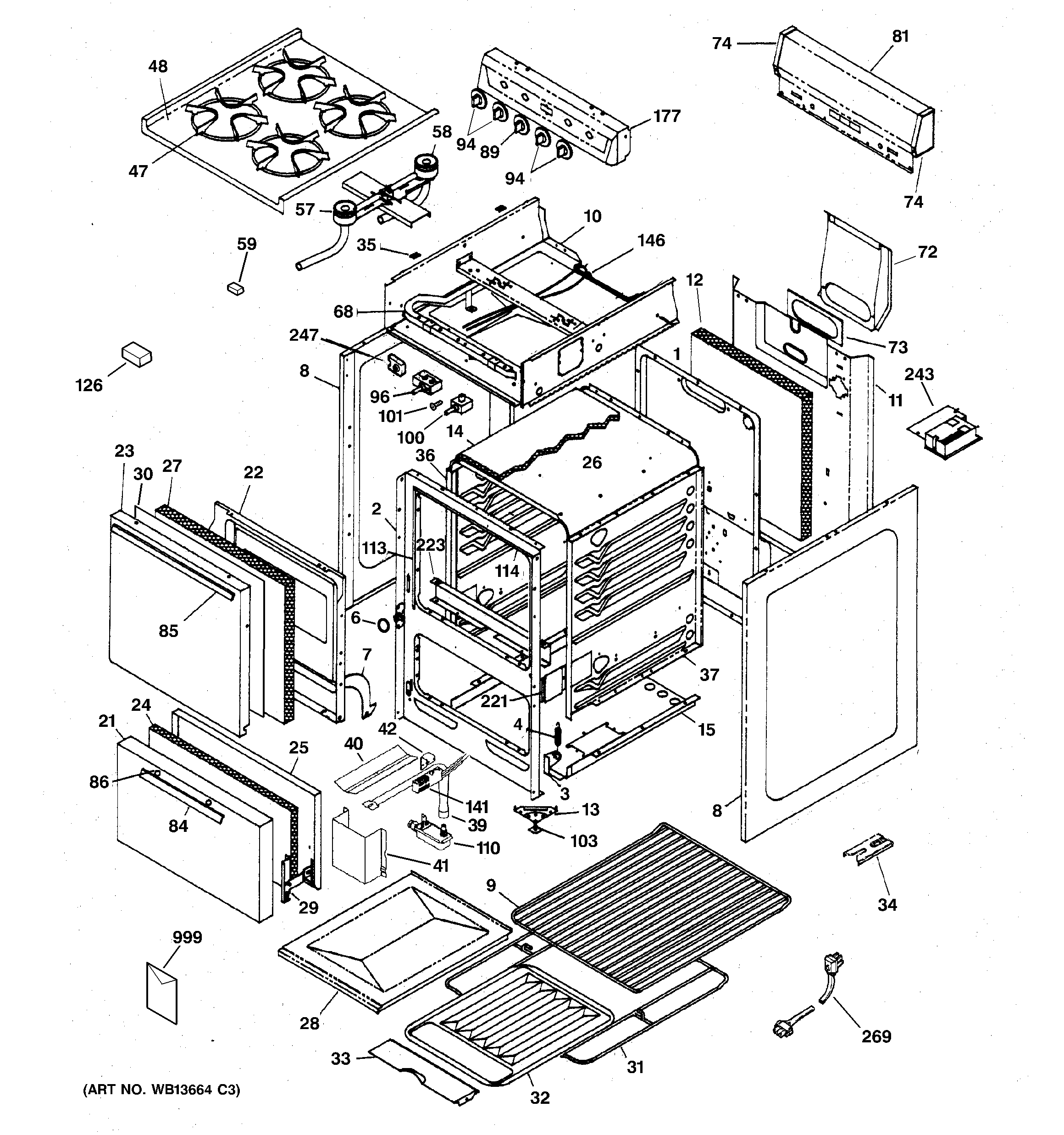

Position	Product
1	GEN WB02X8542
2	GEN WB56X7004
3	GEN WB02X7894
4	GEN WB02X7893
6	HINGE PLATE ASM.
7	HINGE ASM, OVEN DOOR
7	GEN WB10X5213
8	GEN WB63X10053
8	SIDE, PANEL WH
9	GEN WB48X5094
10	GEN WB49X5472
11	MAIN BACK
12	GEN WB02X8537
13	GEN WB02X8533
13	GEN WB02X8534
13	GEN WB02X8532
14	GEN WB02X8538
15	GEN WB49X5582
21	GEN WB56X10632
21	GEN WB56X10631
22	LINING, OVEN DOOR
23	GEN WB56X10575
23	DOOR PANEL BISQUE
24	GEN WB02X8539
25	GEN WB55X5402
26	GEN WB53X5163
27	GEN WB55X10781
28	GEN WB39X10007
29	GEN WB10X5211
29	GEN WB10X5212
30	GEN WB02X11116
31	GEN WB48X5110
32	GEN WB49X5584
33	GEN WB49X5583
34	GEN WB06X0103
35	NYLON SPACER,TOP LOCATOR
36	GEN WB53X5161
37	GEN WB53X5362
39	GEN WB28X10022
40	GEN WB28X10023
41	GEN WB02X11206
42	GEN WB02X11205
47	GEN WB32X5110
48	GEN WB62X10043
48	GEN WB62X5461
57	GEN WB28X5047
58	GEN WB28X5049
59	GEN WB21X10135
68	GEN WB02X11207
72	GEN WB02X8548
73	GEN WB02X8549
74	GEN WB07X7331
74	GEN WB07X7330
81	GEN WB07X7397
81	GEN WB07X10908
84	GEN WB15X10207
85	GEN WB15X10205
86	SPACER HANDLE
89	GEN WB03X10274
94	GEN WB03X10272
96	GEN WB21X10139
100	GEN WB02X5346
101	GEN WB01X10314
103	GEN WB01X5789
110	GEN WB21X10137
113	GEN WB02X7891
114	GEN WB02X7892
126	GEN WB21X5350
126	GEN WB21X5352
141	GEN WB21X10140
146	GEN WB02X11204
177	GEN WB07X10909
177	GEN WB07X7348
221	COVER, SPRING
223	GEN WB02X8536
243	GEN WB20X10036
247	GEN WB21X5341
269	GEN WB18X10254
999	GEN 49-8760
