RGA524EW RANGE PARTS – Aparts

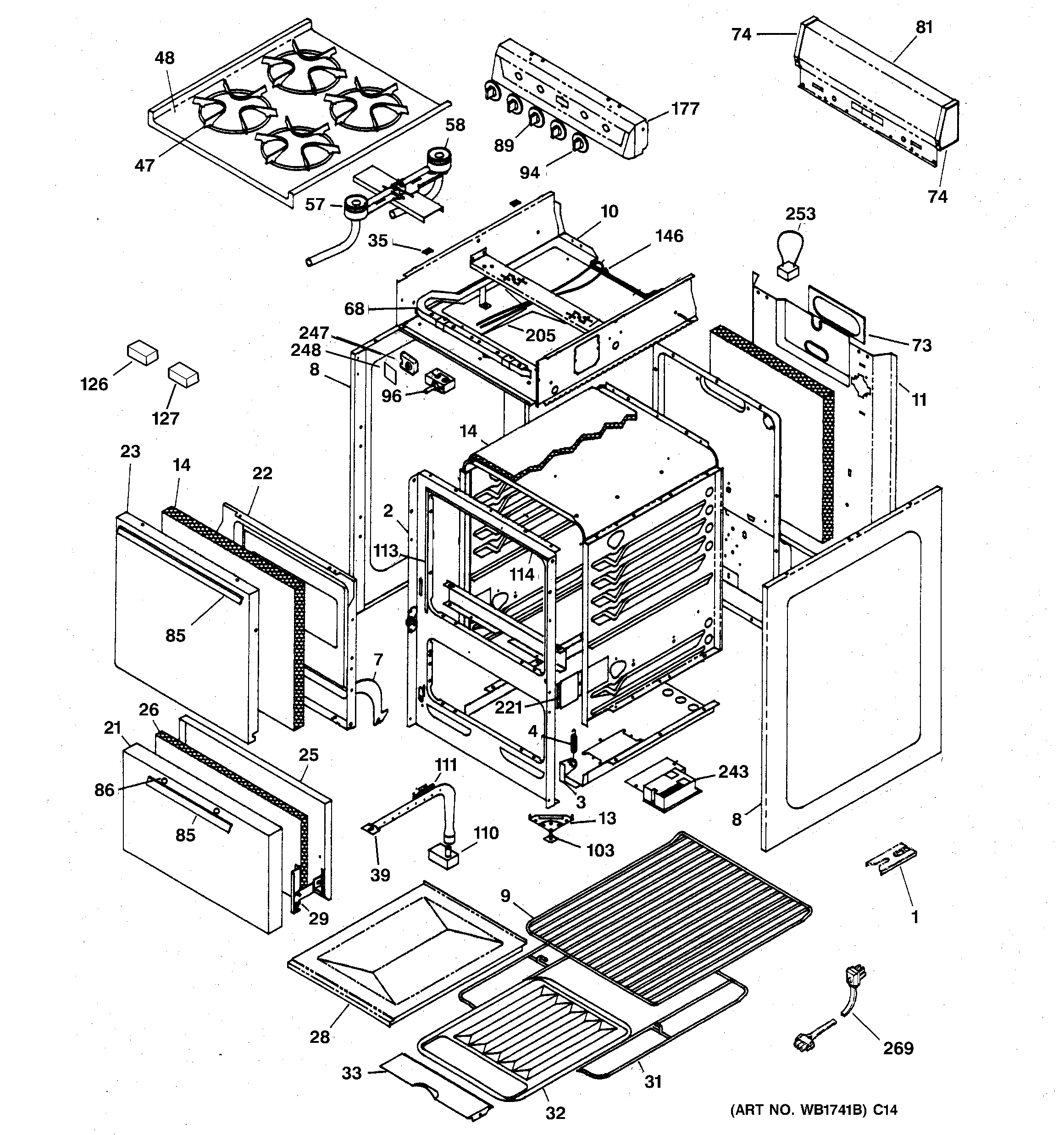

RGA524EW RANGE PARTS

Products

Position	Product
1	GEN WB02X8579
2	GEN WB56X7094
3	GEN WB02X7894
4	SPRING OVEN DOOR
7	GEN WB10X5220
7	GEN WB10X5221
8	SIDE, PANEL AD
8	SIDE, PANEL WH
9	GEN WB48X5113
10	GEN WB49X5587
11	GEN WB63X5246
13	GEN WB02X8532
13	GEN WB02X8533
13	GEN WB02X8534
14	GEN WB02X8585
21	GEN WB56X7092
21	GEN WB56X7093
22	LINING, OVEN DR
23	GEN WB56X7091
23	GEN WB56X7090
25	GEN WB55X5412
26	GEN WB02X8584
28	GEN WB39X5027
29	GEN WB10X5222
29	GEN WB10X5223
31	GEN WB48X5112
32	GEN WB49X5584
33	GEN WB49X5583
35	NYLON SPACER,TOP LOCATOR
39	GEN WB28X5048
47	GEN WB32X5110
48	GEN WB62X5475
48	GEN WB62X5476
57	GEN WB28X5047
58	GEN WB28X5049
68	GEN WB02X8545
73	GEN WB02X8549
74	GEN WB07X7041
74	GEN WB07X7040
81	GEN WB07X7360
81	GEN WB07X7361
85	GEN WB15X5185
86	SPACER HANDLE
89	GEN WB03X5856
94	GEN WB03X5857
96	GEN WB21X5343
103	GEN WB01X5789
110	GEN WB21X5344
110	GEN WB21X5345
111	GEN WB02X8544
113	GEN WB02X7891
114	GEN WB02X7892
126	GEN WB21X5350
126	GEN WB21X5352
127	GEN WB21X5351
146	GEN WB02X8586
177	GEN WB07X7363
177	GEN WB07X7362
205	GEN WB02X8550
221	COVER, SPRING
243	GEN WB20X5073
247	GEN WB21X5341
248	GEN WB21X5340
253	GEN WB02X8541
269	GEN WB18X10254
