RGA524EW6 RANGE PARTS – Aparts

RGA524EW6 RANGE PARTS

Products

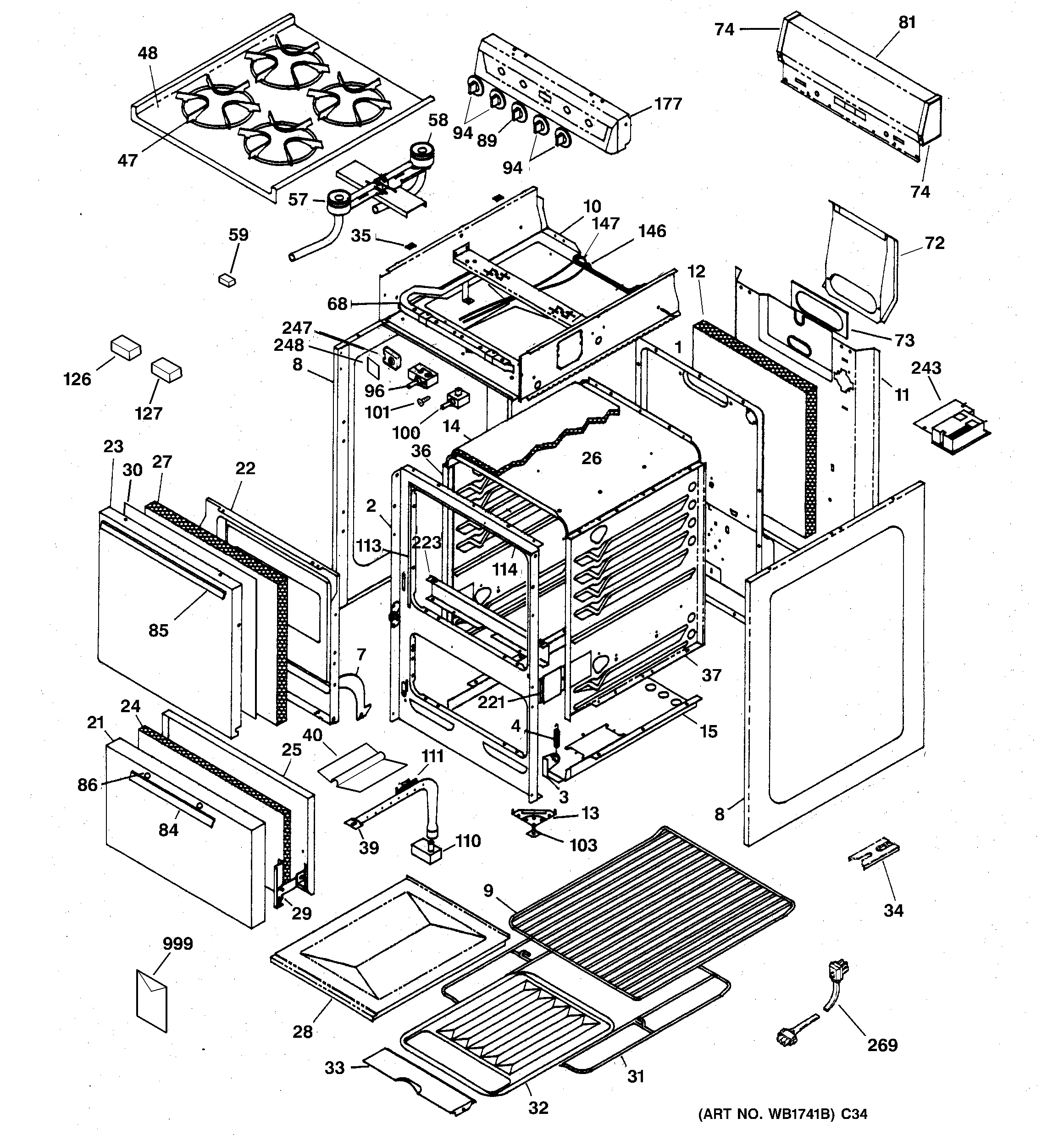

Position	Product
1	GEN WB02X10368
2	GEN WB56X7094
3	GEN WB02X7894
4	SPRING OVEN DOOR
7	GEN WB10X5220
7	GEN WB10X5221
8	SIDE, PANEL WH
8	GEN WB63X10053
9	GEN WB48X5112
10	GEN WB49X5587
11	GEN WB63X5246
12	GEN WB02X10367
13	GEN WB02X8533
13	GEN WB02X8532
13	GEN WB02X8534
14	GEN WB02X10369
15	GEN WB49X10009
21	GEN WB56X7093
22	LINING, OVEN DR
23	GEN WB56X10630
23	GEN WB56X10572
24	GEN WB02X8584
25	GEN WB55X5412
26	GEN WB53X10002
27	GEN WB55X10780
28	GEN WB39X10008
29	GEN WB10X5223
29	GEN WB10X5222
30	GEN WB02X11115
31	GEN WB48X5113
32	GEN WB49X5584
33	GEN WB49X5583
34	GEN WB02X8579
35	NYLON SPACER,TOP LOCATOR
36	GEN WB53X5161
37	GEN WB53X5362
39	GEN WB28X10022
40	GEN WB28X10023
47	GEN WB32X5110
48	GEN WB62X5476
48	GEN WB62X10044
57	GEN WB28X5047
58	GEN WB28X5049
59	GEN WB21X5339
68	GEN WB02X8545
72	GEN WB02X8548
73	GEN WB02X8549
74	GEN WB07X7041
74	GEN WB07X7040
81	GEN WB07X7361
81	GEN WB07X10910
84	GEN WB15X10180
85	GEN WB15X10170
86	SPACER HANDLE
89	GEN WB03X5856
94	GEN WB03X5857
96	GEN WB21X5343
100	GEN WB02X5346
101	GEN WB01X10314
103	GEN WB01X5789
110	GEN WB21X5345
111	GEN WB02X8544
113	GEN WB02X7891
114	GEN WB02X10574
126	GEN WB21X5350
126	GEN WB21X5352
127	GEN WB21X5351
146	GEN WB02X8586
147	GEN WB02X8547
177	GEN WB07X10911
177	GEN WB07X7363
221	COVER, SPRING
223	GEN WB02X8536
243	GEN WB20X10010
247	GEN WB21X5341
248	GEN WB21X5340
269	GEN WB18X10254
999	GEN 49-8760
