RGA720EK4WH BODY PARTS

RGA720EK4WH BODY PARTS

Written by

in

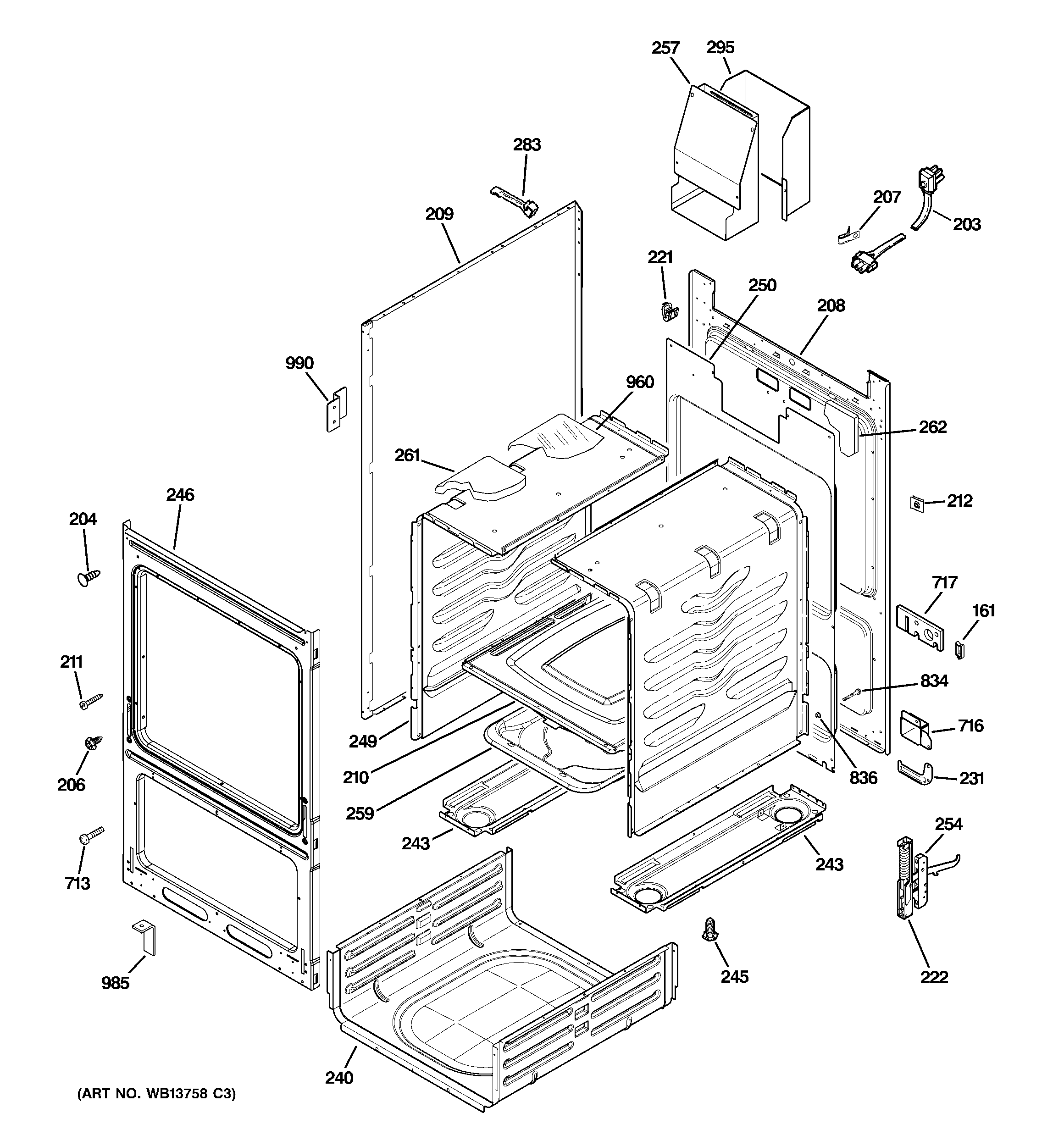

RGA720EK4WH BODY PARTS

Products

PositionProduct
161GEN WB02X7066
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WB1K84 GE Oven Screw and
204WB01K10091 GE Oven Screw
206WB1X5364 GE Oven Mounting Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10096
209WB63K10080 GE Oven Side Panel
210GEN WB63K10090
211WB1K5 GE Oven Screw 8-18 X B97
212GEN WB01X5743
221WB02K10073 GE Oven Clip Capillary
222WB10K10004 GE Oven Door Hinge Assembly
231WB02K10124 GE Oven Anti-Tip Arm
231WB2K20 GE Oven Bracket Assembly
240WB63K10089 GE Broiler Body
243WB63X29132 GE Gas Base Support Kit
245WB02K10126 GE Oven Level Screw
246GEN WB63K10070
249WB63K10075 GE Oven Side Assembly
250GEN WB63K10095
254WB10K10003 GE Oven Hinge Receptacle
257GEN WB38K10015
259GEN WB63K10099
262GEN WB35K10170
283WB02X21679 GE Oven Wire Clip
295GEN WB35K10078
713WB01K10057 GE Oven Screw
716WB63K10093 GE Safety Valve Cover
717WB35K10079 GE Oven Safety Valve Insulation
834WB01K10050 GE Hex Screw 1/4-20 X 2 3/16"
836GEN WB01K10051
960GEN WB35K10067
985WB02K10130 GE Oven Door Insulation Support
990GEN WB02K10131
